Panasonic Heating and Cooling CU-4KE24NBU
Panasonic Heating and Cooling CU-4KE24NBU
Hover to zoom
1 Of 5

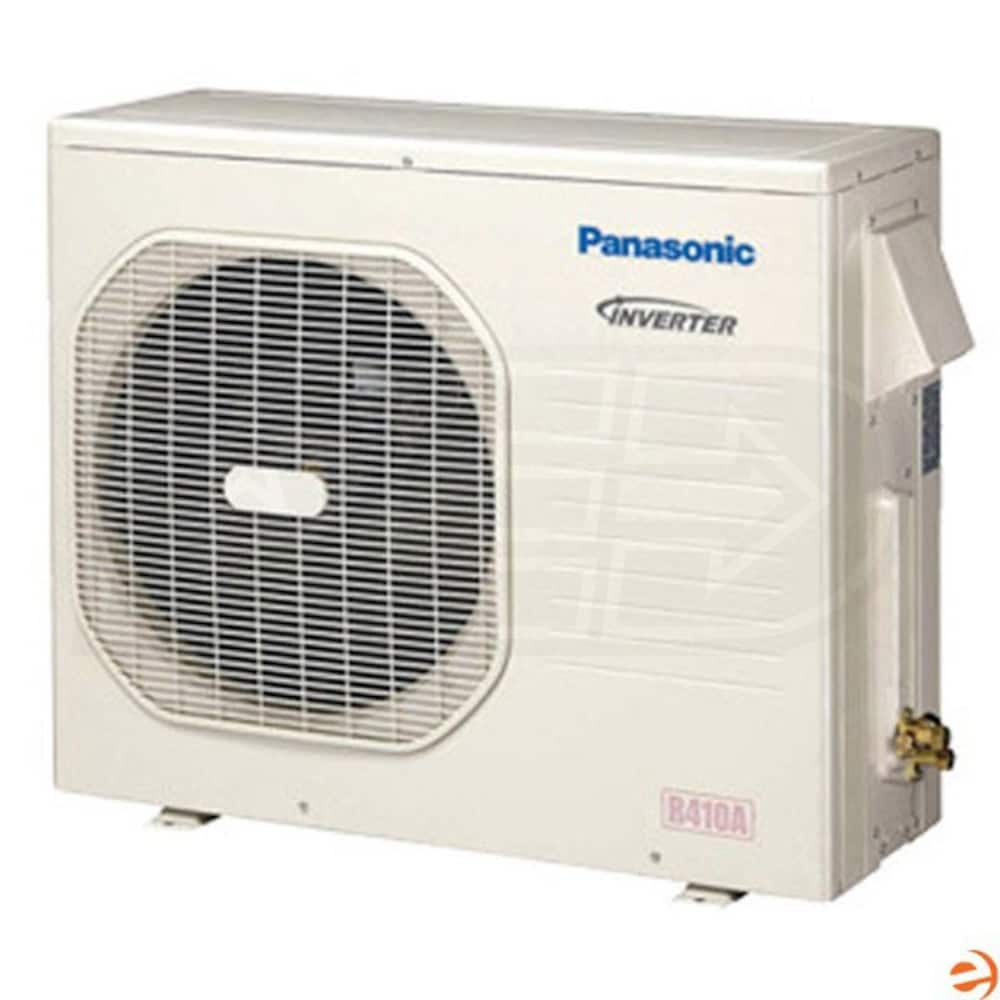

Panasonic CU-4KE24NBU Mini Split Outdoor Condenser Unit - 23,200 BTU

Model:

CU-4KE24NBU

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Panasonic CU-4KE24NBU Mini Split Outdoor Condenser Unit - 23,200 BTU
Panasonic CU-4KE24NBU Mini Split Outdoor Condenser Unit - 23,200 BTU
Model: CU-4KE24NBU
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    This product requires two or more compatible indoor units for functionality.

    Panasonic CU-4KE24NBU Mini Split Outdoor Condenser Unit - 23,200 BTU

    Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. The new 2012 line of Panasonic mini splits represents a step forward in both aesthetics and performance, allowing Panasonic to offer one of the top mini split lines on the market. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use.

    The CU-4KE24NBU Mini-Split air conditioner unit is a fine example of Panasonic's engineering aptitude. This 18,600 unit is guaranteed to meet any need a customer may have. Updated for new efficiency and environmental expectations, the Panasonic CU-4KE24NBU Outdoor Condenser Unit is guaranteed to meet all consumer expectations.

    Panasonic CU-4KE24NBU Outdoor Condenser Unit Features:
    • 18,600 BTU Capacity
    • Panasonic Engineering Quality and Experience
    • Outdoor Condenser
    • Environmentally Safe R-410A Refrigerant
    • Meets a Wide Variety of Air Quality Regulations
    Panasonic CU-4KE24NBU Outdoor Condenser Unit Warranty Information:
    • Parts Warranty: 5 years
    • Compressor Warranty: 7 years

    eComfort Note: The Panasonic CU-4KE24NBU Outdoor Condenser Unit is not a complete mini split system. It contains only the CU-4KE24NBU Outdoor Unit and requires a compatible Panasonic Mini Split Indoor Unit.

Specifications

CU-4KE24NBU
specs product image PID-23010
General Information
Type
Outdoor Condenser
Product Line
RAC
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
4
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Cooling Power Input
1950 Watts
Heating Power Input
2250 Watts
Minimum Sound Level
52 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
52 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
200 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
1/2 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Product Height
29 1/8 Inches
Product Width
35 7/16 Inches
Product Depth
12 29/48 Inches
Product Weight
143.3 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
