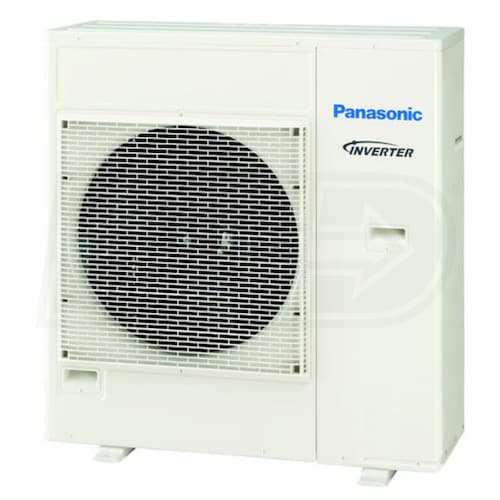

Panasonic - 36k BTU - Outdoor Condenser - For 2-5 Zones

Model:

CU-5E36QBU-5

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Panasonic - 36k BTU - Outdoor Condenser - For 2-5 Zones
Panasonic - 36k BTU - Outdoor Condenser - For 2-5 Zones
Model: CU-5E36QBU-5
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    This product requires two or more compatible indoor units for functionality.

    Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use. The CU-5E36QBU-5 mini split outdoor condenser is a perfect example of Panasonic's engineering aptitude. This 36,000 BTU condenser has the ability to connect anywhere from 2 to 5 indoor units. This is the perfect solution for dealing with limited outdoor space or if you don't want to clutter the exterior of your home.
    Product Features

    Cold Resistant
    The CU-5E36QBU-5 compressor can handle outdoor temperatures as low as -5 degrees Fahrenheit with consistent high performance. Panasonic uses the best cold-resistant components to prevent weather related issues.

    Inverter Technology
    Panasonic's inverter controls the power and makes operation extremely efficient by changing the power supply frequency. It is constantly adjusting the compressor rotation speed to provide the best performance at all times.

    Installation Flexibility
    Match virtually any building design with the long piping length this outdoor condenser has to offer. The CU-5E36QBU-5 can support 82 feet of line set per indoor unit and a total of 262 feet of line set per system.

Specifications

CU-5E36QBU-5
specs product image PID-75196
General Information
Type
Outdoor Condenser
Product Line
RAC Multi E
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
5
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
UPC
885170320598
Performance
Cooling BTU
36000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
45 Amps
Dimensions
Maximum Line Length
82 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Line Set E Liquid Connection
1/4 Inch
Line Set E Gas Connection
3/8 Inch
Product Height
39 17/48 Inches
Product Width
37 1/48 Inches
Product Depth
13 19/48 Inches
Product Weight
183 Pounds
Shipping Height
44 3/4 Inches
Shipping Width
42 5/16 Inches
Shipping Depth
19 43/48 Inches
Shipping Weight
201 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
