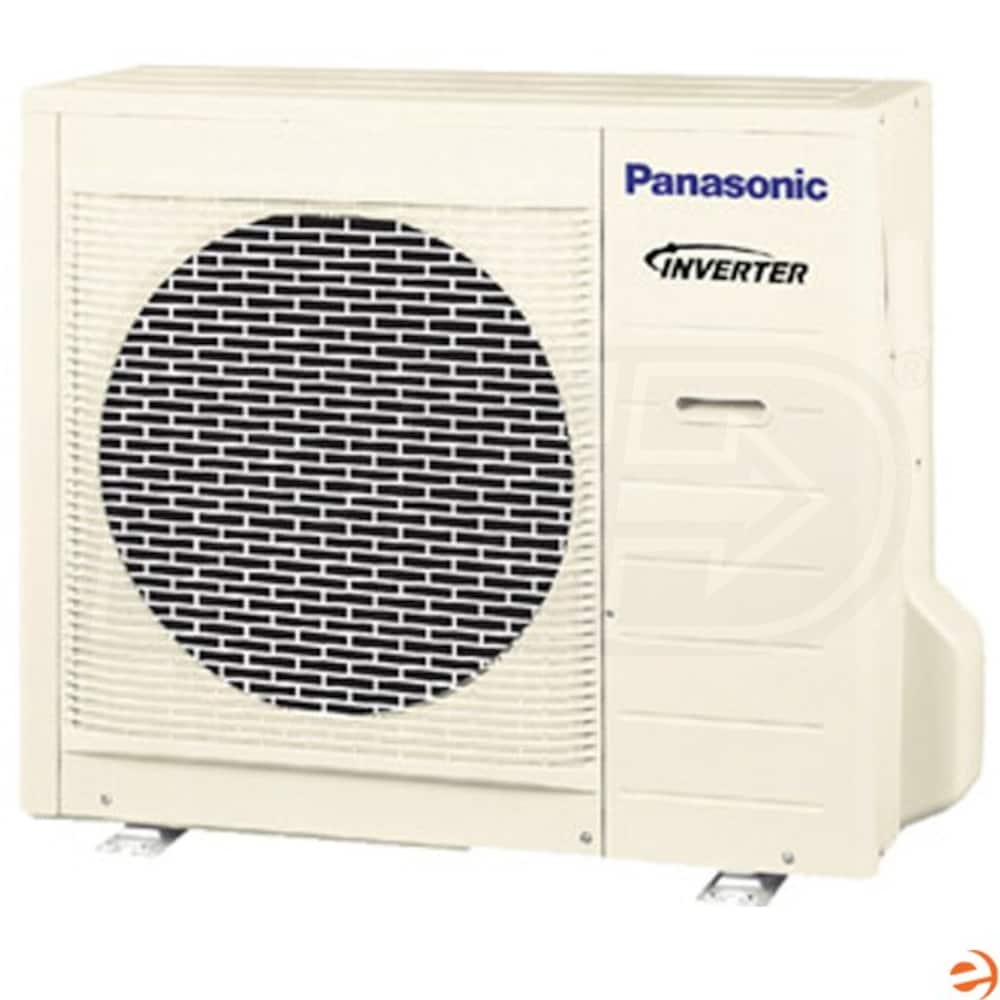

Panasonic CU-E12NKUA Mini Split Outdoor Condenser Unit - 11,900 BTU

Model:

CU-E12NKUA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Panasonic CU-E12NKUA Mini Split Outdoor Condenser Unit - 11,900 BTU
Panasonic CU-E12NKUA Mini Split Outdoor Condenser Unit - 11,900 BTU
Model: CU-E12NKUA
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Panasonic CU-E12NKUA Mini Split Outdoor Condenser Unit - 11,900 BTU

    Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. The new 2012 line of Panasonic mini splits represents a step forward in both aesthetics and performance, allowing Panasonic to offer one of the top mini split lines on the market. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use.

    The CU-E12NKUA Mini-Split air conditioner unit is a fine example of Panasonic's engineering aptitude. This 11,900 unit is guaranteed to meet any need a customer may have. Updated for new efficiency and environmental expectations, the Panasonic CU-E12NKUA Outdoor Condenser Unit is guaranteed to meet all consumer expectations.

    Panasonic CU-E12NKUA Outdoor Condenser Unit Features:
    • 11,900 BTU Capacity
    • Panasonic Engineering Quality and Experience
    • Outdoor Condenser
    • Environmentally Safe R-410A Refrigerant
    • Meets a Wide Variety of Air Quality Regulations
    Panasonic CU-E12NKUA Outdoor Condenser Unit Warranty Information:
    • Parts Warranty: 5 years
    • Compressor Warranty: 7 years

    eComfort Note: The Panasonic CU-E12NKUA Outdoor Condenser Unit is not a complete mini split system. It contains only the CU-E12NKUA Indoor Unit and requires a compatible Panasonic Mini Split Outdoor Unit.

Specifications

CU-E12NKUA
specs product image PID-23014
General Information
Type
Outdoor Condenser
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
11900
Moisture Removal
2.5 Pints/Hour
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
20
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.6
Cooling Power Input
1000 Watts
Heating Power Input
1300 Watts
Minimum Sound Level
48 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
48 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 7/24 Inches
Product Width
30 35/48 Inches
Product Depth
11 5/12 Inches
Product Weight
82 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
