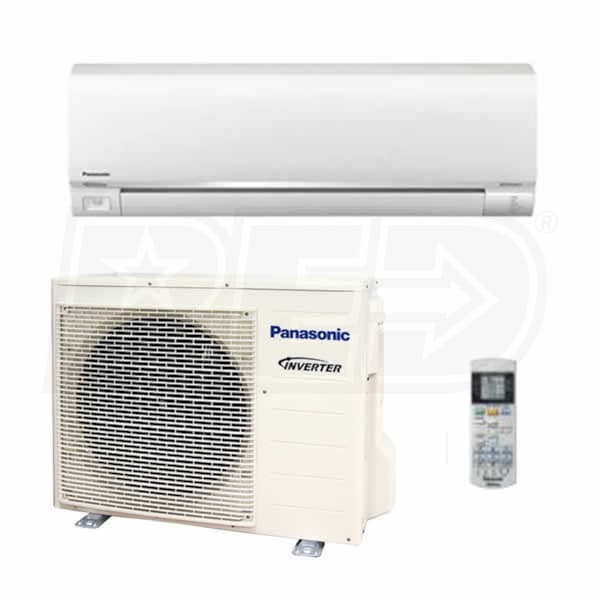

Panasonic - 9k BTU Cooling + Heating - Exterios E ECONAVI Wall Mounted Air Conditioning System - 23.0 SEER
Model:
E9RKUA
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- ECONAVI
- ECONAVI Intelligent Sensors detect unconscious waste of energy using the Human Activity Sensor and Sunlight Sensor. It is able to monitor human location and movements to determine if any extra power is necessary.
- Air Sweep Control
- This function controls the positions and movement of the louvers to direct the air in a sweeping motion, providing comfort in all parts of the room.
- Quiet Operation
- With the all new turbo fan and increased air path, the E9RKUA has reached one of the industry's lowest levels of noise.
- High Power Mode
- The unit will operate at maximum output for 30 minutes regardless of set temperature.
- Power Failure Automatic Restart
- Your preset programmed operation can be reactivated once power is restored after a power failure.
- Cold Resistant
- The E9RKUA compressor can handle outdoor temperatures as low as 0 degrees Fahrenheit with consistent high performance. Panasonic uses the best cold-resistant components to prevent weather related issues.
- Inverter Technology
- Panasonic's inverter controls the power and makes operation extremely efficient by changing the power supply frequency. It is constantly adjusting the compressor rotation speed to provide the best performance at all times.
- (1) Panasonic - 9k BTU - Exterios E Outdoor Condenser - Single Zone Only (CU-E9RKUA)
- (1) Panasonic 9k BTU Wall Mounted Unit - For Multi or Single-Zone (CS-E9RKUAW)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use. The E9RKUA mini split is a perfect example of Panasonic's engineering aptitude. Save energy with Panasonic's ECONAVI feature that monitors the room and maximizes the units efficiency.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Panasonic - 9k BTU - Exterios E Outdoor Condenser - Single Zone Only (CU-E9RKUA)
- (1) Panasonic 9k BTU Wall Mounted Unit - For Multi or Single-Zone (CS-E9RKUAW)
E9RKUA
General Information
Type
Wall Mounted
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
12000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
23.0
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
11.0
Cooling Power Input
650 Watts
Heating Power Input
1150 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
0 F
Dimensions
Product Weight
102 Pounds
Shipping Weight
109 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
CU-E9RKUA
General Information
Type
Outdoor Condenser
Product Line
Exterios E
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
9000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
48 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Maximum Line Length
65.6 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 13/48 Inches
Product Width
30 35/48 Inches
Product Depth
11 19/48 Inches
Product Weight
82 Pounds
CS-E9RKUAW
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Moisture Removal
1.3 Pints/Hour
Maximum Air Flow
455 CFM
Minimum Air Flow
425 CFM
Minimum Sound Level
20 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 7/16 Inches
Product Width
34 13/48 Inches
Product Depth
8 7/16 Inches
Product Weight
20 Pounds
Shipping Height
14 3/16 Inches
Shipping Width
37 13/16 Inches
Shipping Depth
9 43/48 Inches
Shipping Weight
22 Pounds
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
