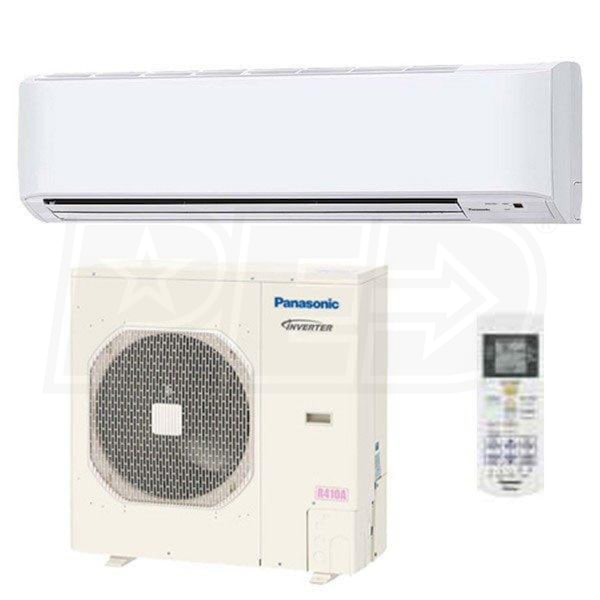

Panasonic - 30k BTU Cooling Only - Low Ambient Wall Mounted Air Conditioning System - 16.0 SEER
Model:
KS30NKUA
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
7
Model: UC2448-3
$77.00
In-Stock
Model: MSPLTKIT-385815
Length (ft)
$337.61
In-Stock
Model: MSCABLE144-25
$45.00
In-Stock
Model: DRAINTUBING-25
$28.00
In-Stock
$375.00
Only 1 In-Stock
$36.00
In-Stock
$105.62
In-Stock
Features
- 30,600 BTU Capacity
- Panasonic Engineering Quality and Experience
- Wall Mounted
- Environmentally Safe R-410A Refrigerant
- Meets a Wide Variety of Air Quality Regulations
- (1) CU-KS30NKUA Outdoor Condenser
- (1) CS-KS30NKU Wall Mounted Indoor Unit with Remote Control
- Parts Warranty: 5 years
- Compressor Warranty: 7 years
- Line Set - efficiently double insulated tubing that transfers refrigerant between indoor and outdoor units
- Drain Tubing - a tube that drains condensate from the indoor unit to the drain system or outside
- Connecting Wire - provides power from an Outdoor unit to the indoor Units
- Disconnect Box & Electrical Whip Kit - provides power for an Outdoor Unit
- Condenser Plastic Pad (optional) - designed as a mounting base for an outdoor units
- Wall Bracket (optional) - in case you need to mount an outdoor unit on the wall
Panasonic KS30NKUA Cooling Only Wall Mounted Ductless Ductless Air Conditioning System, Low Ambient - 30,600 BTU
Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. The new 2012 line of Panasonic mini splits represents a step forward in both aesthetics and performance, allowing Panasonic to offer one of the top mini split lines on the market. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use.
The KS30NKUA Mini-Split air conditioner system is a fine example of Panasonic's engineering aptitude. This 30,600 system is guaranteed to meet any need a customer may have. The efficiency offered by this system is incredibly high, allowing anyone to save money on energy bills. The indoor units look great in any home, a sleek and stylish addition to any living space. The outdoor units represent Panasonic's pinnacle in engineering skill, combining high efficiency and operating range with a low footprint. The Panasonic KS30NKUA Wall Mounted Ductless Air Conditioning System is an incredible addition to new or existing construction.
Panasonic KS30NKUA Wall Mounted Ductless Air Conditioning System Features:To complete the Panasonic KS30NKUA Wall Mounted Ductless Air Conditioning System, consider adding the following accessories that are required to complete every ductless air conditioning system installation to your order:
By adding the required accessories to the Panasonic KS30NKUA Wall Mounted Ductless Air Conditioning System you are receiving a complete solution completely ready for installation, so your contractor does not need to purchase required Panasonic Accessories to finish the installation.
Product Note
All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Panasonic - 30k BTU - Outdoor Condenser - Single Zone Only (CU-KS30NKUA)
- (1) Panasonic 30k BTU Wall Mounted Unit - For Single-Zone (CS-KS30NKU)
KS30NKUA
General Information
Type
Wall Mounted
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Performance
Cooling BTU
30000
Cooling Capacity
30600 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.3
Dimensions
Product Weight
160 Pounds
Shipping Weight
170 Pounds

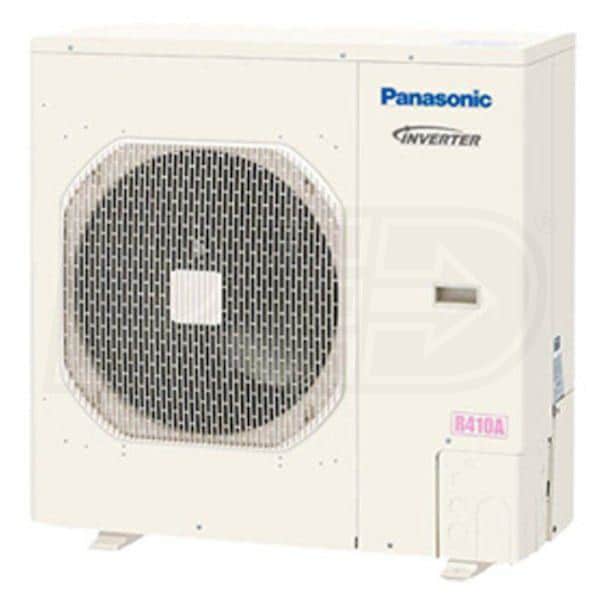

CU-KS30NKUA
General Information
Type
Outdoor Condenser
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
30000
Moisture Removal
9.57 Pints/Hour
Cooling Power Input
3290 Watts
Minimum Sound Level
55 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
35 Amps
Dimensions
Maximum Line Length
164 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
35 13/16 Inches
Product Width
37 1/24 Inches
Product Depth
13 3/8 Inches
Product Weight
128 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
CS-KS30NKU
General Information
Type
Wall Mounted
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Installation Location
Indoor
Performance
Cooling BTU
30000
Moisture Removal
9.57 Pints/Hour
Maximum Air Flow
630 CFM
Minimum Air Flow
412 CFM
Minimum Sound Level
39 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
11 3/16 Inches
Product Width
41 15/16 Inches
Product Depth
9 1/16 Inches
Product Weight
32 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
