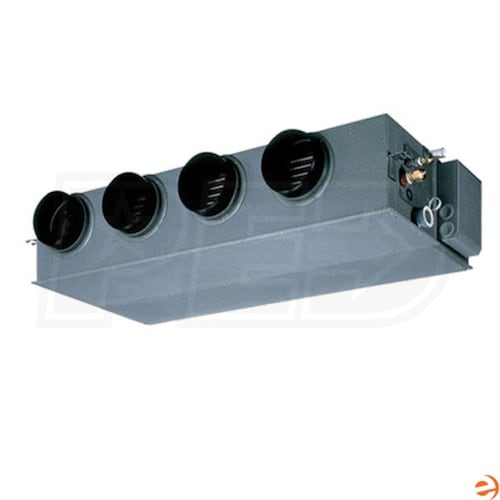

Panasonic S-36PF1U6 Mini Split Concealed Duct Indoor Unit - 31,200 BTU

Model:

S-36PF1U6

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Panasonic S-36PF1U6 Mini Split Concealed Duct Indoor Unit - 31,200 BTU
Panasonic S-36PF1U6 Mini Split Concealed Duct Indoor Unit - 31,200 BTU
Model: S-36PF1U6
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Panasonic S-36PF1U6 Mini Split Concealed Duct Indoor Unit - 31,200 BTU

    Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. The new 2012 line of Panasonic mini splits represents a step forward in both aesthetics and performance, allowing Panasonic to offer one of the top mini split lines on the market. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use.

    The S-36PF1U6 Mini-Split air conditioner unit is a fine example of Panasonic's engineering aptitude. This 31,200 unit is guaranteed to meet any need a customer may have. Updated for new efficiency and environmental expectations, the Panasonic S-36PF1U6 Concealed Duct Indoor Unit is guaranteed to meet all consumer expectations.

    Panasonic S-36PF1U6 Concealed Duct Indoor Unit Features:
    • 31,200 BTU Capacity
    • Panasonic Engineering Quality and Experience
    • Concealed Duct
    • Environmentally Safe R-410A Refrigerant
    • Meets a Wide Variety of Air Quality Regulations
    Panasonic S-36PF1U6 Concealed Duct Indoor Unit Warranty Information:
    • Parts Warranty: 5 years
    • Compressor Warranty: 7 years

    eComfort Note: The Panasonic S-36PF1U6 Concealed Duct Indoor Unit is not a complete mini split system. It contains only the S-36PF1U6 Indoor Unit and requires a compatible Panasonic Mini Split Outdoor Unit.

California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

S-36PF1U6
specs product image PID-23161
General Information
Type
Ducted
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
Installation Location
Indoor
Performance
Cooling BTU
36000
Cooling Capacity
36000 BTU
Moisture Removal
10 Pints/Hour
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
13.9
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
7.8
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.5
Cooling Power Input
3290 Watts
Maximum Air Flow
1060 CFM
Minimum Air Flow
750 CFM
Heating Power Input
3340 Watts
Minimum Sound Level
31 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
12 11/48 Inches
Product Width
58 7/24 Inches
Product Length
24 13/16 Inches
Product Weight
104 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
