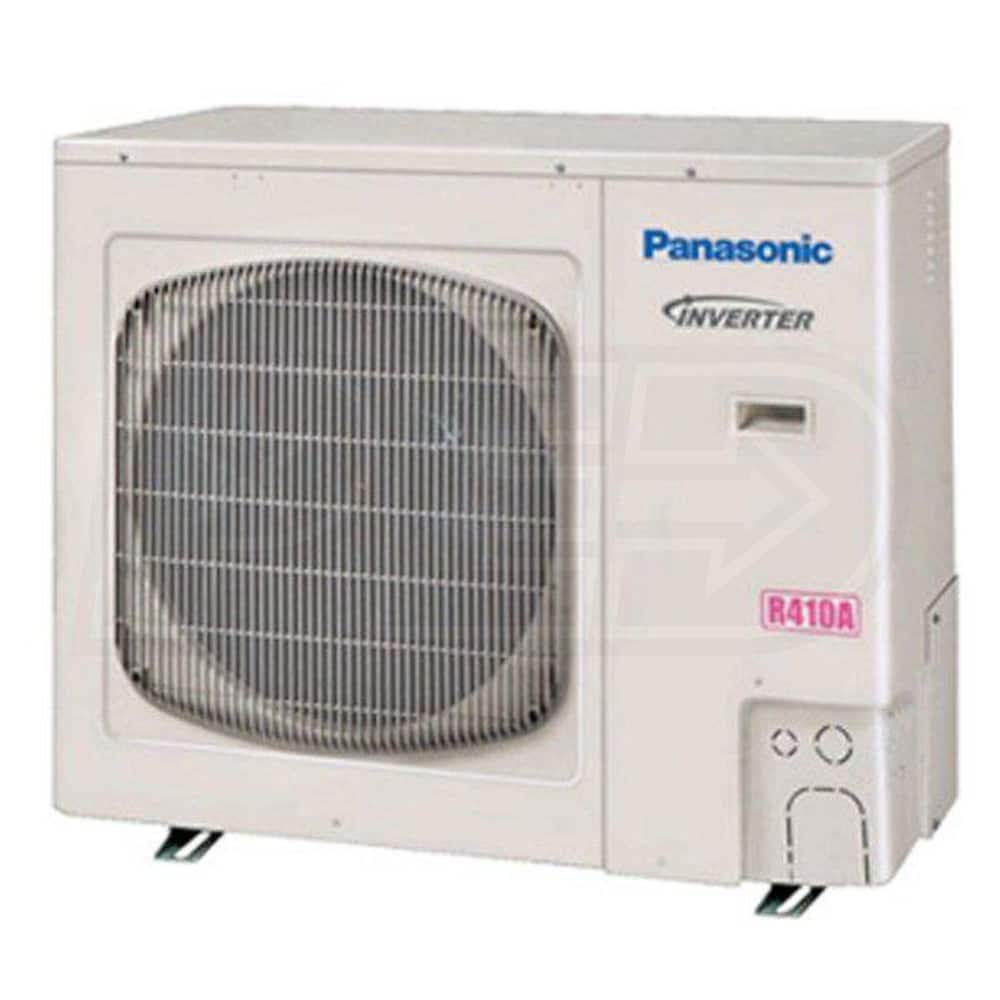

Panasonic Heating and Cooling U-36PE1U6
Panasonic Heating and Cooling U-36PE1U6
Hover to zoom
1 Of 5

Panasonic - 39k BTU - CAC Outdoor Condenser - Single Zone Only

Model:

U-36PE1U6

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Panasonic - 39k BTU - CAC Outdoor Condenser - Single Zone Only
Panasonic - 39k BTU - CAC Outdoor Condenser - Single Zone Only
Model: U-36PE1U6
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Panasonic U-36PE1U6 Mini Split Outdoor Condenser Unit - 39,000 BTU

    Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. The new 2012 line of Panasonic mini splits represents a step forward in both aesthetics and performance, allowing Panasonic to offer one of the top mini split lines on the market. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use.

    The U-36PE1U6 Mini-Split air conditioner unit is a fine example of Panasonic's engineering aptitude. This 39,000 unit is guaranteed to meet any need a customer may have. Updated for new efficiency and environmental expectations, the Panasonic U-36PE1U6 Outdoor Condenser Unit is guaranteed to meet all consumer expectations.

    Panasonic U-36PE1U6 Outdoor Condenser Unit Features:
    • 39,000 BTU Capacity
    • Panasonic Engineering Quality and Experience
    • Outdoor Condenser
    • Environmentally Safe R-410A Refrigerant
    • Meets a Wide Variety of Air Quality Regulations
    Panasonic U-36PE1U6 Outdoor Condenser Unit Warranty Information:
    • Parts Warranty: 5 years
    • Compressor Warranty: 7 years

    eComfort Note: The Panasonic U-36PE1U6 Outdoor Condenser Unit is not a complete mini split system. It contains only the U-36PE1U6 Indoor Unit and requires a compatible Panasonic Mini Split Outdoor Unit.

Specifications

U-36PE1U6
specs product image PID-23190
General Information
Type
Outdoor Condenser
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wired
Installation Location
Outdoor
UPC
8851700641190
Performance
Cooling BTU
39000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
52 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
35 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
30 35/48 Inches
Product Width
37 Inches
Product Depth
13 3/8 Inches
Product Weight
143 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
