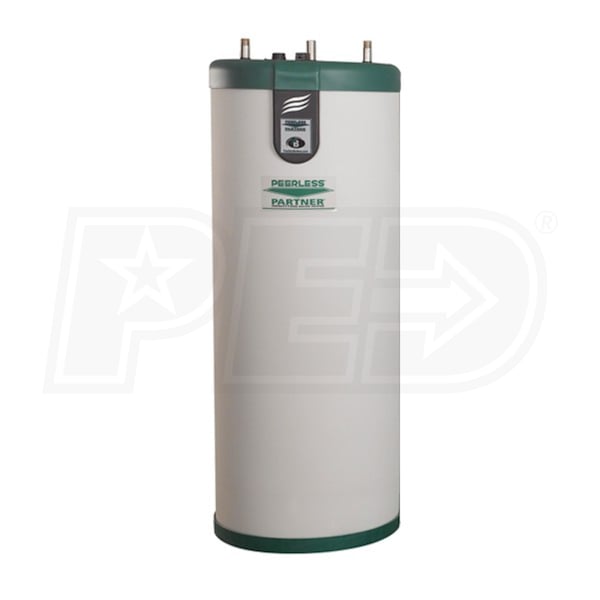

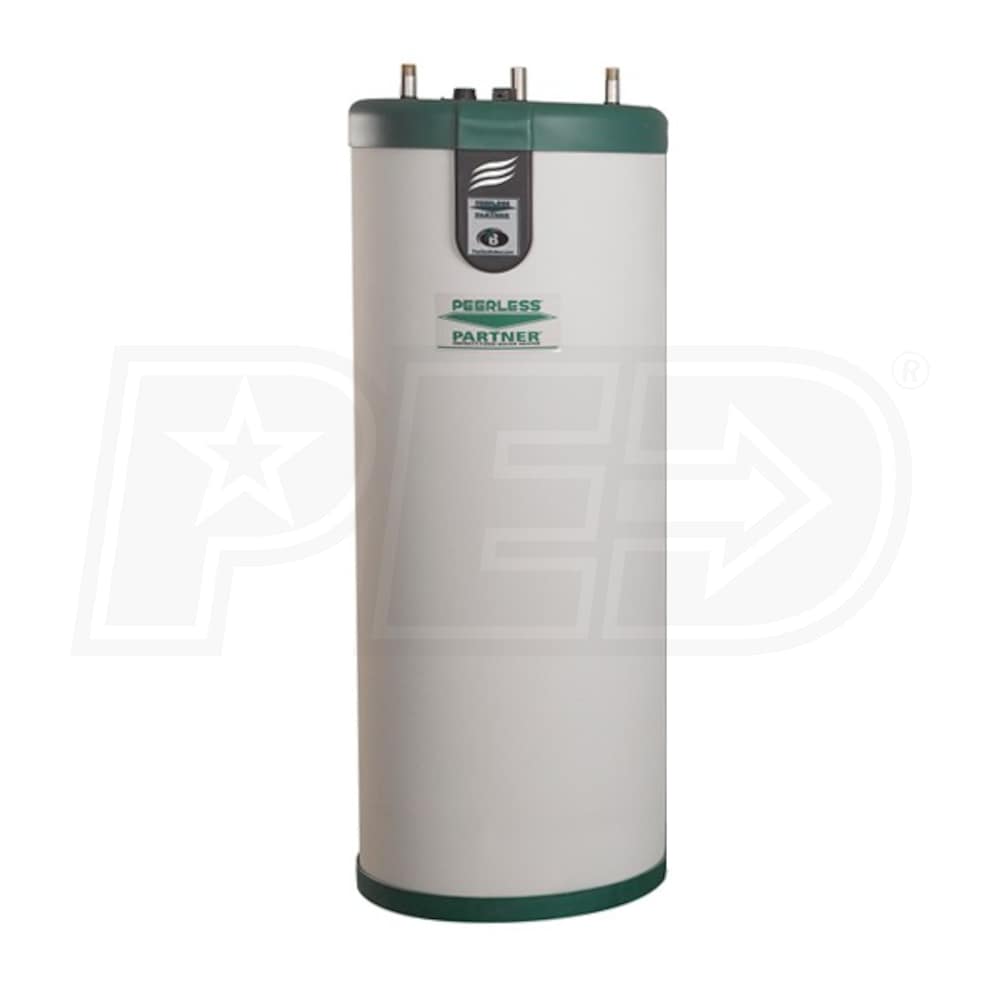

Peerless Partner - 119 Gallon - Indirect Fired Water Heater - Stainless Steel

Model:

PT-120

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Peerless Partner - 119 Gallon - Indirect Fired Water Heater - Stainless Steel
Peerless Partner - 119 Gallon - Indirect Fired Water Heater - Stainless Steel
Model: PT-120
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    For over a century Peerless has dedicated itself to making efficient, durable boilers. They have applied the same tenets to their line of Partner water heaters. The PT-120 indirect fired water heater has a 119 gallon, stainless steel tank, ready to provide hot water for every room in your home. Peerless Partner water heaters have two inches of insulation to keep your DHW supply toasty warm without consuming excess energy. Your water temperature is simple to manage through a dial on the front of the unit. The PT-120 is suited for many applications. Whether it is new construction, replacing existing equipment, or expanding your system, the Peerless Partner is a reliable addition to your home.

    Product Features

    Cupronickel Heat Exchanger
    The PT-120 has a cupronickel heat exchanger for transferring and supplementing heat. Cupronickel is naturally corrosion resistant, an important quality for preventing buildup and discoloration in your water supply. A finned-tube design provides maximum efficiency during the heat transfer process.

    Simplified Vent System
    Peerless Partner water heaters have a streamlined vent system. A single vent cap installs on the top of your PT-120 to provide safe, simple venting.

    Balanced Capacity
    Partner indirect fired water heaters have a greater recovery rate than gas-fired water heaters and a greater volume than similarly sized electric water heaters. Peerless believes that you should never have to worry about having enough hot water, and the design of PT-120 reflects that belief.

    Product Includes
    • (1) Peerless PT-120 Indirect Fired Water Heater
    • (1) Automatic Air Vent

Specifications

PT-120
specs product image PID-48932
General Information
Product Line
Partner
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Connection Type
NPT
Gas Conversion Kit
Not Convertible
Performance
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
828 Gallons
Continuous Recovery Rate
723 Gallons
Dimensions
Storage Volume
119 Gallons
Primary Vent Pipe Diameter
1/2 Inch
Cold Water Inlet
1 1/2 Inches
Hot Water Outlet
1 1/2 Inches
Supply Connection
2 Inches
Return Connection
2 Inches
Product Height
72 Inches
Product Width
32 Inches
Product Depth
32 Inches
Product Weight
479 Pounds
Shipping Height
86 1/2 Inches
Shipping Width
33 1/2 Inches
Shipping Depth
33 1/2 Inches
Shipping Weight
479 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
