ProSelect Force Boilers FORCE04ENRHG1
ProSelect Force Boilers FORCE04ENRHG1
Hover to zoom
1 Of 5

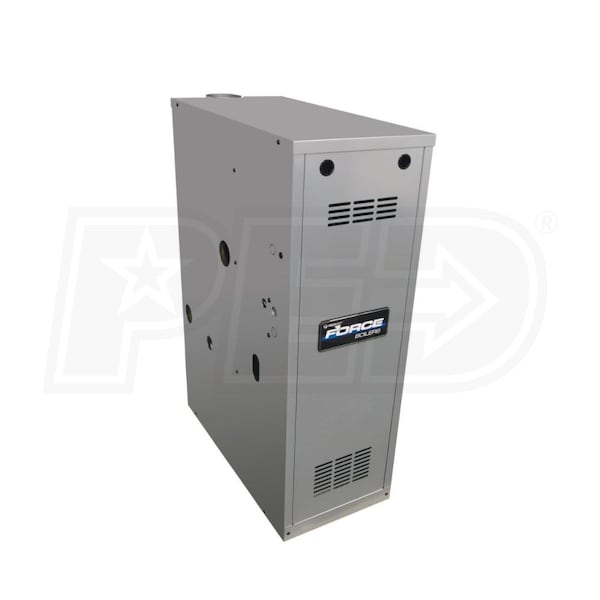

ProSelect® Force™ Boilers - 85k BTU - 84% AFUE - Hot Water Gas Boiler - Chimney Vent

Model:

FORCE04ENRHG1

Write A Review
$2,188.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Dec 27th
Shipping to60601
synchrony card logo
$365 / Month
Suggested monthly payments with 6 month financing.
ProSelect® Force™ Boilers - 85k BTU - 84% AFUE - Hot Water Gas Boiler - Chimney Vent
ProSelect® Force™ Boilers - 85k BTU - 84% AFUE - Hot Water Gas Boiler - Chimney Vent
Model: FORCE04ENRHG1
$2,188.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    ProSelect® Force™ boilers are high efficiency boilers available in a variety of sizes to fit your needs. With a design that can be piped from either side and drop-in installation for most applications, the ProSelect® Force™ hot water gas boiler is convenient to install. Featuring a Honeywell electronic ignition, the ProSelect® Force™ hot water boiler is safe and reliable.
  • ProSelect® Force™ Hot Water Gas Boiler Features
  • Can be piped from either side
  • Honeywell Electronic Ignition
  • Honeywell Gas Valve
  • Built-In Low Water Cut-off
  • Grundfos® Alpha 2™ circulator
  • Drop-in replacement for most installations
  • Limited Lifetime Warranty on Heat Exchanger
  • Product Note
    A high altitude conversion kit is required for installations made at altitudes above 5,400'.
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

FORCE04ENRHG1
specs product image PID-111068
Overview
Product Category
Boiler
General Information
Product Line
Force
Product Category
Boiler
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Mount Type
Floor
Maximum Altitude
2000 Feet
Assembly Type
Packaged
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
84.0 %
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
102000 BTU
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
85000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
74000 BTU
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
5 Inches
Gas Connection Size
1/2 Inch
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
40 Inches
Product Width
16 Inches
Product Weight
231 Pounds
Shipping Weight
304 Pounds
Certifications
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
202901893
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Limited Lifetime Years
