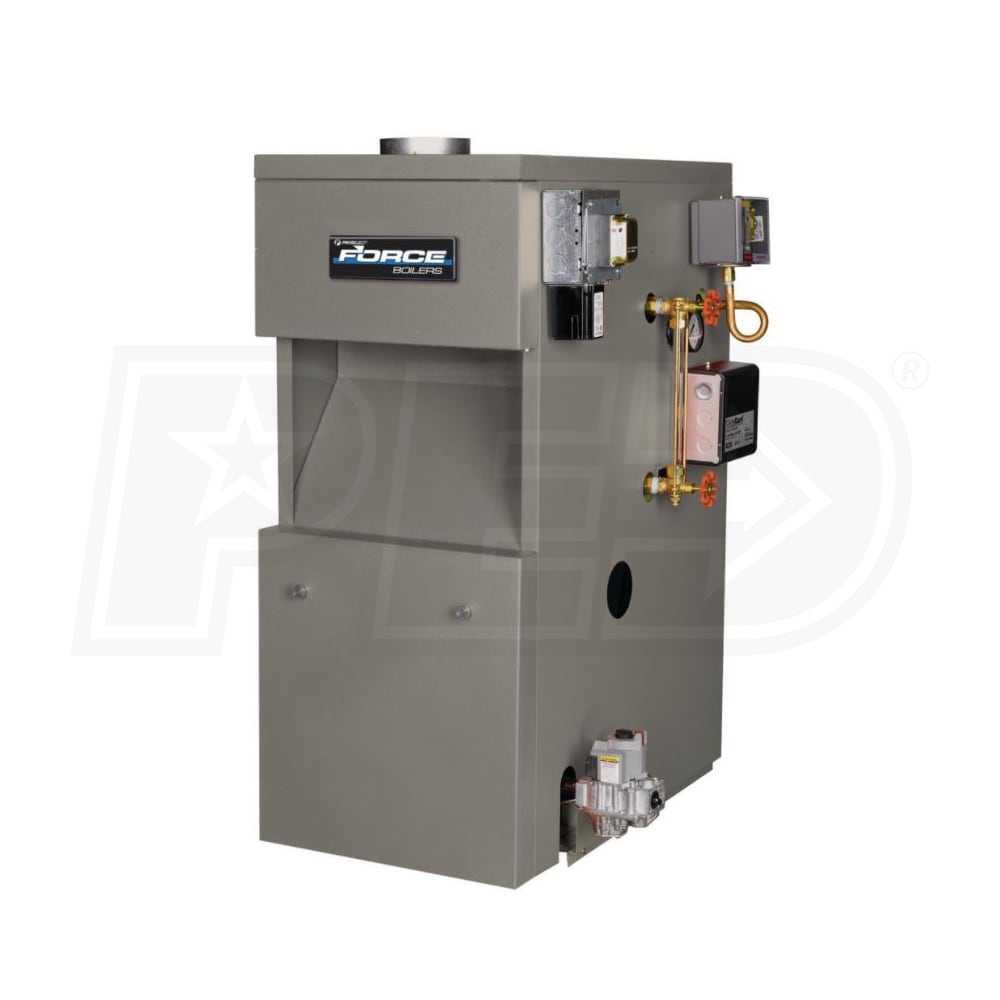

ProSelect® Force™ Boilers - 107k BTU - 82.1% AFUE - Steam Gas Boiler - Chimney Vent

Model:

FORCESTEAM06NH

Write A Review
$3,756.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 25th
Shipping to60601
synchrony card logo
$66 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
ProSelect® Force™ Boilers - 107k BTU - 82.1% AFUE - Steam Gas Boiler - Chimney Vent
ProSelect® Force™ Boilers - 107k BTU - 82.1% AFUE - Steam Gas Boiler - Chimney Vent
Model: FORCESTEAM06NH
$3,756.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    ProSelect® Force™ boilers are high efficiency boilers available in a variety of sizes to fit your needs. The ProSelect® Force™ steam gas boiler features an electronic ignition, making it safe and reliable. The built-in draft diverter allows the boiler to be installed in low spaces. The heavy duty ProSelect® Force™ steam gas boiler comes fully assembled with a cast iron heat exchanger. With metal section connectors that resist rust, the life of the boiler is increased.
  • ProSelect® Force™ Steam Gas Boiler Features
  • Fully Assembled
  • Electronic Ignition
  • Built-In Draft Diverter
  • Cast Iron Heat Exchanger
  • Honeywell Gas Valve
  • Metal section connectors
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FORCESTEAM06NH
specs product image PID-111063
Overview
Product Category
Boiler
General Information
Product Line
Force
Product Category
Boiler
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Assembly Type
Packaged
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
82.1 %
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
172000 BTU
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
142000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
107000 BTU
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Supply Connection
2 Inches
Return Connection
2 Inches
Product Height
40 7/16 Inches
Product Width
22 1/2 Inches
Product Depth
28 Inches
Shipping Weight
555 Pounds
Certifications
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
8330181
Warranty Information
Heat Exchanger Warranty
10 Years
