RectorSeal - RSH™-50 VRMDC Kit - Surge Protection and VRM with Disconnect
Model:
RSH-50 VRMDC KIT
+
Share This Product
Features
- Intuitive Display
- The RSH-VRM60A voltage range monitor has a user-friendly control with easy-to-read LCD digital display that includes dual red and green LED diagnostics indicators.
- Auto Cutoff Delay
- The range for the over-under voltage cutoff delay can be adjusted from 0.5 to 60 seconds.
- Auto Restore Delay
- The range for the load restore delay can be adjusted from 1 to 600 seconds.
- Internal Memory
- With the internal memory in the RSH-VRM60A voltage range monitor, all settings are saved when power is lost. It also has the capacity to store up to 300 events.
- Magnetic Latching Relays
- The RSH-VRM60A voltage range monitor is powered by cutting edge magnetic latching relays to provide maximum reliability.
- Easy Setup
- With a 35mm snap-on din-rail receiver, the RSH-VRM60A voltage range monitor can easily be mounted. It can also be field programmed without the need for a laptop or programming tool.
- Disconnect Breaker
- The RSH™-50 VRMDC Kit comes with a 60A disconnect breaker that ensures efficient power disconnection for maintenance or emergency situations.
- LED Light
- The RSH-50 surge pretector has a green LED light that indicates the system is being protected.
- TFMOV Technology
- Featuring TFMOV (Thermally Fused Metal Oxide Varistor) technology, the RSH-50 surge pretector protects your HVAC equipment from over voltage surges.
- Gas Discharge Tube Technology
- Featuring long-lasting gas discharge tube technology, the RSH-50 surge pretector dissipates large amounts of energy reducing the risk of equipment damage.

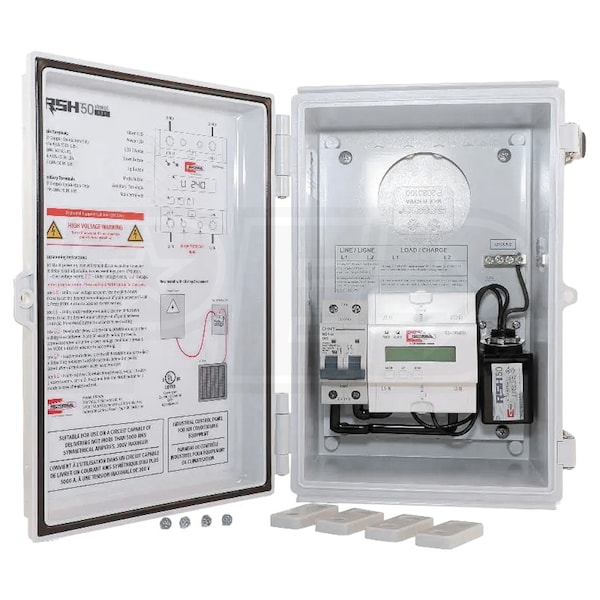

- Product Includes
- RSH-50 Surge Protector
- VRM60A Voltage Range Monitor
- 60A Disconnect Breaker
- NEMA 3R/IP66 Enclosure
- Enhanced Warranty
- If equipment connected to the surge protection device is damaged due to a surge protector failure during a surge event, Rectorseal will repair or replace the connected equipment at their discretion. See Warranty under Manuals.
The RectorSeal RSH™-50 VRMDC Kit is designed to protect air conditioners and heat pumps from electrical surges and brownouts. It protects up to 60,000 amps of single surges. With the VRM60A, the RSH™-50 VRMDC Kit protects the equipment from over and under voltage conditions that can damage circuit boards and motors. It also offers full programmability allowing users to set a voltage cutoff range between 90V and 300V. The RSH-50 surge protector and voltage range monitor are housed with a 60A disconnect breaker in a NEMA 3R/IP66 enclosure making it weather resistant. The RSH™-50 VRMDC Kit is a great solution to keep your HVAC equipment safe from electrical surges and voltage disturbances.
Specifications
RSH-50 VRMDC KIT
General Information
Type
Surge Protector
Product Category
Mini Split Accessories
Surge Protection Device Type
1
Electrical Data
Voltage
120-240 Volts
Phase
1
Frequency
60 Hz
Nominal Discharge Current
10000 Amps
Short Circuit Current Rating
200000 Amps
Certifications
UL Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
