Features
- LED Light
- The 96419 has a green LED light that indicates the system is being protected.
- TFMOV Technology
- Featuring TFMOV (Thermally Fused Metal Oxide Varistor) technology, the 96419 protects your HVAC equipment from over voltage surges.
- Weather-Rated
- The 96419 is NEMA 4 rated making it weather resistant and able to withstand outdoor UV levels.
- Gas Discharge Tube Technology
- Featuring long-lasting gas discharge tube technology, the 96419 dissipates large amounts of energy reducing the risk of equipment damage.

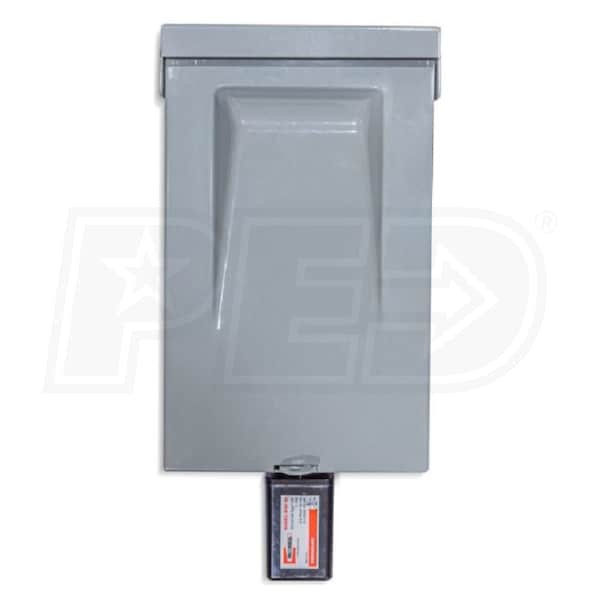

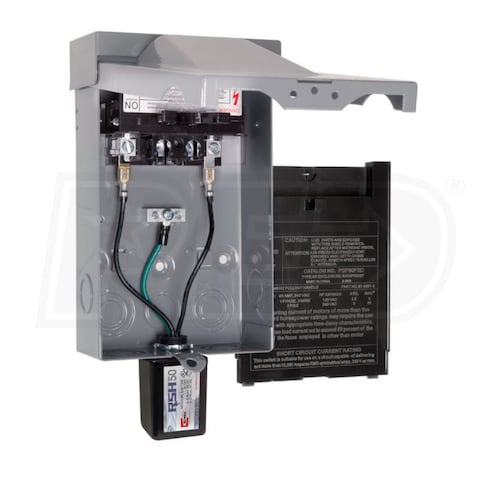

The RectorSeal Disconnect Box is designed to protect air conditioners, heat pumps and ductless mini split systems from surges and brownouts. It protects up to 50,000 amps of single surges and 10,000 amps of repetitive surges.
Specifications
96419
General Information
Type
Disconnect Switch
Product Category
Mini Split Accessories
Surge Protection Device Type
1
UPC
021449964197
Electrical Data
Voltage
120-240 Volts
Phase
1
Frequency
60 Hz
Maximum Load
60 Amps
Nominal Discharge Current
10000 Amps
Short Circuit Current Rating
200000 Amps
Dimensions
Product Height
4 19/48 Inches
Product Width
1 5/8 Inches
Product Depth
1 5/8 Inches
Product Weight
2.2 Pounds
