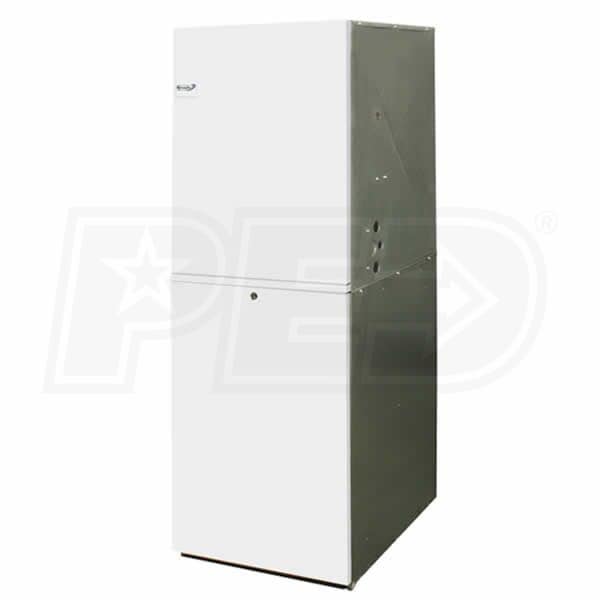

Revolv E7 - 35k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 10 kW - Upflow - Multi-Speed - Includes Coil Cabinet
Model:
E7EU-010
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Multi-Speed ECM Motor
- The E7EU energy efficient blower motor uses the lowest speed it can to deliver precise temperature control for your home while keeping utility bills to a minimum.
- Nichrome Heating Elements
- Revolv electric furnaces feature nichrome heating elements, designed to provide long lasting, efficient heating without breaking the bank.
- Built in Coil Cabinet
- The Revolv E7EU models come with a coil cabinet built into the unit. This means they are ready for installation without the need to buy additional parts.
- Multiple Cooling Choices
- E7EU models can be paired with either air conditioners or heat pumps and can handle up to a maximum of 4 tons of cooling.
- High Quality, Low Maintenance
- Features such as sealed bearings on the motors, reliable controllers, and a built-in circuit breakers means these units are made to last and provide uninterrupted comfort for years.
Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The E7EU-010 is a upflow electric furnace capable of providing 35,000 BTU of heating at 100% efficiency. Designed for easy installation in a variety of manufactured and modular homes, it enjoys a 0" required clearance to combustibles at the rear and sides. Service clearance of only 6" are required at the front of the unit, if installed in a closet or 18" in an alcove. This model includes a built-in coil cabinet. If you're struggling to effectively and safely heat your manufactured home, the E7EU-010 is a solution that you can believe in.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
E7EU-010
Overview
Product Category
Furnace
UPC
663132372720
General Information
Type
Electric Furnace
Product Line
E7EU
Product Category
Furnace
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Type
ECM Multi-Speed
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow
Performance
Heating BTU
31000
Electric Heat Capacity
9.2 kW
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
73 Hz
Minimum Circuit Ampacity
49.9 Amps
Recommended Breaker Size
50 Amps
Dimensions
Product Height
60 5/8 Inches
Product Width
20 Inches
Product Depth
24 1/2 Inches
Shipping Weight
112 Pounds
