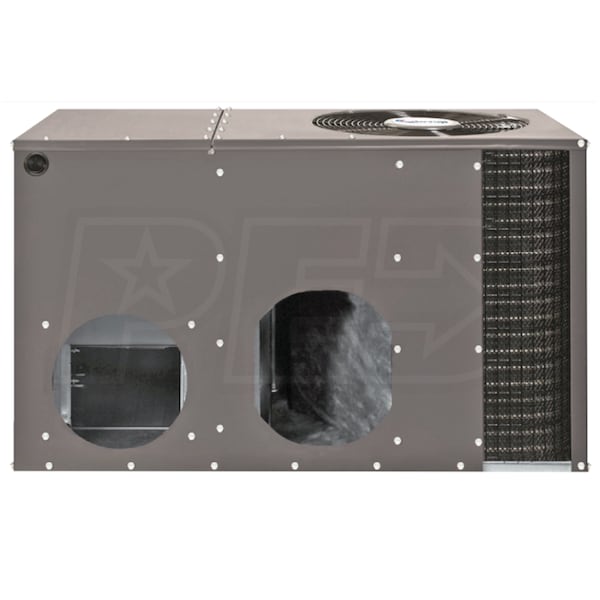

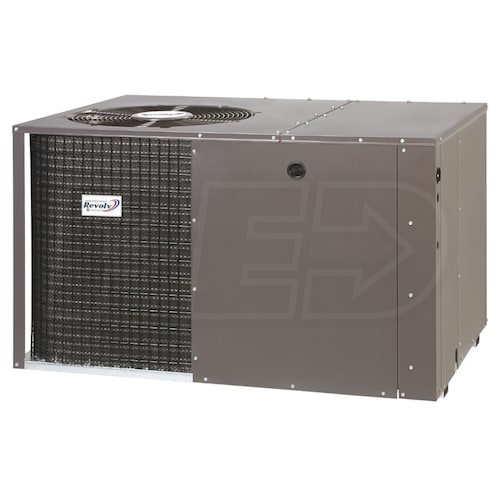

Revolv - 4.0 Ton Cooling - Packaged Air Conditioner - Manufactured Home - 13.4 SEER2 - Horizontal
Model:
RP94RD-048K
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Long Compressor Life
- Revolv packaged units come with a state of the art compressor with a built-in hi/low pressure switch to ensure a long lasting and efficient compressor.
- Compact Footprint
- With its compact footprint, Revolv packaged units fit even the most aggressive lot lines, allowing for easy transportation and installation.
- Easy Service Access
- With convenient access to control components, compressor, evaporator coil and indoor blower, service on Revolv packaged units is simple.
- Micro-Channel Coils
- All aluminum coils deliver optimized heat transfer, reduce refrigerant volume, minimize footprint and resist corrosion, resulting in an extended service life.
- ECM Motor
- The Revolv RP94RD features an energy efficient, fixed torque ECM motor with five speeds.
- Heavy Duty
- Featuring a galvanized steel frame, the Revolv packaged unit's finish passes 950 hours of salt spray testing. The powder coated wire guard and mesh hail guard will never rust and protect the unit's coil from damage.
Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The Revolv RP94RD combines everything you will need for whole home cooling in one convenient package. These 13.4 SEER2 systems are designed specifically for manufactured and mobile homes as they feature a compact footprint and profile to fit into any environment. The Revolv RP94RD is built with a galvanized steel frame and features micro-channel coils to ensure peak performance for years to come. With features like a raised base pan to drain water away from the unit and easy access to the coil and blower, the Revolv RP94RD makes maintenance and repair simple. Pair it with an optional electric heat kit to provide whole home heating as well.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RP94RD-048K
General Information
Type
Air Conditioner Packaged Unit
Product Line
RP
Product Category
Packaged HVAC Unit
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Blower Type
Blower Type
Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
ECM Multi-Speed
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
UPC
663132448456
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Cooling BTU
46000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
76 dB
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
13.4
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
10.6
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
41.8 Amps
Recommended Breaker Size
60 Amps
Dimensions
Product Height
30 5/24 Inches
Product Width
49 Inches
Product Length
35 Inches
Product Weight
304 Pounds
Shipping Weight
304 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
208592736
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
