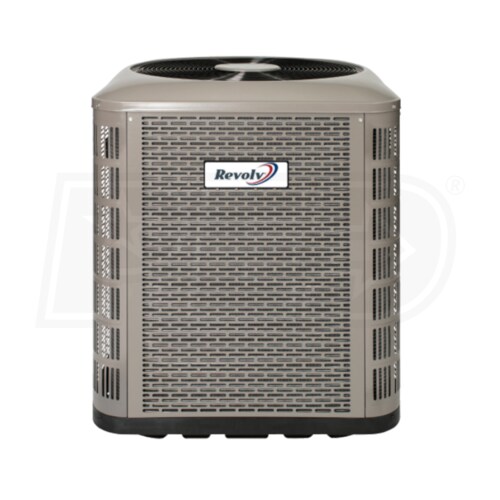

Revolv AccuCharge® 3.5 Ton - Air Conditioner - Manufactured Home - 14.3 SEER2 - Single-Stage - R-410a Refrigerant
Model:
RSA3QE4M1SN42
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features

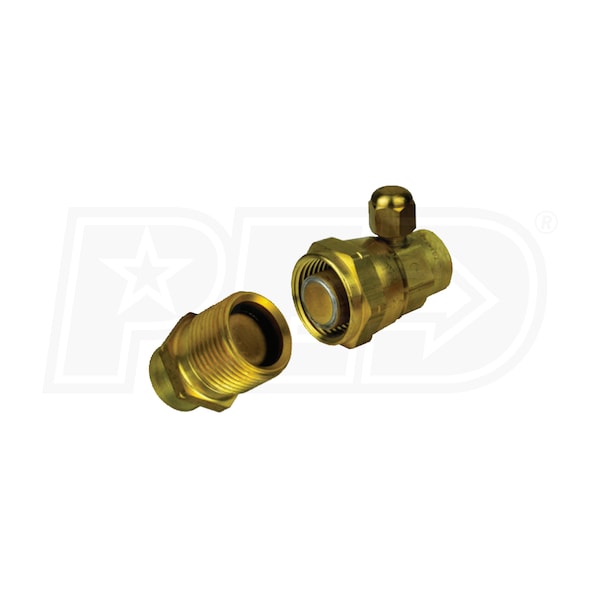

- AccuCharge® with FitRight® Fittings
- All AccuCharge® units come with a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The combination of the two are engineered for superior efficiency and reliability.
- Corrosion Resistant Finish
- The Revolv AccuCharge® air conditioners are made out of a galvanized steel with a powder coated paint, creating a durable and corrosion resistant finish.
- Composite Base Pan
- A composite base pan is stronger and lighter than your standard steel base pan. Being composite, it absorbs sound better and is also corrosion resistant.
- High Pressure Switch
- The AccuCharge® air conditioners come with a high pressure switch that protects your unit against unsafe high system pressures. It has an auto-reset feature that prevents unnecessary service visits.
- Condenser Guard
- The RSA3QE4M1SN42 has a durable, powder coated metal guard and mesh hail guard that protect the coil from extreme weather or objects hitting it and damaging your unit.
- Micro-Channel Coils
- All of the Revolv models have all highly corrosion-resistant aluminum coils, minimizing refrigerant charge and cost.
- Designed for Manufactured Housing
- Featuring quick connect fittings and charged with refrigerant for 20 feet of lineset, the RSA3QE condenser simplifies your installation.
- Filter Drier
- The Revolv RSA3QE models have a factory installed liquid line filter drier to trap moisture and particulates.
Revolv is all about delivering easier installation, improved energy efficiency, and long lasting performance. What makes Revolv stand out against the rest is its complete AccuCharge® system that delivers a factory precise refrigerant charge so that installers aren't forced to spend hours balancing out the system. All Revolv systems also come with FitRight® fittings that give you a quick easy installation process. If you're looking for a reliable, efficient unit then the Revolv AccuCharge® air conditioner is for you.
Product Note
The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help. This unit requires a AccuCharge® with FitRight® Fittings lineset. Please see the Accessories Tab.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RSA3QE4M1SN42
General Information
Type
Condenser
Product Line
AccuCharge
Product Category
Air Conditioning Condensers
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Connection Type
AccuCharge
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
UPC
663132442485
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Cooling BTU
42000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
79 dB
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
14.3
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
11.7
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
40 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
41 1/4 Inches
Product Width
31 3/4 Inches
Product Depth
31 3/4 Inches
Shipping Weight
204 Pounds
Certifications
AHRI Certified
Yes
