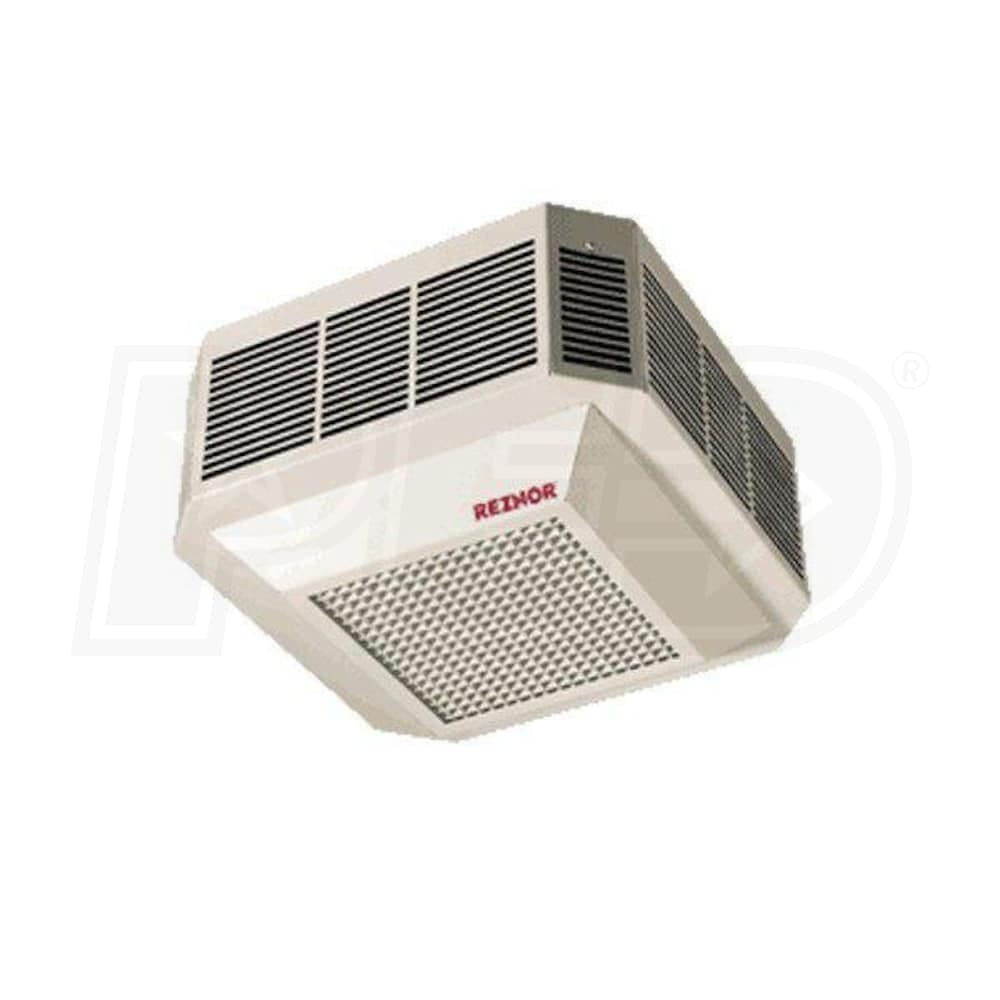

Reznor 34,144 BTU 10 kW Ceiling Mount Electric Heater 240V 3 Phase

Model:

ECS-10-AK6E

Recommended
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Reznor 34,144 BTU 10 kW Ceiling Mount Electric Heater 240V 3 Phase
Reznor 34,144 BTU 10 kW Ceiling Mount Electric Heater 240V 3 Phase
Model: ECS-10-AK6E
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Overview for Reznor ECS-10-AK6E

    Reznor ECS-10-AK6E 34,144 BTU 10 kW Ceiling Mount Electric Heater 240V 3 Phase.
  • Reznor ECS-10-AK6E Features
  • Three stainless steel tubular heating elements with aluminum fins
  • Epoxy/polyester powder paint
  • High-limit temperature control with automatic reset
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

ECS-10-AK6E
specs product image PID-46031
Overview
Product Category
Unit Heater
Additional Model Numbers

ECS-10-AK6E, ECS-10-AK6E

General Information
Type
Standard
Product Line
ECS
Product Category
Unit Heater
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Vertical
Mount Type
Ceiling
Performance
Heating Capacity
34144 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
34144 BTU
Heating Capacity (kW)
10 kW
Maximum Air Flow
700 CFM
Minimum Air Flow
700 CFM
Electrical Data
Voltage
240 Volts
Phase
3
Frequency
60 Hz
Current Draw
24.08 Amps
Dimensions
Product Height
8 1/2 Inches
Product Width
22 5/16 Inches
Product Depth
22 5/16 Inches
Product Weight
34 Pounds
Shipping Weight
44 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
