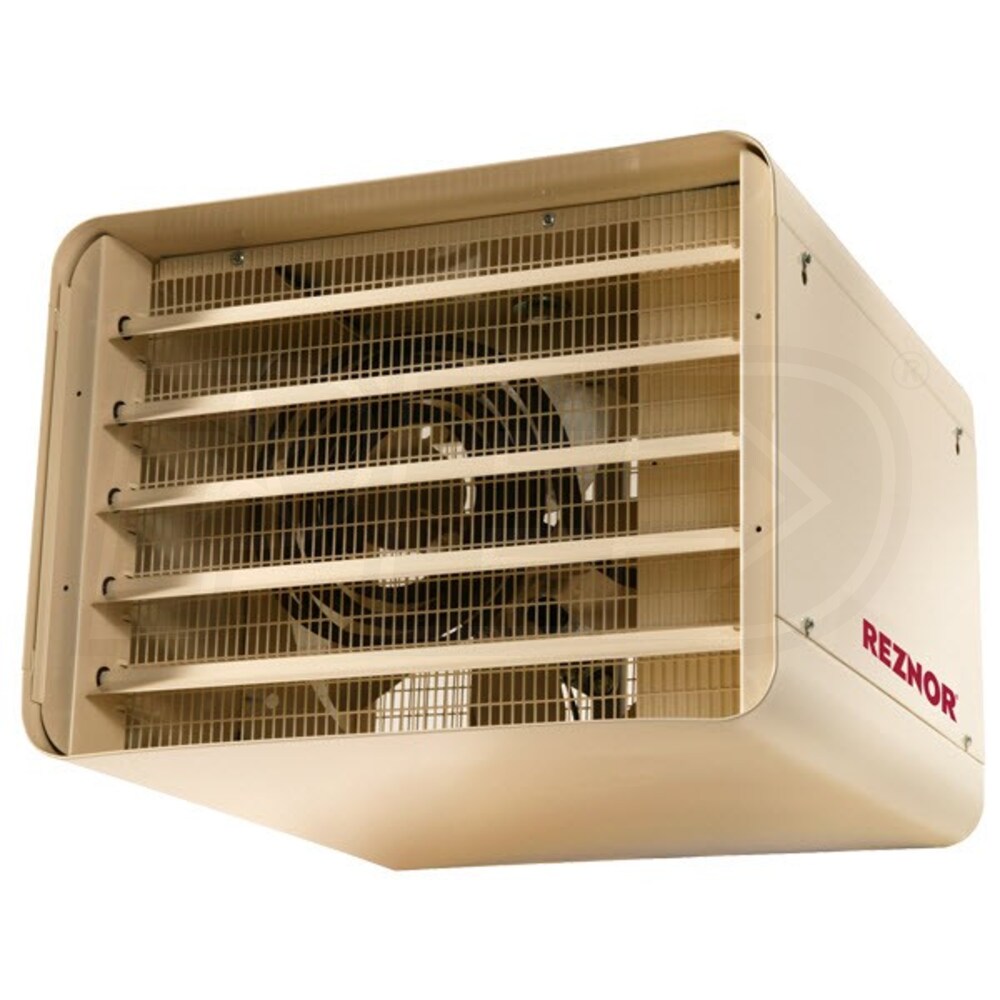

Reznor EGHB-10 Heavy Duty Suspended Electric Unit Heater, 208V, 3 Phase - 10 kW (34,144 BTU)
Model:
EGHB-10-AK5
+
Share This Product
Features
- Reznor EGHB-10-AK5 Features
- 18 and 20 gauge steel cabinet
- Adjustable louvers to direct airflow
- Tubular heating elements
- Epoxy/polyester powder paint
- Thermally-protected motor
- 85 F maximum operating temperature
Reznor EGHB-10-AK5 Heavy Duty Suspended Electric Unit Heater is a 208 volt, heavy-duty suspended electric unit heater. It has an maximum heat capacity of 34144 BTU/hr. With a maximum operating temperature of 85 F, the Reznor EGHB-10-AK5 Heavy Duty Suspended Electric Unit Heater is designed for mines, commercial halls, stairwells, factories, warehouses, or other high-bay installation. Its exterior is coated in an epoxy/polyester powder paint which is corrosion resistant maintaining its appearance for years. Adjustable louvers allow for easier directed air flow. The EGHB-10-AK5 has a minimum recommended height of 8 ft. and a maximum recommended height of 15 ft. when mounted horizontally.
Product Note
Reznor EGHB Series is not designed for residential use.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
EGHB-10-AK5

Overview
Product Category
Unit Heater
General Information
Type
Heavy Duty
Product Line
EGHB
Product Category
Unit Heater
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
34144 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
34144 BTU
Heating Capacity (kW)
10 kW
Maximum Air Flow
700 CFM
Minimum Air Flow
700 CFM
Electrical Data
Voltage
208 Volts
Phase
3
Frequency
60 Hz
Current Draw
27.79 Amps
Dimensions
Product Height
12 Inches
Product Width
16 1/2 Inches
Product Depth
17 Inches
Product Weight
45 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
(2)
Reznor EGHB-10-AK5 Reviews & Ratings

GREAT Product!
By James Q
HAYMARKET, Virginia
Purchased 02/12/2019 |
Review Posted 04/03/2019
This Reznor heater is very high quality, reliable and easy to use!!
James Q Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
3/5

The unit heater is better than expected
By Dennis C
Hot Springs Village, Arkansas
Purchased 01/02/2019 |
Review Posted 02/12/2019
I bought one 15kW heater for a new 2500 square foot garage. The steel building is insulated. I was going to try one heater to see how well it performed. Turns out the one heater is all I need. Works great.
Dennis C Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
5/5
4/5
