Features
- Reznor EGHB-15-AK7E Features
- 18 and 20 gauge steel cabinet
- Adjustable louvers to direct airflow
- Tubular heating elements
- Epoxy/polyester powder paint
- Thermally-protected motor
- 85 F maximum operating temperature
Overview for Reznor EGHB-15-AK7E

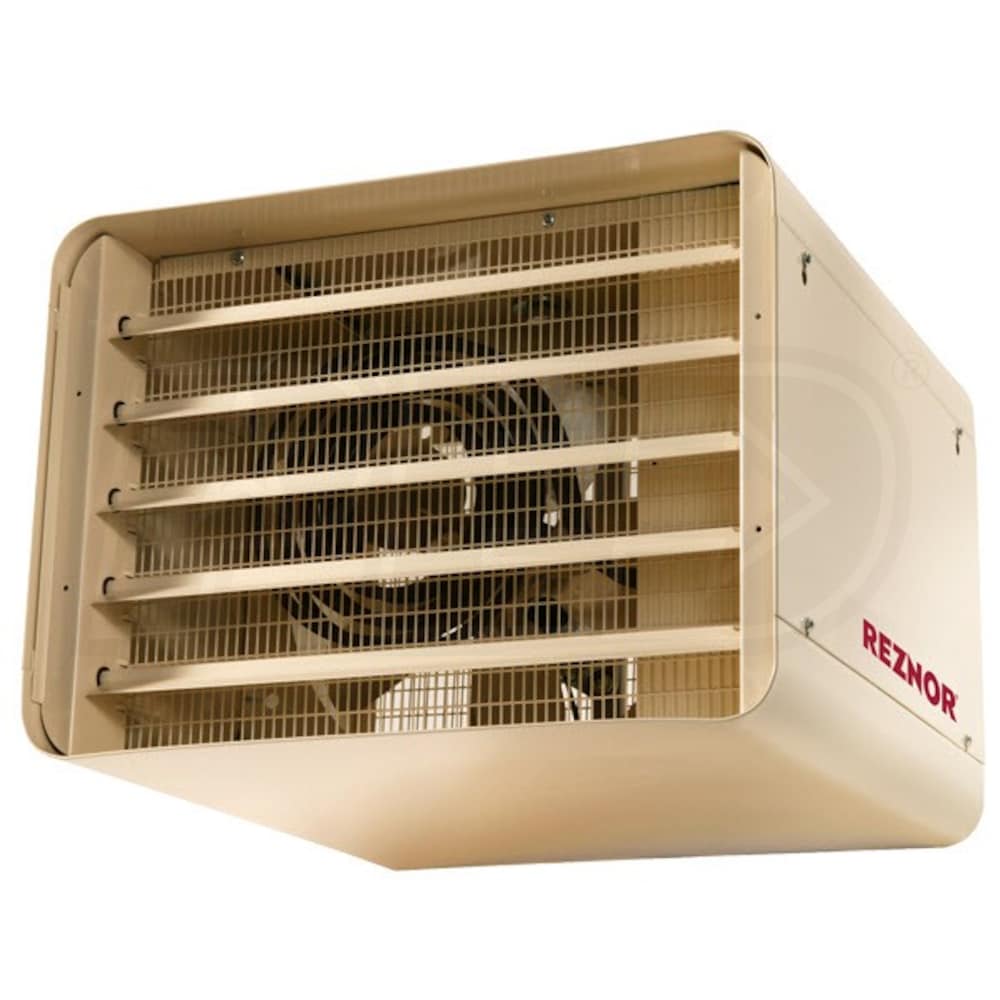

Reznor EGHB-15-AK7E 51,216 BTU 15 kW Suspended Electric Heater 480V 3 Phase.
Reznor EGHB-15-AK7E 51,216 BTU 15 kW Suspended Electric Heater 480V 3 Phase.
Product Note
Reznor EGHB Series is not designed for residential use.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
EGHB-15-AK7E
Overview
Product Category
Unit Heater
Additional Model Numbers
EGHB-15-AK7E, EGHB-15-AK7E
General Information
Type
Heavy Duty
Product Line
EGHB
Product Category
Unit Heater
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
51216 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
51216 BTU
Heating Capacity (kW)
15 kW
Maximum Air Flow
1300 CFM
Minimum Air Flow
1300 CFM
Electrical Data
Voltage
480 Volts
Phase
3
Frequency
60 Hz
Current Draw
18.06 Amps
Dimensions
Product Height
17 1/2 Inches
Product Width
22 Inches
Product Depth
22 1/2 Inches
Product Weight
85 Pounds
Shipping Weight
95 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
