Reznor RP-175-AC2
Reznor RP-175-AC2
Hover to zoom
1 Of 5

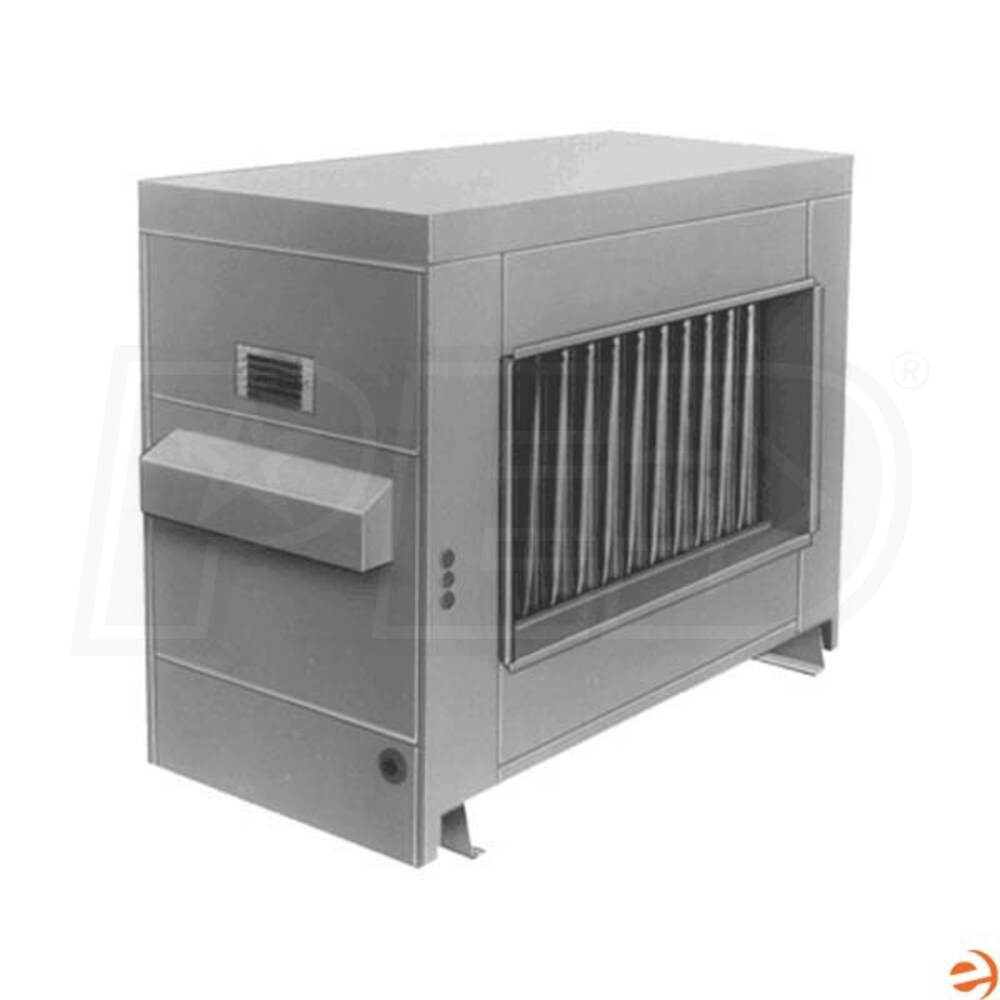

Reznor RP-175 Gas Fired Duct Furnace - Power Vented - NG - 409 Stainless Steel Heat Exchanger - 175,000 BTU

Model:

RP-175-AC2

Write A Review
$5,241.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks
synchrony card logo
$66 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Reznor RP-175 Gas Fired Duct Furnace - Power Vented - NG - 409 Stainless Steel Heat Exchanger - 175,000 BTU
Reznor RP-175 Gas Fired Duct Furnace - Power Vented - NG - 409 Stainless Steel Heat Exchanger - 175,000 BTU
Model: RP-175-AC2
$5,241.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    Reznor RP-175-AC2 Gas Fired Duct Furnace is an outdoor gas fired duct furnace which provides a heating output capacity of 140000 with an 80% thermal efficiency. This RP model has a high fire input of 175000. RP model furnaces are the heating component of heating or heating/cooling systems and require a separate blower system for air delivery. RP-175-AC2 is approved for a 50-90 F temperature rise range and includes power vent system. Units include a blocked vent shut-off system.
  • Reznor RP-175-AC2 Features
  • Stainless steel heat exchanger
  • Aluminized steel burners with stainless steel insert
  • 24 volt control voltage transformer
  • High limit safety cutout
  • Redundant single stage combination gas valve
  • Spark-ignited intermittent safety pilot
  • Power venter
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

RP-175-AC2
specs product image PID-46905
General Information
Product Line
RP
Heat Exchanger Material
Stainless Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Stages
Single Stage
Blower Motor Type
Multi-Speed
Mount Type
Roof Mount
Performance
Heating Capacity
140000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
175000 BTU
Maximum Output Capacity
140000 BTU
High Fire Input
175,000 BTU
Thermal Efficiency
80 %
Maximum Air Flow
2580 CFM
Minimum Air Flow
1430 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Flue Connection Size
4 Inches
Product Height
38 13/24 Inches
Product Width
36 7/16 Inches
Product Depth
26 Inches
Product Weight
217 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
