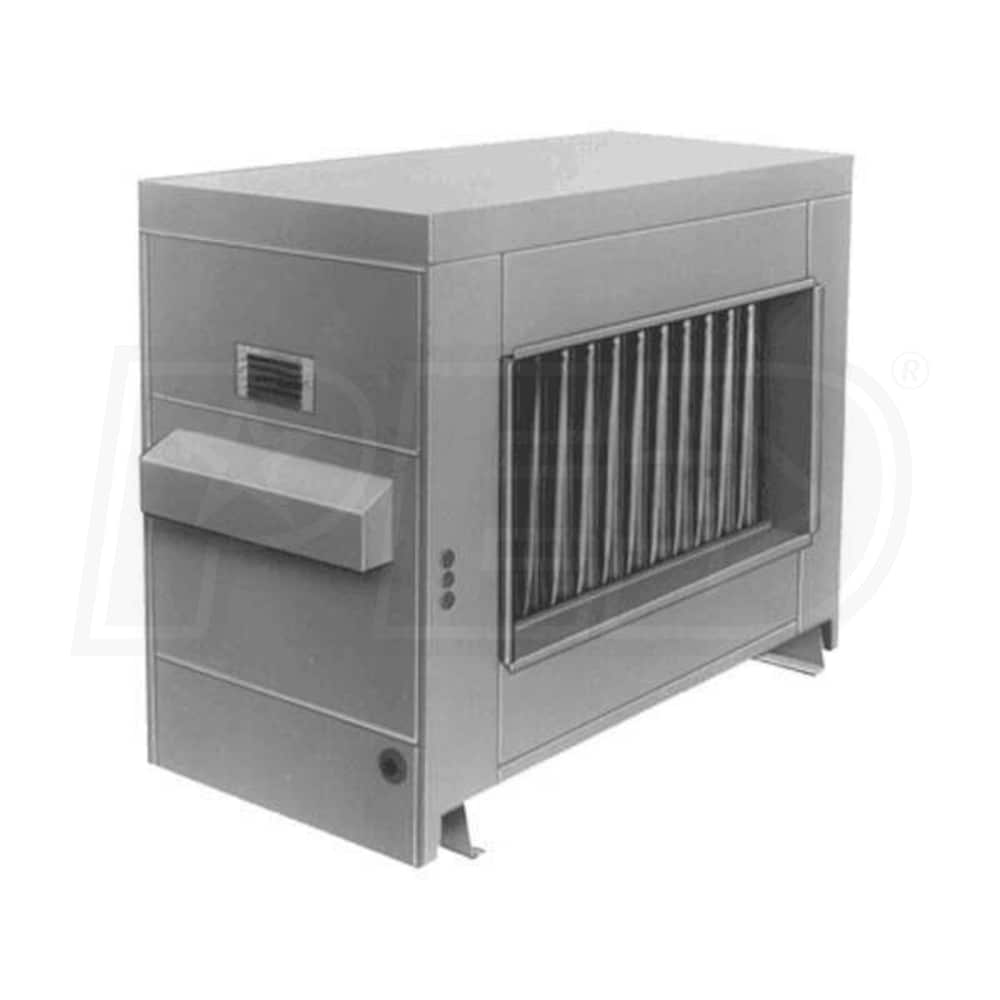

Reznor 350,000 BTU Gas Fired Duct Furnace Natural Gas

Model:

RP-350

Write A Review
$6,045.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks
synchrony card logo
$76 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Reznor 350,000 BTU Gas Fired Duct Furnace Natural Gas
Reznor 350,000 BTU Gas Fired Duct Furnace Natural Gas
Model: RP-350
$6,045.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    Overview for Reznor RP-350

    Reznor RP-350 350,000 BTU Gas Fired Duct Furnace Natural Gas.
  • Reznor RP-350 Features
  • Aluminized steel heat exchanger
  • Aluminized steel burners with stainless steel insert
  • 24 volt control voltage transformer
  • High limit safety cutout
  • Redundant single stage combination gas valve
  • Spark-ignited intermittent safety pilot
  • Power venter
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

RP-350
specs product image PID-46918
Overview
Product Category
Unit Heater
Additional Model Numbers

RP-350, RP-350

General Information
Product Line
RP
Product Category
Unit Heater
Heat Exchanger Material
Aluminized Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Stages
Single Stage
Blower Motor Type
Multi-Speed
Mount Type
Roof Mount
Performance
Heating Capacity
280000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
350000 BTU
Maximum Output Capacity
280000 BTU
High Fire Input
350,000 BTU
Thermal Efficiency
80 %
Maximum Air Flow
5160 CFM
Minimum Air Flow
2865 CFM
Electrical Data
Phase
1
Dimensions
Flue Connection Size
6 Inches
Gas Connection Size
3/4 Inch
Product Height
38 13/24 Inches
Product Width
55 11/16 Inches
Product Depth
26 Inches
Product Weight
333 Pounds
Shipping Weight
333 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
