Features
- Reznor UEAS-180-CC6 Features
- Transformer for 24-volt controls
- Multi-try direct spark ignition with 100% lockout
- PSC venter motor
- Vibration isolated fan motors
- 4-pt suspension
- External gas connection/li
- Included LP conversion kit
Overview for Reznor UEAS-180-CC6

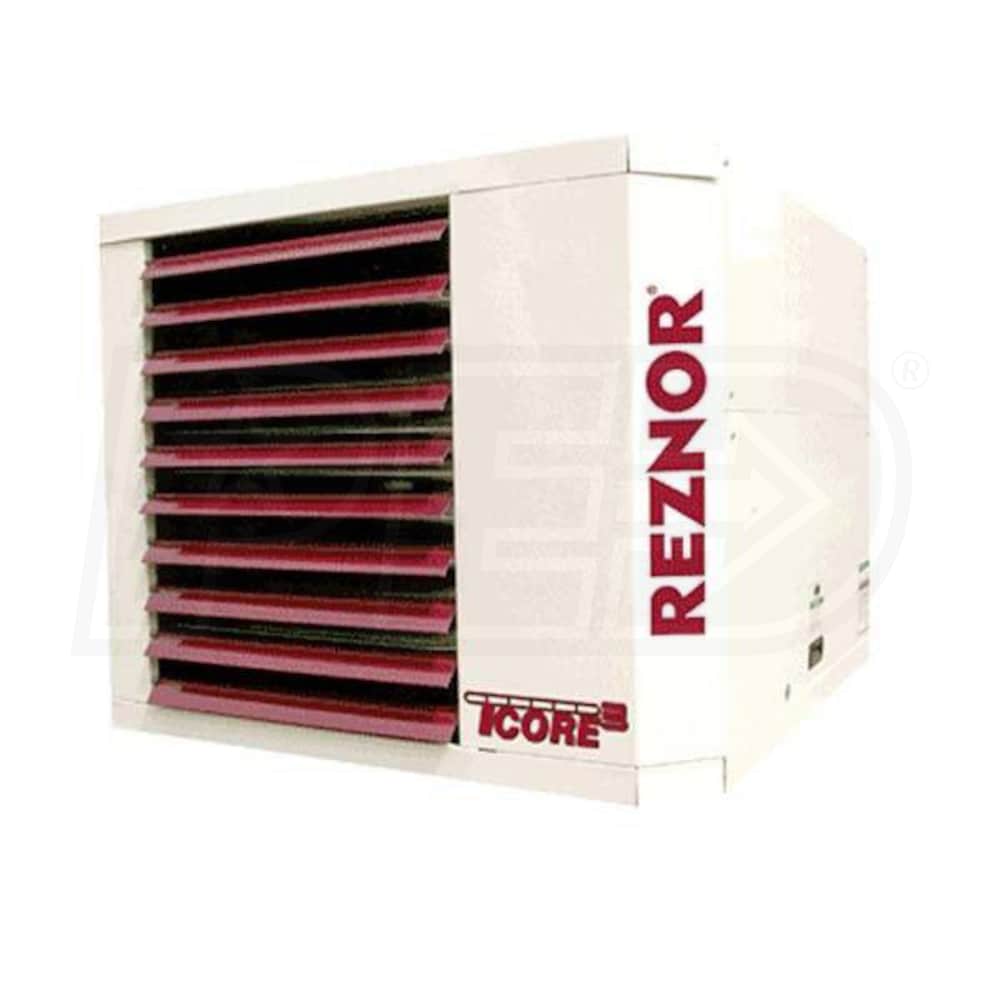

Reznor UEAS-180-CC6 175,000 BTU Thru Wall Vent Gas Fired Unit Heater.
Reznor UEAS-180-CC6 175,000 BTU Thru Wall Vent Gas Fired Unit Heater.
Product Note
The image may not reflect actual product features. The Reznor UEAS-180 comes with five horizontal louvers.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
UEAS-180-CC6
General Information
Product Line
UEAS
Heat Exchanger Material
Aluminized Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Mount Type
Suspended
Gas Conversion Kit
Included
Additional Model Numbers
UEAS-180-CC6, UEAS-180-CC6
Performance
Heating Capacity
159000 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
175000 BTU
Thermal Efficiency
91 %
Maximum Air Flow
2458 CFM
Minimum Air Flow
2458 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
4 Inches
Gas Connection Size
1/2 Inch
Product Height
20 1/8 Inches
Product Width
39 3/16 Inches
Product Depth
50 1/2 Inches
Product Weight
245 Pounds
Shipping Weight
255 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
