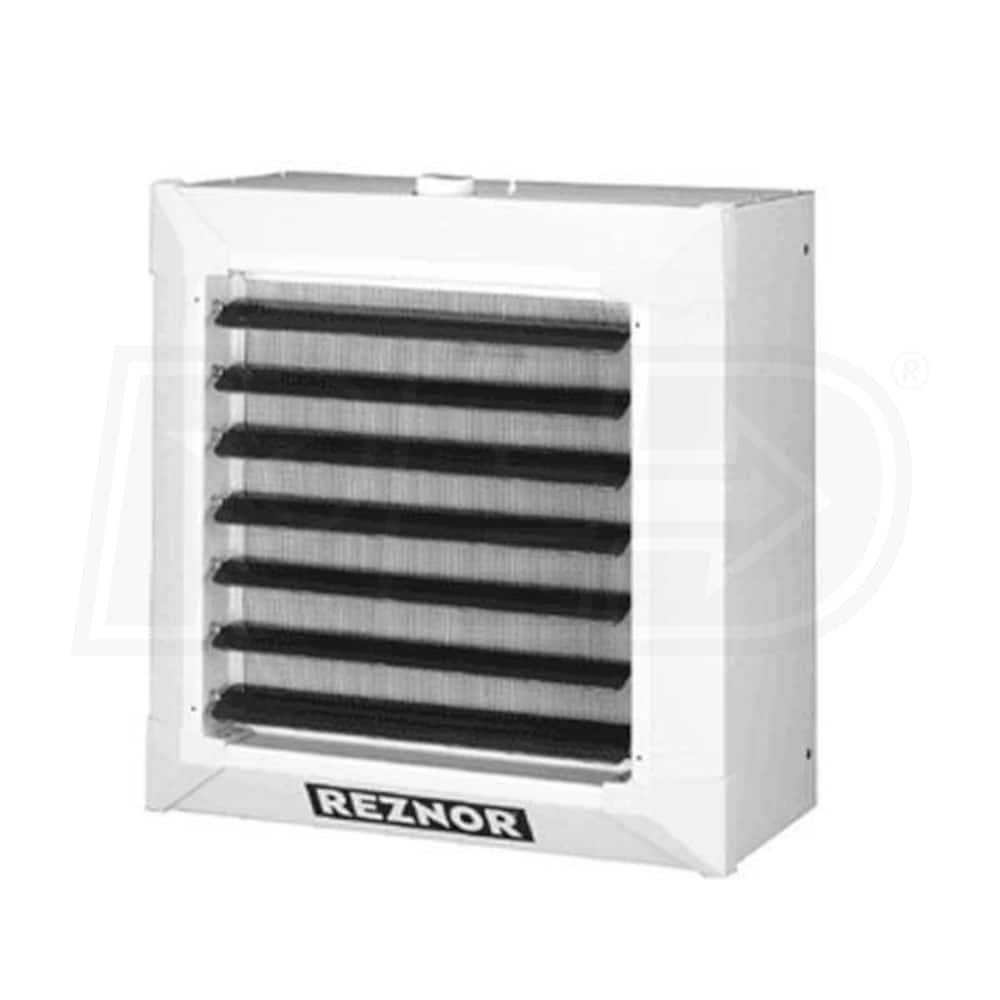

Reznor WS-140/175 Suspended Hydronic Unit Heater - 2 Row Copper Coil - Steam or Hot Water - 175,000 BTU
Model:
WS-140/175-HA12
+
Share This Product
Features
- Reznor WS-140/175-HA12 Features
- Copper tube heat exchanger with aluminum fins
- Galvanized fan guard
- Cabinet composed with shake-proof screws and molded corner sections
- Spring mounted horizontal louvers
Reznor WS-140/175-HA12 Suspended Hydronic Unit Heater is a two-speed hydronic suspended unit heater designed with an output capacity of 175000 BTU/hr. WS models are designed for a high-pressure of 150 PSI for hot water and 145 PSI for steam usage. Heat exchangers are coated with a special paint to increase lifetime usage and thermal output. Cabinets are painted for corrosion resistance and designed with shake-proof screws for additional strength and durability.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
WS-140/175-HA12
Overview
Product Category
Unit Heater
General Information
Product Line
WS
Product Category
Unit Heater
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam/Hot Water
Heat Exchanger Material
Copper
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Mount Type
Suspended
Performance
Heating Capacity
131000 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
175000 BTU
Maximum Air Flow
2300 CFM
Minimum Air Flow
1750 CFM
Electrical Data
Phase
1
Dimensions
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
27 1/16 Inches
Product Width
27 1/16 Inches
Product Depth
19 3/16 Inches
Product Weight
88 Pounds
Shipping Weight
98 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
