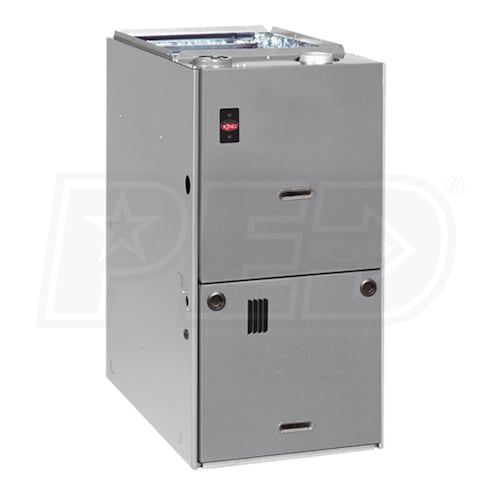

WeatherKing By Rheem W801T - 100k BTU - Gas Furnace - 80% AFUE
Model:
W801TA100521ZSB
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Direct Spark Ignition
- The WeatherKing W801T features a direct spark ignition system, the same used on gas ovens and stoves. This means the furnace will only fire when it is needed, unlike a less efficient constant pilot light.
- Quiet Operation
- The W801T is built with a tight door seal to minimize noise. Rubber grommets on the motor mounts and a twist lock wire harness in the blower shelf cuts down on unwanted vibration noise.
- Aluminized Steel Heat Exchanger
- The aluminized steel heat exchanger in the W801T provides incredibly efficient heat transfer as well as maximum corrosion resistance and thermal fatigue reliability.
- LED Display
- An industry first, WeatherKing furnaces feature a 7-segment LED display, making service calls quick and easy.
Reliability, functionality, efficiency - these are values that Rheem holds to the highest standards in the WeatherKing line of HVAC systems. The WeatherKing W801T includes an aluminized steel heat exchanger that provides maximum corrosion resistance and thermal fatigue durability. The heat exchanger can also be removed for improved serviceability. The W801T features a direct spark ignition system, which has proven to be one of the most dependable ignition systems on the market today. This easy-to-install furnace is built with a tight seal to provide years of quiet operation, while its efficient ECM motor cuts down on energy cost.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
W801TA100521ZSB
General Information
Type
Gas Furnace
Product Line
WeatherKing
Product Sub-line
W801T
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Type
PSC Multi-Speed
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
Gas Conversion Kit
Available
UPC
662021402364
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
80 %
Heating BTU
100000
High Fire Input
100000 BTU
High Fire Output
82000 BTU
Maximum Air Flow
2072 CFM
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Low NOx Emissions
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
No
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
12 Amps
Recommended Breaker Size
15 Amps
Dimensions
Cabinet Width
21 Inches
Product Height
34 Inches
Product Width
21 Inches
Product Depth
29 Inches
Product Weight
120 Pounds
Shipping Weight
120 Pounds
Certifications
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
