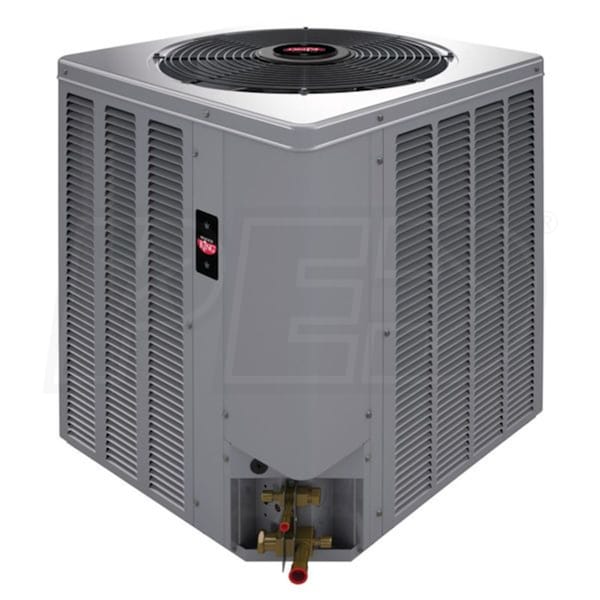

WeatherKing By Rheem WA14 - 3 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant
Model:
WA1436AJ1NA
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Wrap-Around Coil
- The WeatherKing WA14 implements a unique wrap-around coil which improves air flow and heat transfer while reducing energy consumption.
- Solid Construction
- Made with a sturdy louvered steel cabinet, the WA14 is built to withstand inclement weather, yard hazards, and corrosion.
- Quiet Operation
- Several characteristics of the WA14 reduce sound and vibration: a motor mount/grille combination, the discharge pattern of the top grilles that minimizes air restriction, and a one-piece base pan that elevates the coil off the pad to reduce vibration.
- Control Box
- An easily accessible control box on the WA14 allows for improved serviceability.
- Filter Drier
- A filter drier is included in the purchase of this air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
Reliability, functionality, efficiency - these are values that Rheem holds to the highest standards in the WeatherKing line of HVAC systems. Designed for ground level or rooftop installations, the WA14 Air Conditioner is the perfect comfort solution for single family, multi-family, and light commercial applications. A louvered steal cabinet protects the WA14 from the elements, while a motor mount/grille combination reduces sound and vibration. The WA14 uses a unique wrap-around outdoor coil which allows for improved airflow and heat transfer while reducing energy consumption.
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
WA1436AJ1NA
General Information
Type
Condenser
Product Line
WeatherKing
Product Sub-line
WA14
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
UPC
662021421723
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3 Tons
Cooling BTU
36000
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
35 3/8 Inches
Product Width
31 5/8 Inches
Product Depth
31 5/8 Inches
Product Weight
194 Pounds
Shipping Weight
201 Pounds
Certifications
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
