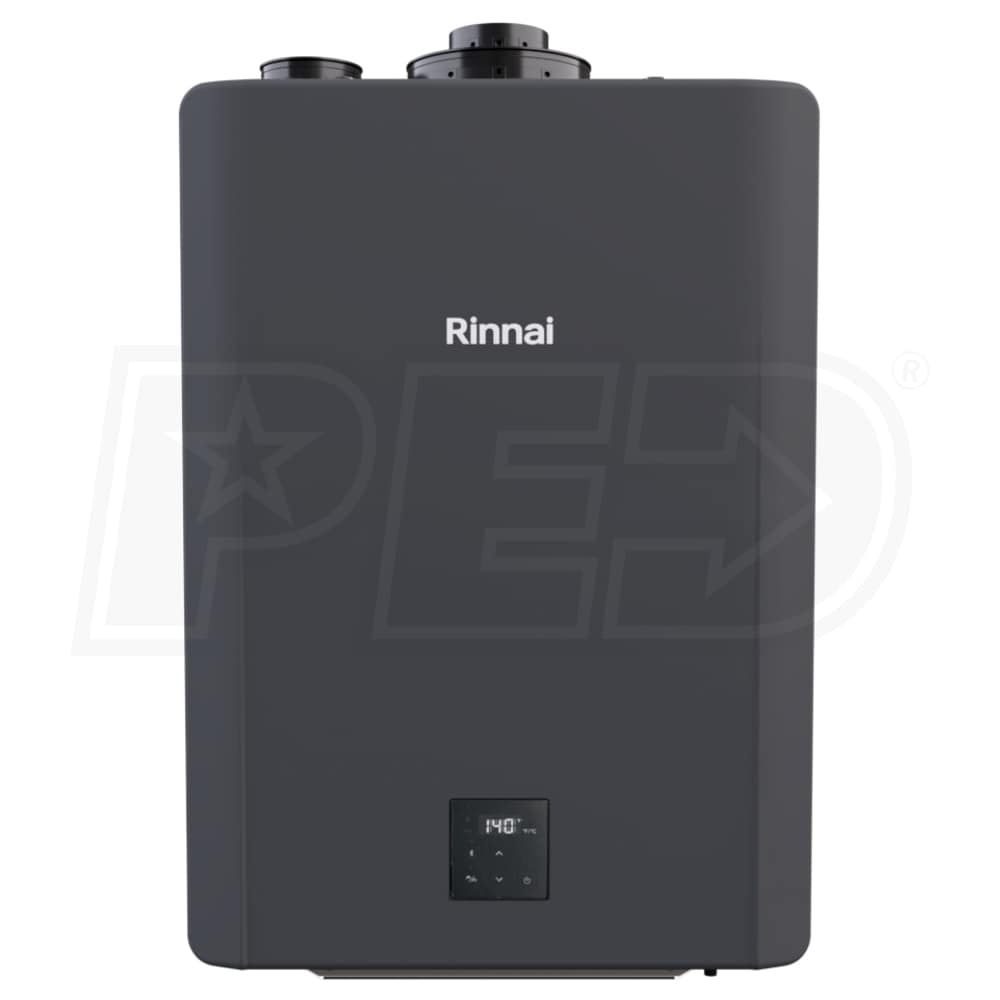

Rinnai Sensei™ CXP160iN - Commercial 160,000 BTU - Natural Gas Tankless Water Heater - Indoor

Model:

CXP160IN

Write A Review
$1,452.78
Was $1,614.20
Buy Now - Limited Time Savings!
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$243 / Month
Suggested monthly payments with 6 month financing.
Rinnai Sensei™ CXP160iN - Commercial 160,000 BTU - Natural Gas Tankless Water Heater - Indoor
Rinnai Sensei™ CXP160iN - Commercial 160,000 BTU - Natural Gas Tankless Water Heater - Indoor
Model: CXP160IN
$1,452.78
Was $1,614.20
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Fuel

Natural Gas

Location

Indoor

# of Showers

2.5

UEF

0.97

Energy Star Certification

Yes

    Rinnai is raising the bar in tankless heating technology with their SENSEI™ tankless water heaters. Rinnai's SENSEI™ series provides a better experience for both users and installers alike with simple installation, serviceability, efficient performance, and flexible venting options. A corrosion-resistant stainless steel heat exchanger and the included safety devices allow for powerful and efficient water heating for years to come. Rinnai SENSEI™ tankless water heaters can use either Natural Gas or Liquid Propane and can be installed indoors or outdoors using the Versa-Vent™ outdoor vent cap accessory. (Not included) The Rinnai CXP series uses an integrated recirculation pump that enables efficient recirculation through a dedicated return line or thermal bypass valve, offering enhanced system performance and energy savings.
  • Internal Multi-Speed Recirculation Pump
  • The Rinnai RXP series feature an integrated recirculation pump that allows for recirculation through a dedicated return line or crossover with thermal bypass valve.
  • Cascade And Rack System Capability
  • Multiple tankless water heaters can be mounted and electronically connected by using an optional cascade harness in combination with Rinnai's Tankless Rack Systemâ„¢ for use in commercial applications. (Not included)
  • Continuous Water for Multiple Applications
  • Rinnai tankless water heaters provide an endless supply of hot water that remains uninterrupted, even when you're the last one in line for the shower.
  • Energy Efficient Promise
  • Tankless water heaters avoid the need to keep a large amount of reserve water heated at all times. This saves energy by only heating water when you need it, while an entirely electric ignition avoids the constantly wasted energy of a standing pilot light.
  • Adaptive Gas Valve Technology
  • Rinnai tankless water heaters with Smart-Senseâ„¢ adaptive gas valve technology require no additional conversion kit and can use with either natural gas or liquid propane.
  • Flexible Venting Options
  • Perfect for both new installs and retrofits, the SENSEI™ features the most flexible venting in the industry. Whether your install requires concentric, direct, room air, or common venting, the SENSEI™ series can handle it all.
  • Outdoor Installation Available
  • Rinnai SENSEIâ„¢ tankless water heaters can be installed outdoors using the optional RXOVC Versa-Ventâ„¢ Outdoor Vent Cap. (Not included)
  • Bluetooth Connectivity
  • Smart Connectâ„¢ will allow you to connect wirelessly to your tankless water heater by using the Rinnai Centralâ„¢ app for your phone or tablet.
  • Easy Maintenance
  • Make maintenance a simple task by using the Quick-Flushâ„¢ feature. It allows you to perform an efficient flushing procedure for periodic maintenance.
  • Warranty
  • Rinnai SENSEIâ„¢ tankless water heaters outlast traditional tank models up to twice as long and have twice the warranty as well.
  • Mobile Home Certified
  • Your SENSEIâ„¢ tankless water heater can be in installed in a mobile or modular home.
  • Ultra-Low NOx
  • Rinnai Ultra-Low NOx tankless water heaters emits a lower level of nitrogen oxide than a standard a gas water heater and comply with south coast air quality management district 14 ng/J or 20 ppm NOx Emission Levels.
  • 1/2 in Gas Line Compatible
  • Your SENSEIâ„¢ tankless water heater can be in installed using a 1/2 in gas line.
  • Product Includes
  • (1) Tankless Water Heater
  • (1) Wall Mounting Bracket
  • (2) Vent Screens
  • (2) Screws
  • (4) Self-Tapping Screws
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

CXP160IN
specs product image PID-154044
General Information
Type
Tankless Water Heater
Product Line
Sensei
Product Sub-line
Super High Efficiency
Product Category
Water Heater - Tankless
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Venting Category Learn More
Venting Category
Venting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel
IV
Storage Type
Tankless
Application
Commercial
Mount Type
Wall
Installation Location
Indoor
Maximum Altitude
10200 Feet
Includes Pump
Yes
Gas Conversion Kit
Not Required
UPC
766156017339
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
160000 BTU
Minimum Input Capacity
15000 BTU
Flow Rate at 40F Temperature Rise Learn More
Flow Rate at 40F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
7.8 GPM
Flow Rate at 45F Temperature Rise Learn More
Flow Rate at 45F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
7.0 GPM
Flow Rate at 50F Temperature Rise Learn More
Flow Rate at 50F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.2 GPM
Flow Rate at 60F Temperature Rise Learn More
Flow Rate at 60F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.2 GPM
Flow Rate at 70F Temperature Rise Learn More
Flow Rate at 70F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
4.4 GPM
Uniform Energy Factor Learn More
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.97
Minimum Flow Rate
0.5 GPM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Primary Vent Pipe Diameter
2 Inches
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
30 5/48 Inches
Product Width
18 1/2 Inches
Product Depth
11 19/48 Inches
Product Weight
57 Pounds
Shipping Weight
67 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
214067923
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
8 Years
