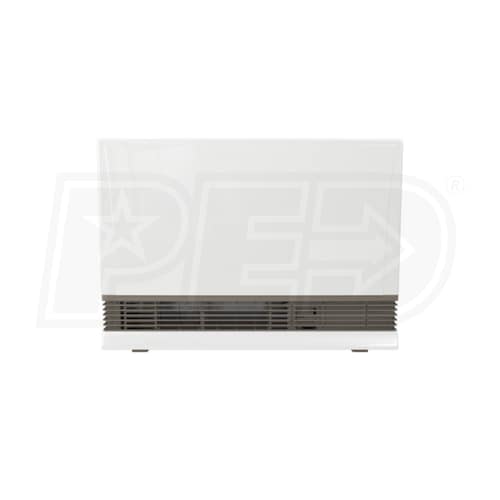

Rinnai EnergySaver® - 36,500 BTU - Gas Direct-Vent Wall Furnace - LP - 80% AFUE - Beige
Model:
EX38DTP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Advanced Modulating Technology
- Rinnai EnergySaver® wall furnaces feature advanced modulating technology which responds to the smallest temperature changes to maintain the pre-set temperature, keeping your home comfortable while saving you energy.
- Control Options
- The EX38DTP has a built-in user-friendly control panel, allowing you to set your desired temperature. A Wi-Fi enabled thermostat such as a Nest, Honeywell or ecobee (not included) can be attached for additional flexibility.
- Stainless Steel Heat Exchanger
- The included stainless steel heat exchanger features corrosion-resistant properties to ensure reliable and long-lasting operation.
- Flexible Installation
- With no ductwork needed and flexible venting, the EX38DTP can easily be installed outside of almost any existing home or new construction.
- Venting Options
- Direct, Through-Wall Vent Termination
- Through-Wall Vent Termination with Extension Kit
- Through-Wall Vent Termination with Extension Kit and Elbow
- Product Includes
- EX38DTP
- Vent Kit FOT-151 (4-1/2" - 9-1/2" Walls)
With the Rinnai EnergySaver® Direct Vent Wall Furnace, you can be just as comfortable with your energy bill as you are with your room temperature. The EnergySaver® is a highly efficient furnace ideal for hard to heat areas like sunrooms, basements, room additions, and even whole-home heating. The EnergySaver® features Rinnai's modulating heat technology that responds to small temperature changes, resulting in higher levels of comfort at lower energy cost. The EnergySaver® also includes a user-friendly control panel that allows you to set temperature and adjust heating schedules with a programmable timer. The Rinnai EnergySaver® Wall Furnace puts you in control of your home's comfort, effectively and efficiently.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
EX38DTP
General Information
Type
Gas Wall Furnace
Product Line
EnergySaver
Product Sub-line
EX38
Product Category
Furnace
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Gas Conversion Kit
Available
Color
Beige
UPC
766156016493
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
80 %
Heating BTU
36500
High Fire Input
36500 BTU
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
46 dB
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Product Height
26 19/48 Inches
Product Width
36 5/8 Inches
Product Depth
12 29/48 Inches
Product Weight
86 Pounds
Certifications
CSA Listed
Yes
AHRI Reference Number
208449371
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
