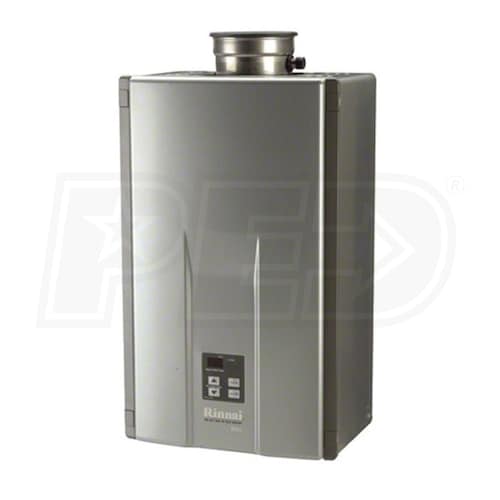

Rinnai Luxury Series - RL75 - 5.0 GPM at 60° F Rise - 0.81 UEF - Propane Tankless Water Heater - Concentric Vent

Model:

RL75IP

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Rinnai Luxury Series - RL75 - 5.0 GPM at 60° F Rise - 0.81 UEF  - Propane Tankless Water Heater - Concentric Vent
Rinnai Luxury Series - RL75 - 5.0 GPM at 60° F Rise - 0.81 UEF - Propane Tankless Water Heater - Concentric Vent
Model: RL75IP
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Fuel

Liquid Propane

Location

Indoor

# of Showers

2.4

UEF

0.81

    Rinnai has been delivering nothing but the best for almost 100 years and that award-winning dedication can't help but be noticed in their HE+ Series. The RL75iP and all of the HE+ Series models offer the highest output of Rinnai's non-condensing line of tankless heaters. Rinnai's HE+ Series models utilize breaking edge recirculation technology to provide optimal operation with their dedicated recirculation line. With a 0.81 Uniform Energy Factor and a sleek, innovative design, the RL75iP is a superior option that is easily maintained thanks to included isolation valves.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

RL75IP
specs product image PID-25198
Overview
Product Category
Water Heater - Tankless
UPC
766156006340
General Information
Type
Tankless Water Heater
Product Line
Luxury Series
Product Sub-line
High Efficiency Plus (HE+)
Product Category
Water Heater - Tankless
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Non-Condensing
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Concentric Vent
Venting Category Learn More
Venting Category
Venting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel
III
Storage Type
Tankless
Application
Residential
Mount Type
Wall
Installation Location
Indoor
Includes Pump
No
Gas Conversion Kit
Not Available
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
180000 BTU
Minimum Input Capacity
10300 BTU
Flow Rate at 40F Temperature Rise Learn More
Flow Rate at 40F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
7.4 GPM
Flow Rate at 45F Temperature Rise Learn More
Flow Rate at 45F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6 GPM
Flow Rate at 50F Temperature Rise Learn More
Flow Rate at 50F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.0 GPM
Flow Rate at 60F Temperature Rise Learn More
Flow Rate at 60F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.0 GPM
Flow Rate at 70F Temperature Rise Learn More
Flow Rate at 70F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
4.3 GPM
Uniform Energy Factor Learn More
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.81
Minimum Flow Rate
0.4 GPM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
22 23/24 Inches
Product Width
14 1/24 Inches
Product Depth
9 13/48 Inches
Product Weight
45.6 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
