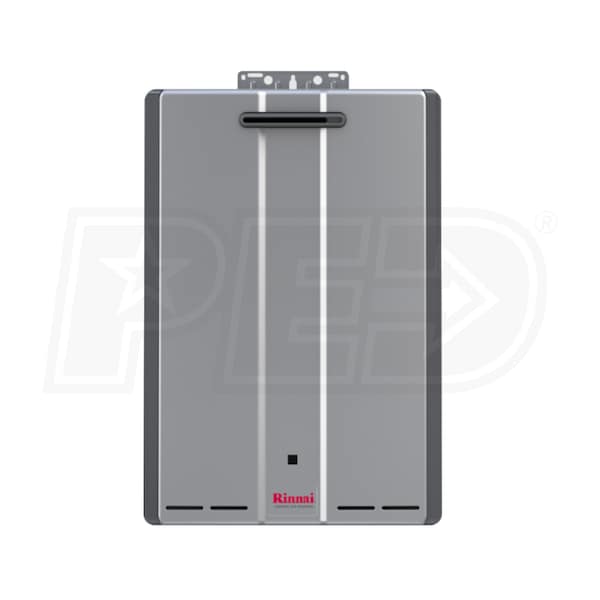

Rinnai Sensei™ - RSC199 - Residential 199,000 BTU - Natural Gas Tankless Water Heater - Outdoor

Model:

RSC199EN

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Rinnai Sensei™ - RSC199 - Residential 199,000 BTU - Natural Gas Tankless Water Heater - Outdoor
Rinnai Sensei™ - RSC199 - Residential 199,000 BTU - Natural Gas Tankless Water Heater - Outdoor
Model: RSC199EN
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Fuel

Natural Gas

Location

Outdoor

# of Showers

3.0

UEF

0.93

Energy Star Certification

Yes

    Rinnai is raising the bar in tankless heating technology with their SENSEI™ tankless water heaters. Rinnai's SENSEI™ series provides a better experience for both users and installers alike with simple installation, serviceability, efficient performance, and flexible venting options. The SENSEI's™ advanced condensing technology can easily adapt to colder climates with freeze protection down to -4° F for outdoor units when protected from direct wind exposure. The RSC199EN shines above all SENSEI™ series models by offering an integrated recirculation pump alongside Rinnai's incredibly efficient condensing design. A corrosion-resistant heat exchanger, integrated check valve, and included safety devices allow for efficient water heating for years to come.
  • Continuous Water for Multiple Applications
  • Rinnai tankless water heaters provide an endless supply of hot water that remains uninterrupted, even when you're the last one in line for the shower.
  • Energy Efficient Promise
  • Tankless water heaters avoid the need to keep a large amount of reserve water heated at all times. This saves energy by only heating water when you need it, while an entirely electric ignition avoids the constantly wasted energy of a standing pilot light.
  • Circ-Logic Recirculation Technology
  • Rinnai's Circ-Logic technology allows users to set recirculation patterns that work with their usage patterns. This means that hot water is always available when needed without having to circulate during times of inactivity.
  • Wi-Fi Compatible
  • Every SENSEI™ water heater is Wi-Fi compatible for remote monitoring and management.
  • Enhanced Combustion Design
  • The Rinnai SENSEI™ series water heaters feature a fiber mesh premix burner that provides an even flame distribution for optimal performance and efficiency.
  • Stainless Steel Heat Exchanger
  • The included stainless steel heat exchanger features corrosion-resistant properties to ensure reliable and long-lasting operation, while its superior efficiency puts the SENSEI™ series at the top of its class.
  • Flexible Venting Options
  • Perfect for both new installs and retrofits, the SENSEI™ features the most flexible venting in the industry. Whether your install requires concentric, direct, room air, or common venting, the SENSEI™ series can handle it all.
  • Simple Installation and Serviceability
  • The SENSEI™ water heater features an adjustable mounting plate and a rotatable pressure relief valve to accommodate a variety of install applications. An easily accessible parameter adjustment allows for fast and simple servicing.
  • Includes Isolation Valves & Pressure Relief Valve
  • Enables easy preventative maintenance, annual flushing, and serviceability.
  • Delivers a $100 value, with no additional purchase necessary.
  • Product Also Includes
  • Integrated Controller
  • Wall Mounting Bracket
  • Vent Screens (2)
  • Recirculation Pump Cable
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

RSC199EN
specs product image PID-123586
Overview
Product Category
Water Heater - Tankless
UPC
766156009471
General Information
Type
Tankless Water Heater
Product Line
Sensei
Product Sub-line
Super High Efficiency Plus (SE+)
Product Category
Water Heater - Tankless
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Venting Category Learn More
Venting Category
Venting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel
IV
Storage Type
Tankless
Application
Residential
Mount Type
Wall
Installation Location
Outdoor
Maximum Altitude
10200 Feet
Includes Pump
Yes
Gas Conversion Kit
Not Available
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
199000 BTU
Minimum Input Capacity
15000 BTU
Flow Rate at 40F Temperature Rise Learn More
Flow Rate at 40F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
9.8 GPM
Flow Rate at 45F Temperature Rise Learn More
Flow Rate at 45F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
8.4 GPM
Flow Rate at 50F Temperature Rise Learn More
Flow Rate at 50F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
7.6 GPM
Flow Rate at 60F Temperature Rise Learn More
Flow Rate at 60F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.4 GPM
Flow Rate at 70F Temperature Rise Learn More
Flow Rate at 70F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.5 GPM
Uniform Energy Factor Learn More
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.93
Minimum Flow Rate
0.26 GPM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Primary Vent Pipe Diameter
2 Inches
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
26 19/48 Inches
Product Width
18 1/2 Inches
Product Depth
11 19/48 Inches
Product Weight
68 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
208141211
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
15 Years
