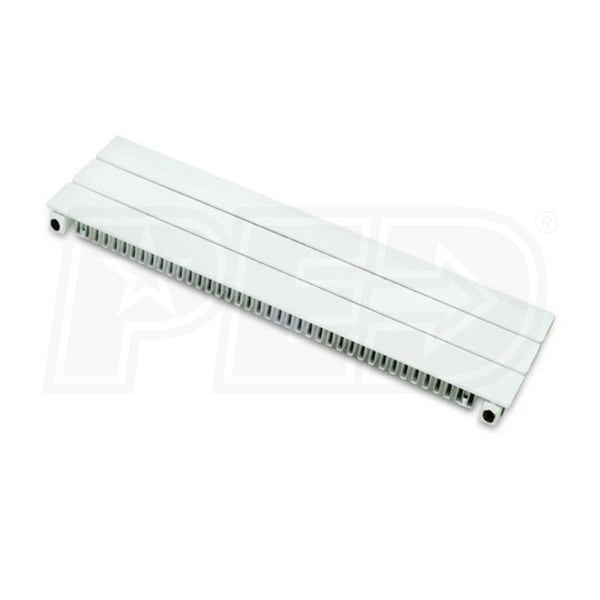

Runtal UF - 10,010 BTU - Hydronic Baseboard Radiator - 9" H - 156" W - 2" D

Model:

UF-3-156

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Runtal UF - 10,010 BTU - Hydronic Baseboard Radiator - 9
Runtal UF - 10,010 BTU - Hydronic Baseboard Radiator - 9" H - 156" W - 2" D
Model: UF-3-156
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Runtal's impressive longevity in the radiator market speaks to the reliability and effectiveness of their products. The UF line is Runtal's flagship horizontal panel radiator line. They are available in a variety of heights and lengths, so it is incredibly easy to design a UF system that suits your specific application. The UF-3-156 is a 13 feet hydronic baseboard capable of supplying 10,010 BTU of heating. These baseboards utilize Runtal's famous flat panel design that provides maximum surface area for efficient heating. Convenient piping options make it easy to connect multiple UF radiators and scale your system to provide ideal comfort in any space. If you're looking for an attractive and impressive hydronic heating solution, Runtal's UF series is the choice to make.
  • Attractive and Durable
  • Runtal prides itself on producing stylish, dependable radiators and the UF is no exception. Its clean, neutral design looks at home on any wall and with 10 radiator finishes available, it's easy to match your decor.
  • Low Profile
  • With a depth of 2
  • Quick Installation
  • Runtal's hydronic baseboards are incredibly easy to install. The combination of bottom and side connection options means that the UF series can be piped in a total of eight different configurations.
  • Exceptional Efficiency
  • Energy waste is a drain on your wallet that can be avoided with Runtal. Between the flat tube heat exchanger and the welded-steel construction, Runtal developed a radiator design that transfers the most possible heat into your space.
  • An Easy Upgrade
  • Improving the efficiency and reducing the temperature variance of an existing hydronic system is easy with Runtal's UF hydronic baseboards. They may be used as a direct replacement for both fin-tube and cast iron baseboards.
  • Application Versatility
  • The UF-3-156 may be used with any water temperature between 120 and 190 degrees Fahrenheit. This means that they are capable of being used as your primary heat source or as a supplement to another source.
  • Product Includes
  • (1) Runtal UF-3-156 Hydronic Baseboard Radiator
  • (1) Mounting Hardware Package
  • (1) Air Vent
  • Product Note
    Displayed lead time is for 9010R Runtal White. Orders with other colors are built to order and take four to six weeks to ship out. Built to order products are not eligible for returns, refunds, or cancellations. Please contact us with any questions prior to placing your order.

Specifications

UF-3-156
specs product image PID-69290
General Information
Type
Baseboard
Product Line
UF
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
With Fins
Yes
Connection Type
NPT
Material
Steel
Piping Configuration
Bottom or Side (AB)
Additional Model Numbers

UF-3-156-9010R, UF-3-156

Performance
Heating BTU
10000
Heating Capacity
10010 BTU
Dimensions
Supply Connection
1/2 Inch
Return Connection
1/2 Inch
Product Height
9 Inches
Product Width
156 Inches
Product Depth
2 Inches
Product Weight
66.3 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
