Runtal UF - 5,720 BTU - Hot Water Panel Radiator - 18" H - 48" W - 2" D
Model:
UF-6-48-3005 WINE RED
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Attractive and Durable
- Runtal prides itself on producing stylish, dependable radiators and the UF is no exception. Its clean, neutral design looks at home on any wall and with 10 radiator finishes available, it's easy to match your decor.
- Low Profile

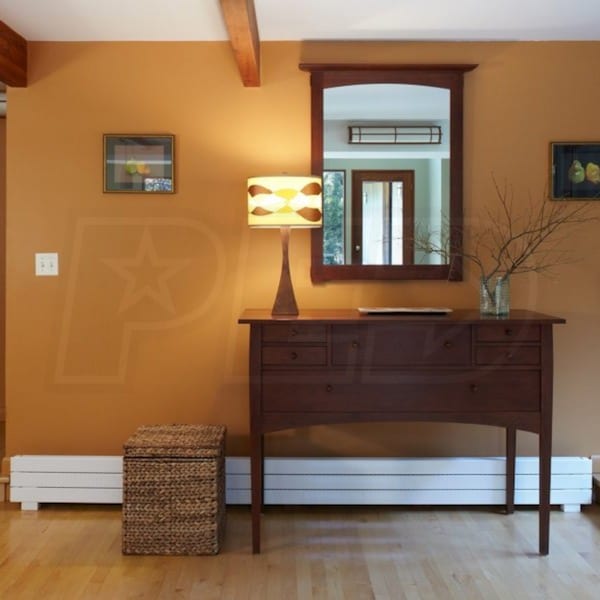

- With a depth of only 2", the UF-6-48 is perfect for homes looking for unobtrusive hydronic comfort. Mounting beneath a window is an great way to mitigate drafts, but a UF radiator can be installed anywhere with an inch of clearance above the floor.
- Quick Installation
- The combination of bottom and side connection options with eight possible piping configurations affords you flexibility when selecting an installation location and makes it simple to connect multiple units in a series for larger applications.
- Exceptional Efficiency

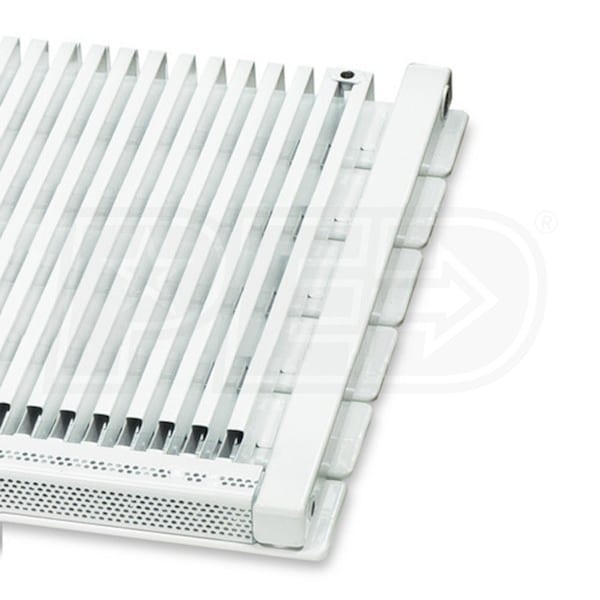

- Energy waste is a drain on your wallet that can be avoided with Runtal. Between the flat tube heat exchanger and the welded-steel construction, Runtal developed a radiator design that transfers the most possible heat into your space.
- An Easy Upgrade
- Improving the efficiency and reducing the temperature variance of an existing hydronic system is easy with Runtal's UF hydronic wall panels. They may be used as a direct replacement for both fin-tube and cast iron radiators.
- Application Versatility
- The UF-6-48 may be used with any water temperature between 120 and 190 degrees Fahrenheit. This means that they are capable of being used as your primary heat source or as a supplement to another source.
- Product Includes
- (1) Runtal UF-6-48 Hydronic Panel Radiator
- (1) Mounting Hardware Package
- (1) Air Vent

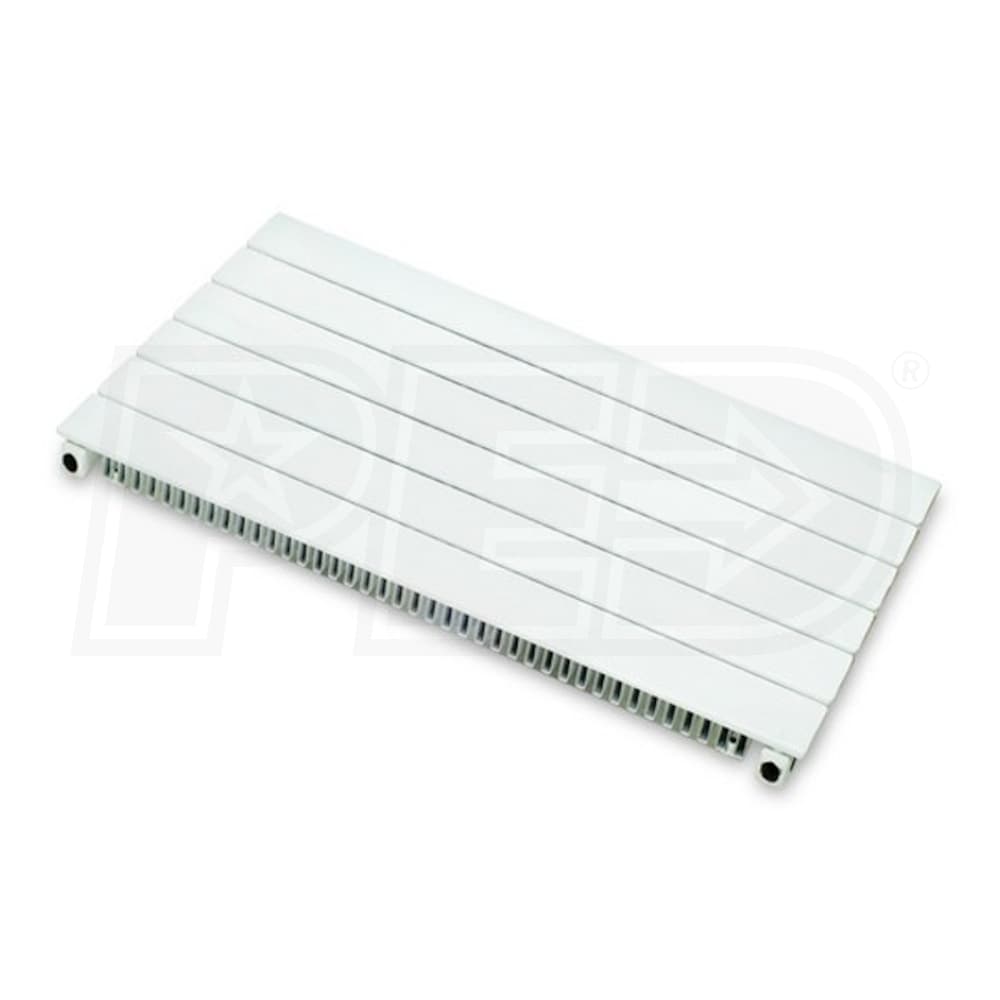

Runtal's impressive longevity in the radiator market speaks to the reliability and effectiveness of their products. The UF line is Runtal's flagship horizontal panel radiator line. They are available in a variety of heights and lengths, so it is incredibly easy to design a UF system that suits your specific application. The UF-6-48 is a 4 foot hydronic panel radiator capable of supplying 5,720 BTU of heating. These radiators utilize Runtal's famous flat panel design that provides maximum surface area for efficient heating. Convenient piping options make it easy to connect multiple UF radiators and scale your system to provide ideal comfort in any space. If you're looking for an attractive and impressive hydronic heating solution, Runtal's UF series is the choice to make.
Product Note
Orders with special colors are made to order and take four to six weeks to ship out. Built to order products are not eligible for returns, refunds, or cancellations. Please contact us with any questions prior to placing your order. Cancelled orders for radiators painted in any color other than Runtal White are non-returnable, non-refundable, and non-cancellable.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
UF-6-48-3005 WINE RED
Overview
Product Category
Radiators
General Information
Type
Panel
Product Line
UF
Product Category
Radiators
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
With Fins
Yes
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Supply Connection Type
NPT
Material
Steel
Return Connection Type
NPT
Piping Configuration
Bottom or Side (AB)
Performance
Heating BTU
5720
Dimensions
Supply Connection
1/2 Inch
Return Connection
1/2 Inch
Product Height
18 Inches
Product Width
48 Inches
Product Depth
2 Inches
Product Weight
46.8 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
