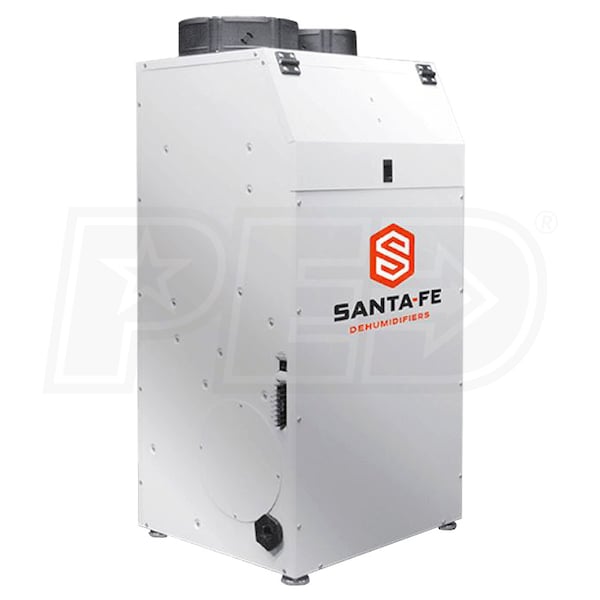

Santa Fe Ultra120V - Whole House Dehumidifier - 124 Pints/Day at 80° F/60% RH
Model:
4036400
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Vertical Design
- The Ultra120V has a vertical orientation with a dual exhaust design making it perfect for rooms where floor space is limited such as basements and mechanical rooms.
- Filter Housing
- With an integral filter housing, the Ultra120V can hold up to 6" of filter media providing a variety of filtration options, including MERV 14.
- Transformer Protection
- The Ultra120V features a push button reset to protect the transformer.
- Optional Ducting
- The Santa Fe Ultra series dehumidifiers provide ventilation options for fresh outdoor air to maintain high oxygen content in your home.
- Low Temperature Operation
- The Ultra120V can operate in temperatures as low as 49 degrees, providing year-round comfort.
- Ideal Applications
- Basements
- Garages
- Workshops
- Whole Home
- Product Includes
- (1) Ultra120V Dehumidifier
- (4) Leveling Feet
- (1) 6" Outdoor Air Intake Duct
- (1) 8" Return Duct
- (2) 8" Supply Duct
- (1) 8" Duct Cover
- (1) MERV-13 Filter
Santa Fe dehumidifiers are designed to provide a healthy and comfortable home by reducing moisture levels to improve indoor air quality. Ultra Series dehumidifiers work with your HVAC system to circulate the air in the home. The Ultra120V is a high-performance dehumidifier ideal for moisture removal of entire homes of up to 3,000 sq. ft. With the MERV 13 filter, the Ultra120V provides superior air filtration. The Ultra120V has the capacity to remove up to 124 pints of moisture per day and features an integral filter housing that allows a variety of filter options including MERV 14.
Specifications
4036400
General Information
Type
Dehumidifier
Product Line
Ultra
Product Category
Dehumidifiers
Refrigerant Type
R-410A
Connection Type
Threaded Female NPT
Installation Type
Ducted
Performance
Dehumidifier Capacity at 80F/60% RH
124 Pints/Day
Cooling Power Input
680 Watts
Filter Efficiency
13 MERV
Maximum Air Flow
445 CFM
Minimum Air Flow
360 CFM
Minimum Operating Temperature
49 F
Maximum Operating Temperature
95 F
Electrical Data
Plug Type
NEMA 5-15P
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15 Amps
Current Draw
5.8 Amps
Dimensions
Condensate Drain Size
3/4 Inch
Duct Connection
8 Inches
Product Height
43 1/2 Inches
Product Width
26 3/4 Inches
Product Depth
18 3/4 Inches
Product Weight
120 Pounds
Shipping Weight
145 Pounds
Power Cord Length
9 Feet
Certifications
ETL Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
6 Years
