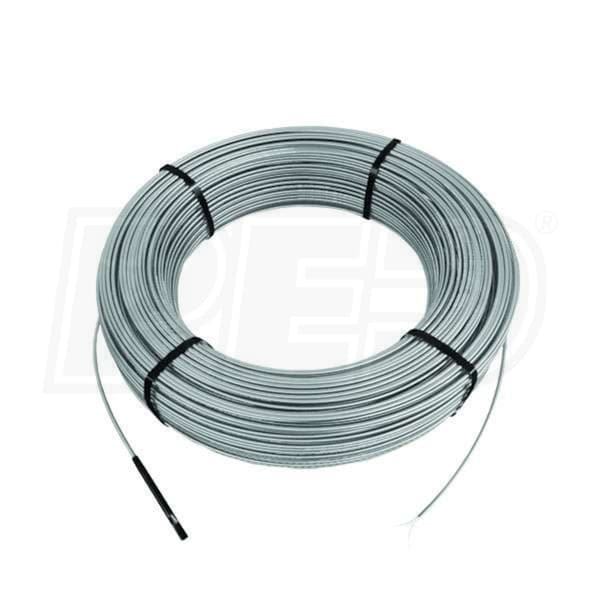

Schluter DITRA-HEAT-E-HK - 102.7 Sq. Ft. - Radiant Floor Heating Wire - 240V - 339.4 Ft. Length
Model:
DHEHK240103
+
Share This Product
Features
- Strong and Robust Cable
- Schluter-DITRA-HEAT heating cables are very well manufactured, and have the durability they need to stand the test of time.
- Versatile Layout
- The cables can be laid in nearly any layout imaginable inside of the DITRA-HEAT membrane sheets, allowing you to fit your radiant floor perfectly to your tiled room's layout.
- No Clips or Fasteners Needed
- The heating cables lock into the DITRA-HEAT membrane without any other accessories or tools, making clips, fasteners, and other wire stabilizers a thing of the past.

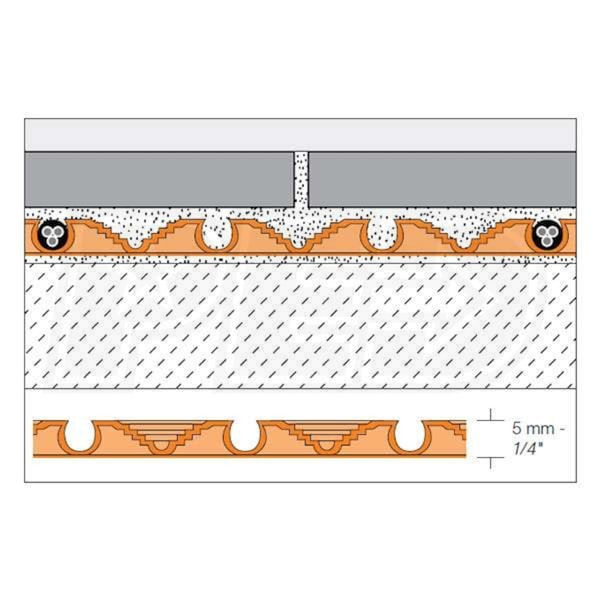

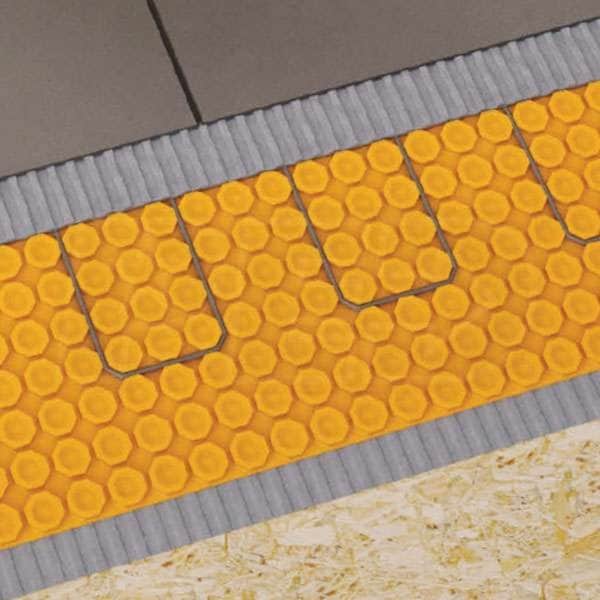

Schluter-DITRA-HEAT is a modern, advanced under-tile floor heating system. A significant refinement on the underfloor heating systems from the last decade, it is thicker, easier to install, and is entirely waterproof. This is a roll of the heating wire used with the new DITRA-HEAT system. It is designed to be laid into the DITRA-HEAT underfloor tile membrane, and works with DITRA-HEAT thermostats to provide gentle, even heat to the tile it has been laid under. A floor temperature sensor is included with each heating wire.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DHEHK240103

Overview
Product Category
Radiant Heating
General Information
Type
Electric Radiant Heating Cable
Product Line
DITRA-HEAT-E-HK
Product Category
Radiant Heating
Application
Floor Heating
Electrical Data
Voltage
240 Volts
Power Consumption
1300 Watts
Phase
1
Frequency
60 Hz
Current Draw
5.4 Amps
Power Draw per Area
12.7 Watts/Sq. Ft.
Dimensions
Area Covered
102.7 Square Feet
Product Width
3/16 Inch
Product Length
4072 19/24 Inches
Shipping Weight
4 Pounds
Heating Cable Length
339.4 Feet
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Reviews
(4)
Schluter DHEHK240103 Reviews & Ratings

Great product
By Gary S
Brooklyn, Wisconsin
Purchased 07/15/2018 |
Review Posted 08/06/2018
Family enjoys warm floors in winter.
Gary S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

It's harder than it looks
By Lou G.
Smithtown, New York
Purchased 09/09/2016 |
Review Posted 10/08/2016
I recommend that you speak to a phone rep before placing your order. I didn't and fell into a sticky situation. In order to secure the full 15 year warranty om the product, you must check the cable for leakage to ground through the insulation of the wires. Leakage will cause the GFCI in the circuit to shut the heating cable off and render it useless.
You must use a megaohmeter capable of sending a 1000 Volt pulse through the wire and capable of reading a 1000 megaohm result. These meters,if reliable, cost at least $300. I couldn't find a local licensed electrician or AC tech who had one. Rental centers never heard of them. Better check this out first or settle for a 10 year warranty.
You must use a megaohmeter capable of sending a 1000 Volt pulse through the wire and capable of reading a 1000 megaohm result. These meters,if reliable, cost at least $300. I couldn't find a local licensed electrician or AC tech who had one. Rental centers never heard of them. Better check this out first or settle for a 10 year warranty.
Lou G. Does Not Recommend This
Was this review helpful?
Rating Breakdown
1/5
1/5

Great Product!
By Suzanne K.
Billerica, Massachusetts
Purchased 12/15/2015 |
Review Posted 02/26/2016
Easy to install!!!
Suzanne K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Excellent Service
By Wendy M.
IL
Review Posted 10/02/2014
At this point I cannot review performance as we have not yet used the heated floor. I will say that I am impressed with the cost of this product from eComfort. We surveyed several options for purchasing the DitraHeat and eComfort was significantly less than the other options. I was concerned about delivery time and made a call to customer service with my inquiry. They were very helpful and promised a return call the next day to advise on the shipping status of my order. That call was made to me as promised and, although initially a delay was possible, my order shipped the next day and was received on time and in good condition.
I will add to this review in a couple of months, once we've used the heating system.
I will add to this review in a couple of months, once we've used the heating system.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
