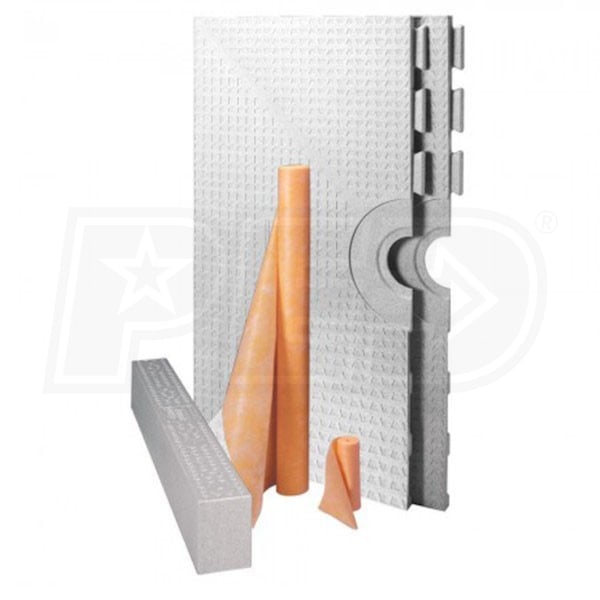

Schluter KERDI-SHOWER-KIT - 48" x 48" Tray - Shower Kit - Center Drain - PVC Flange - Oil Rubbed Bronze Steel

Model:

KK122PVCEOB

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Schluter KERDI-SHOWER-KIT - 48
Schluter KERDI-SHOWER-KIT - 48" x 48" Tray - Shower Kit - Center Drain - PVC Flange - Oil Rubbed Bronze Steel
Model: KK122PVCEOB
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

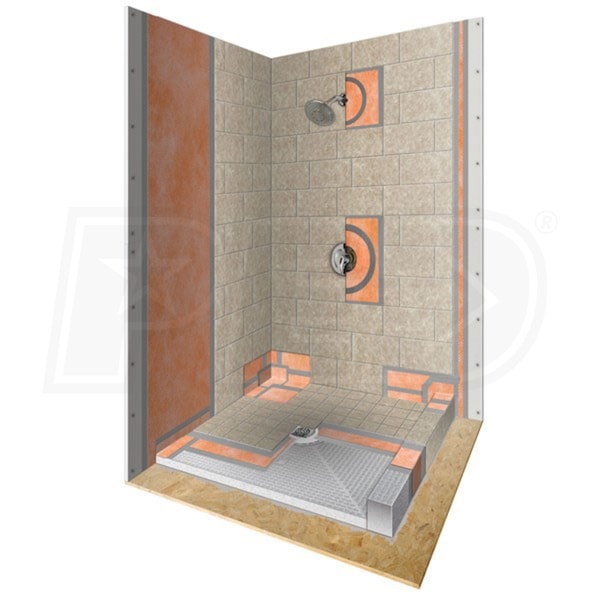

    Looking to build your dream shower but don't know where to start? The KERDI-SHOWER-KIT is an all-inclusive shower construction package containing an integrated set of choice components from the Schluter shower family of products. The included SCHLUTER-SHOWER-ST shower tray and SCHLUTER-SHOWER-SC shower curb provide solid support and are ready to be tiled on straight out of the box. The KERDI waterproofing membrane contained in the kit has an extremely low vapor permeance, giving your shower prolonged resistance against both mold and corrosion.
  • PVC Plastic Flange
  • The KERDI-DRAIN included in this kit uses rigid PVC plastic in its flange construction, guaranteeing years of durability and reliability.
  • Oil-Rubbed Bronze Grate Finish
  • The oil-rubbed bronze finish used on the grate makes your drain attractive and eye catching.
  • Included Waterproofing Membrane and Seals
  • The KERDI-SHOWER-KIT includes enough KERDI waterproofing membrane to properly waterproof the shower and its entire surrounding area. Also included are two KERDI-SEAL membranes, one for a pipe and one for a mixing valve.
  • Prefabricated Substrate Tray and Shower Curb
  • Included in this shower kit is a KERDI-SHOWER-ST shower tray and KERDI-SHOWER-SC shower curb. These are made of expanded polystyrene foam and are useable as a tile substrate from the moment of installation.

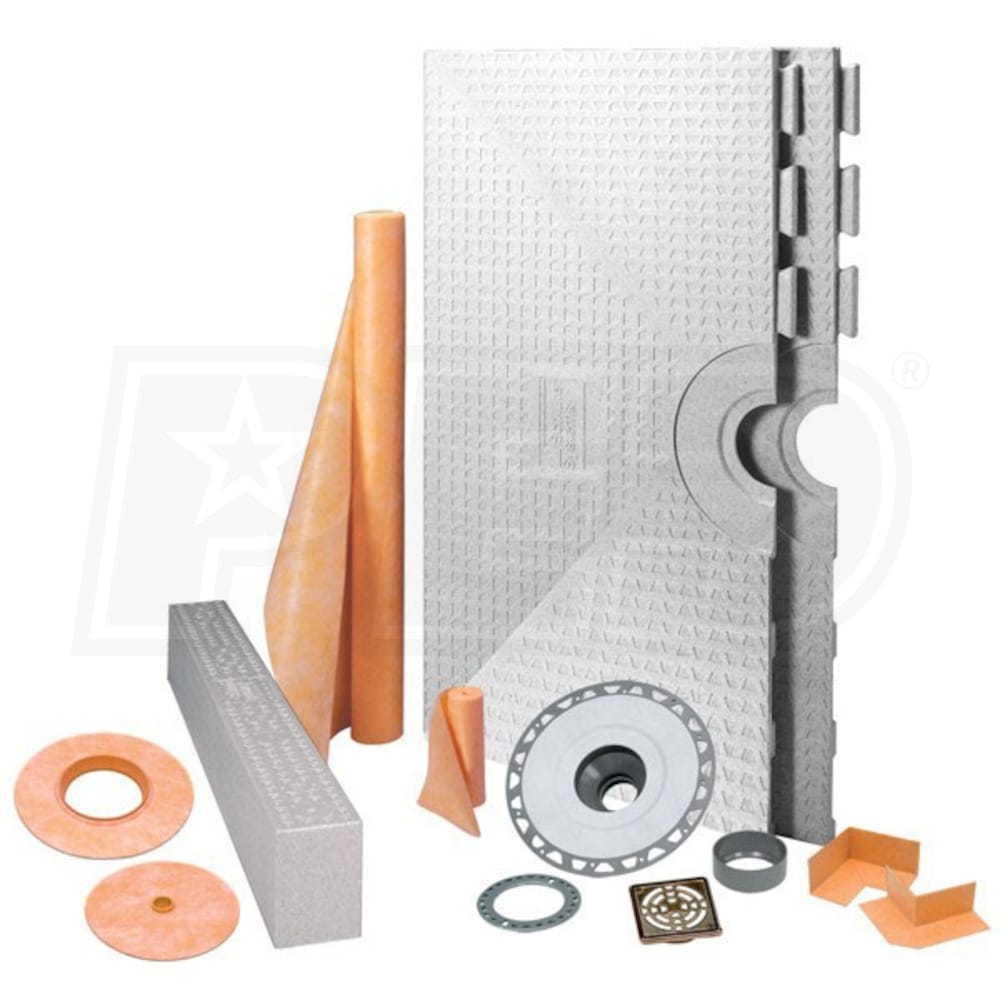

  • Product Includes
  • KERDI-DRAIN KD2/PVC/EOB Oil Rubbed Bronze Grate Drain with 2" Outlet

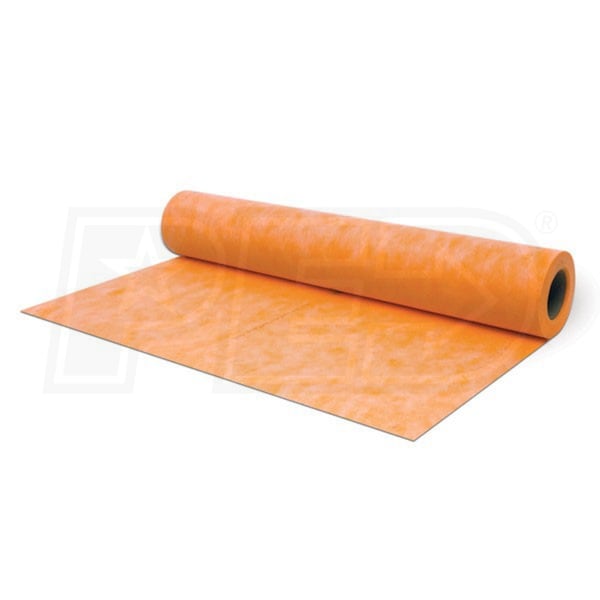

  • (1) KERDI 3' 3" x 39' 4" Waterproofing Membrane Roll
  • (1) KERDI 5" x 33' Waterproofing Membrane Strip
  • (4) KERDI-KERECK-F Preformed Inside Waterproofing Corners
  • (2) KERDI-KERECK-F Preformed Outside Waterproofing Corners
  • (1) KERDI-SEAL-PS Pipe Seal
  • (1) KERDI-SEAL-MV Mixing Valve Seal
  • (1) KERDI-SHOWER-SC 48" x 6" x 4-1/2" Shower Curb
  • (1) KERDI-SHOWER-ST 48" x 48" Shower Tray
  • Product Includes
    • (1) Schluter KERDI-SHOWER-KIT - 48" x 48" Tray - Shower Kit - Center Drain Placement - Less Drain (KK122)
    • (1) Schluter KERDI-DRAIN - PVC Flange - Drain Kit - 2" Drain Outlet - 4" Square Grate - Oil Rubbed Bronze Steel (KD2/PVC/EOB)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Schluter KERDI-SHOWER-KIT - 48" x 48" Tray - Shower Kit - Center Drain Placement - Less Drain (KK122)
  • (1) Schluter KERDI-DRAIN - PVC Flange - Drain Kit - 2" Drain Outlet - 4" Square Grate - Oil Rubbed Bronze Steel (KD2/PVC/EOB)
KK122PVCEOB
specs product image PID-56062
General Information
Product Line
KERDI
Product Sub-line
SHOWER-KIT
Drain Location
Center
Flange Material
PVC
Finish
Oil Rubbed Bronze
Dimensions
Base Length
48 Inches
Base Width
48 Inches
Product Weight
20 Pounds
Shipping Width
27 Inches
Shipping Height
9 Inches
Shipping Depth
50 Inches
General Information
Product Line
KERDI
Product Sub-line
SHOWER-KIT
Drain Location
Center
Dimensions
Base Length
48 Inches
Base Width
48 Inches
Membrane Length
472 Inches
Curb Height
6 Inches
Curb Width
4 1/2 Inches
Curb Length
48 Inches
Product Weight
20 Pounds
Shipping Height
9 Inches
Shipping Width
27 Inches
Shipping Depth
50 Inches
KD2/PVC/EOB
General Information
Product Line
KERDI
Product Sub-line
DRAIN
Flange Material
PVC
Material
Stainless Steel
Grate Shape
Square
Grate Finish
Oil Rubbed Bronze
Dimensions
Drain Outlet Diameter
2 Inches
Grate Width
4 Inches
Product Height
3 15/16 Inches
Product Width
11 13/16 Inches
Product Depth
11 13/16 Inches
Product Weight
1.8 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
