Schluter KERDI-SHOWER-KIT - 32" x 60" Tray - Shower Kit - Center Drain - PVC Flange - Brushed Nickel Anodized Aluminum
Model:
KK81152PVCATGB
+
Share This Product
Features
- PVC Plastic Flange

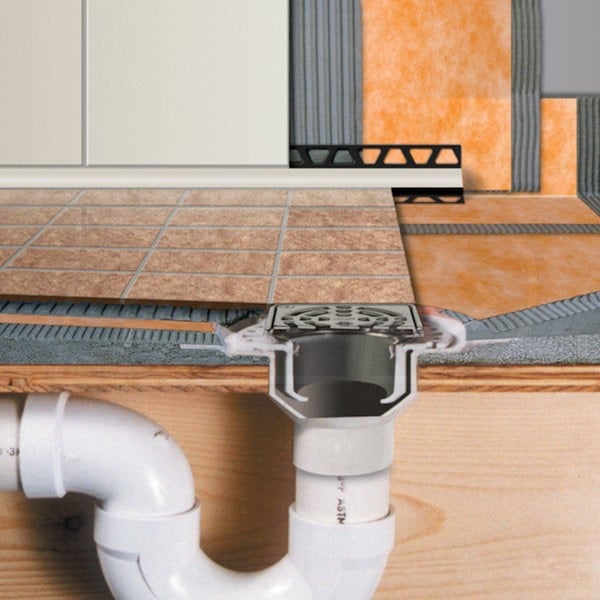

- The KERDI-DRAIN included in this kit uses rigid PVC plastic in its flange construction, guaranteeing years of durability and reliability.

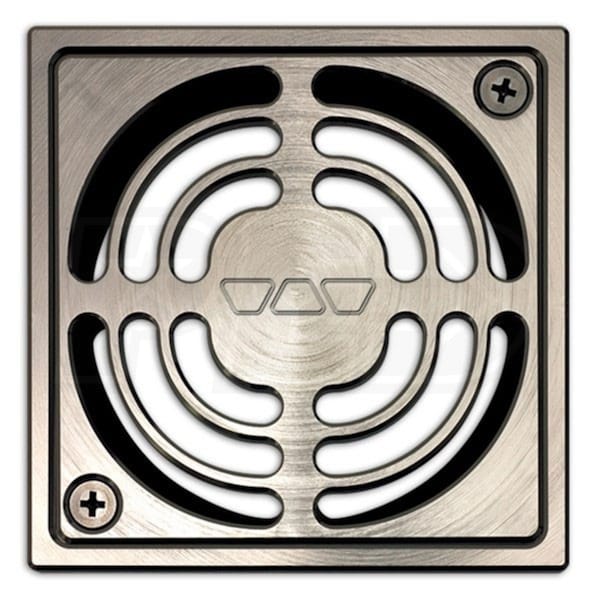

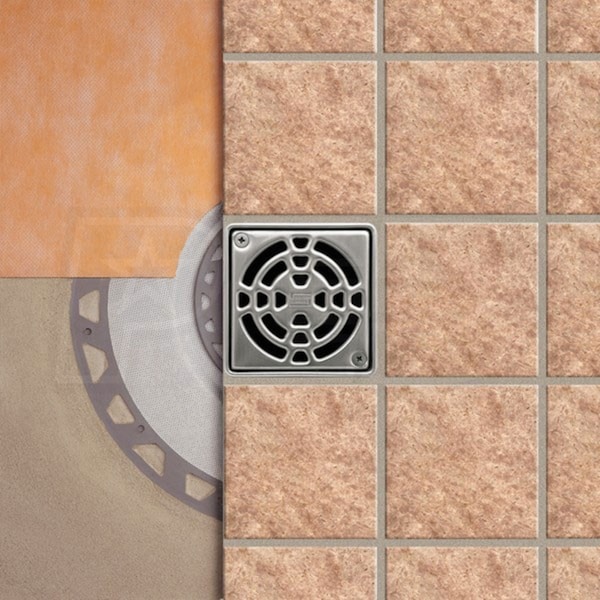

- Brushed Nickel Grate Finish
- The brushed nickel finish used on the grate makes your drain attractive and eye catching.
- Included Waterproofing Membrane and Seals
- The KERDI-SHOWER-KIT includes enough KERDI waterproofing membrane to properly waterproof the shower and its entire surrounding area. Also included are two KERDI-SEAL membranes, one for a pipe and one for a mixing valve.
- Prefabricated Substrate Tray and Shower Curb
- Included in this shower kit is a KERDI-SHOWER-ST shower tray and KERDI-SHOWER-SC shower curb. These are made of expanded polystyrene foam and are useable as a tile substrate from the moment of installation.

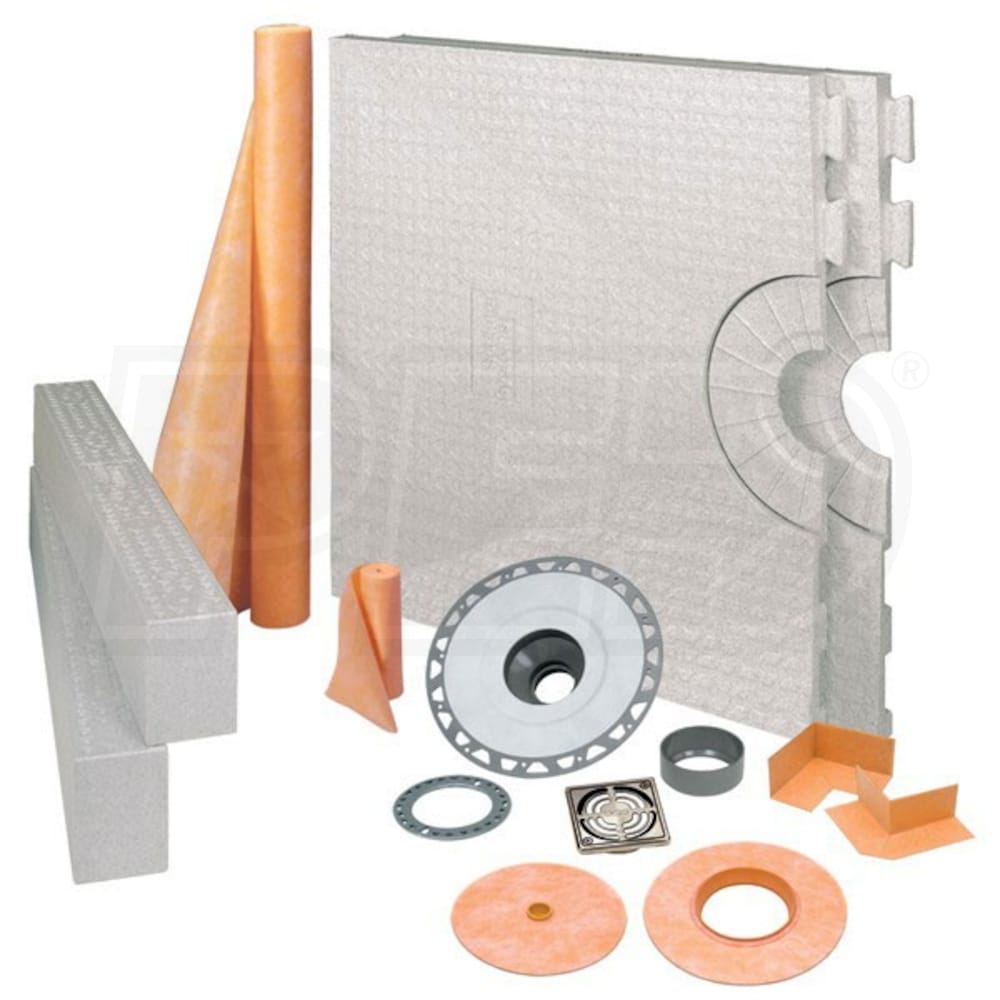

- Product Includes
- KERDI-DRAIN KD2/PVC/AMGB Brushed Nickel Grate Drain with 2" Outlet
- (1) KERDI 3' 3" x 33' Waterproofing Membrane Roll
- (1) KERDI 5" x 33' Waterproofing Membrane Strip
- (4) KERDI-KERECK-F Preformed Inside Waterproofing Corners
- (2) KERDI-KERECK-F Preformed Outside Waterproofing Corners
- (1) KERDI-SEAL-PS Pipe Seal
- (1) KERDI-SEAL-MV Mixing Valve Seal

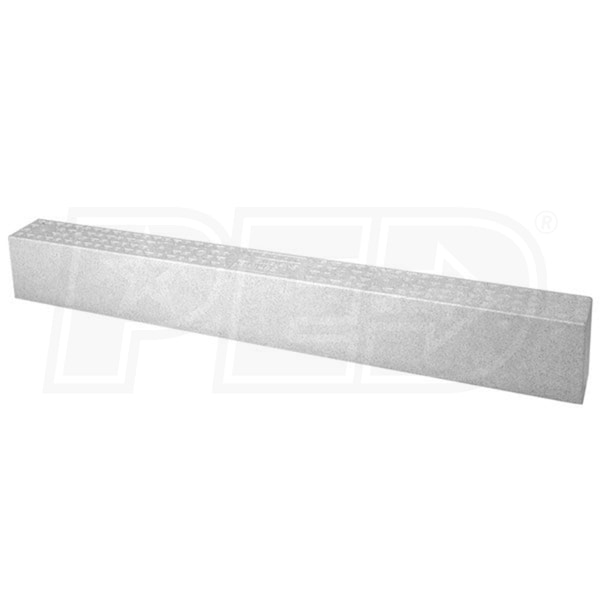

- (2) KERDI-SHOWER-SC 48" x 6" x 4-1/2" Shower Curb
- (1) KERDI-SHOWER-ST 32" x 60" Shower Tray (Center Drain)
- (1) Schluter KERDI-SHOWER-KIT - 32" x 60" Tray - Shower Kit - Center Drain Placement - Less Drain (KK81152)
- (1) Schluter KERDI-DRAIN - PVC Flange - Drain Kit - 2" Drain Outlet - 4" Square Grate - Brushed Nickel Anodized Aluminum (KD2/PVC/ATGB)
Looking to build your dream shower but don't know where to start? The KERDI-SHOWER-KIT is an all-inclusive shower construction package containing an integrated set of choice components from the Schluter shower family of products. The included SCHLUTER-SHOWER-ST shower tray and SCHLUTER-SHOWER-SC shower curb provide solid support and are ready to be tiled on straight out of the box. The KERDI waterproofing membrane contained in the kit has an extremely low vapor permeance, giving your shower prolonged resistance against both mold and corrosion.
Product Includes
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Schluter KERDI-SHOWER-KIT - 32" x 60" Tray - Shower Kit - Center Drain Placement - Less Drain (KK81152)
- (1) Schluter KERDI-DRAIN - PVC Flange - Drain Kit - 2" Drain Outlet - 4" Square Grate - Brushed Nickel Anodized Aluminum (KD2/PVC/ATGB)
KK81152PVCATGB
General Information
Product Line
KERDI
Product Sub-line
SHOWER-KIT
Drain Location
Center
Flange Material
PVC
Finish
Brushed Nickel
Dimensions
Base Length
32 Inches
Base Width
60 Inches
Product Weight
22 Pounds
Shipping Width
32 Inches
Shipping Height
9 Inches
Shipping Depth
48 Inches
KK81152
General Information
Product Line
KERDI
Product Sub-line
SHOWER-KIT
Drain Location
Center
Dimensions
Base Length
32 Inches
Base Width
60 Inches
Membrane Length
396 Inches
Curb Width
4 1/2 Inches
Curb Height
6 Inches
Curb Length
48 Inches
Product Weight
22 Pounds
Shipping Height
9 Inches
Shipping Width
32 Inches
Shipping Depth
48 Inches
KD2/PVC/ATGB
General Information
Product Line
KERDI
Product Sub-line
DRAIN
Flange Material
PVC
Material
Anodized Aluminum
Grate Shape
Square
Grate Finish
Brushed Nickel
Dimensions
Drain Outlet Diameter
2 Inches
Grate Width
4 Inches
Product Height
3 15/16 Inches
Product Width
11 13/16 Inches
Product Depth
11 13/16 Inches
Product Weight
2.18 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(14)
Schluter KK81152PVCATGB Reviews & Ratings
Customer Rating
5.00
(14 Ratings)
5
(14)
(14)4(0)
(0)3(0)
(0)2(0)
(0)1(0)
(0)
Overall, Very Nice Product
By James L.
La Crescent, Minnesota
Purchased 06/22/2017 |
Review Posted 08/04/2017
After I purchased the system I found an installer who said he would not use any other product.
James L. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
4/5
Pros:
Easy To Use, Light Weight, I'd Buy It Again
Cons:
Expensive, Mixing Valve Covering To Small
Works great, but rather expensive
By Roland C.
Tennessee
Purchased 11/11/2016 |
Review Posted 03/07/2017
Works great. By the time I bought the kit, cubbie shelf, and corner seat, it was rather expensive.
Videos are good to show you how to install, but make it look a lot easier than it is. Areas around corners of corner bench and around curb are difficult when you have up to 3 layers of corner pieces. Makes it difficult to set tile straight.
When done, only thing visible is the drain, which looks good.
Videos are good to show you how to install, but make it look a lot easier than it is. Areas around corners of corner bench and around curb are difficult when you have up to 3 layers of corner pieces. Makes it difficult to set tile straight.
When done, only thing visible is the drain, which looks good.
Roland C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
3/5
Easy peasy, chicken squeezy!!
By David C.
West Unity,, Ohio
Purchased 08/23/2016 |
Review Posted 10/26/2016
What a time and money saver! No more head aches with a mud bed. This is a definite buy again.
David C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
3/5
Redoing our shower pan
By Libby S.
North Carolina
Purchased 07/15/2016 |
Review Posted 08/06/2016
Taking out a mortar shower pan is definitely zero fun. But installing the Kerdi shower system was a breeze. I watched all the videos, and today we have a new shower. eComfort was easy to work with. They kept me informed with shipment and tracking information. I received my order in a very timely manner. I wouldn't hesitate to work with them again.
Libby S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
kerdi shower kit
By Stanley R.
IL
Review Posted 02/17/2015
I have used these before on a 2nd floor. Really was looking for something to put tile on rather than a mortar base. These are great, east to cut, easy to put down fabric and then tile using unmodified thinset. It's been several years and still looks good, water drains well.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Product Cost
By Jeffrey in York, PA
IL
Review Posted 01/02/2015
Love the Schluter products. I have used the Kerdi llner for years and attended a technical training in VA. Have learned that the 32"x60" Shower Kit is available from my local Home Depot for $499 + tax. Free shipping is nice but I'm at the home improvement stores every day. Probably won't buy on-line again unless the pricing is lowered. Thanks for the opportunity to review
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Great stuff
By Tom
IL
Review Posted 12/12/2014
I have used this product before. I would not do a shower using any other product. You spend a lot of time and $ doing a new shower, you should do it right. With this, I know everything is sloped properly, the products fit together and it will be waterproof. We used the shower for a few weeks while tile was on its way last time as the shower is watertight, even without tile.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Good Product
By Martin
IL
Review Posted 10/05/2014
The Kerdi shower kit installed exactly as it was supposed to. Great product and helpful vendor.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
CEO Blue Diamond Remodeling
By George
IL
Review Posted 08/21/2014
This product is great. Easy to adjust to custom fit your application Shower curb is too tall, take 2 inches off the height with a table saw.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Owner
By Thomas
IL
Review Posted 07/25/2014
we only use this system for all of our shower installation. no guessing, no leaks this is a complete system. no brainier for us if any one whats a custom shower we install Kerdi shower kit. as a extra leak protection we use RedGurad on durorock and than install kedri kit.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
