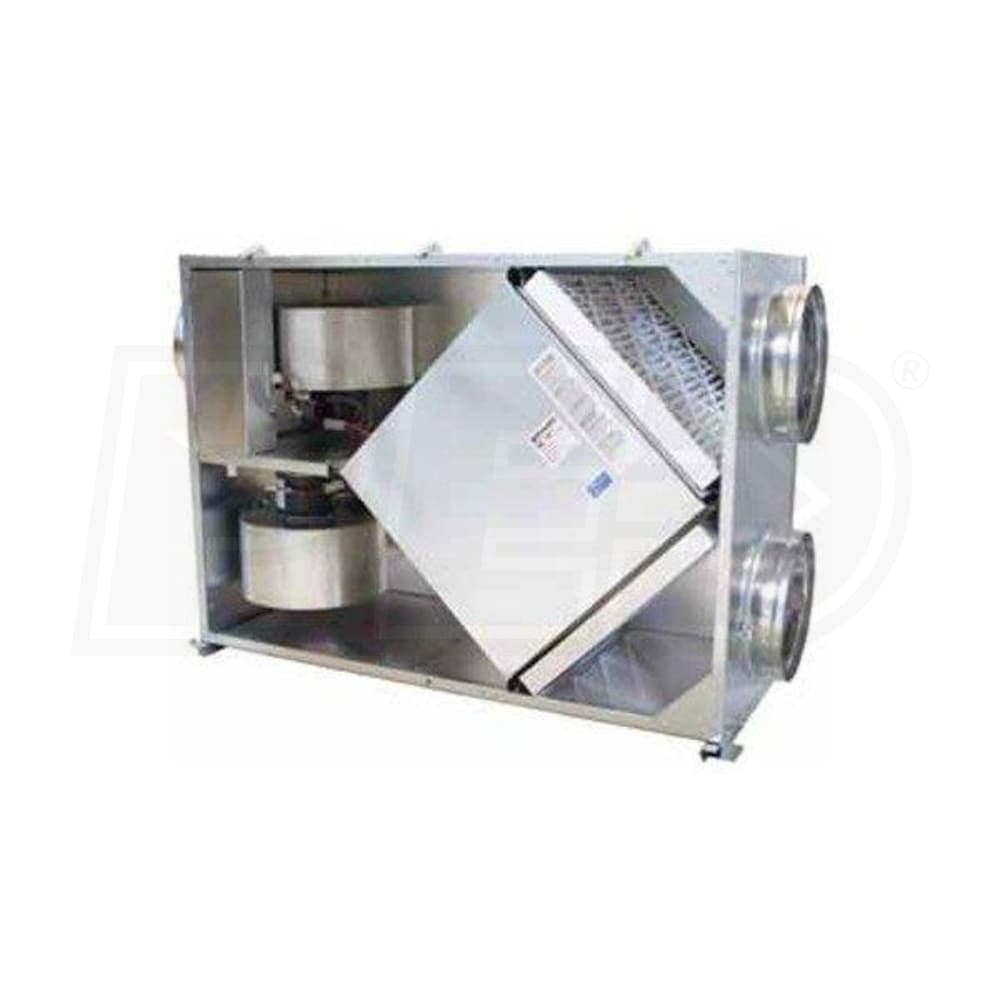

Soler & Palau TR Series - 800 CFM - Energy Recovery Ventilator (ERV) - All Climates - 230V - Side Ports - 12" Duct
Model:
TRC800-230
+
Share This Product
Features
- Soler & Palau TRC800-230 Features
- AHRI certified performance data for efficiency and cross leakage
- UL tested flammability and smoke generation that meets NFPA 90A and 90B test standards for commercial applications
- Easy installation and service
- Easiest maintenance of any ERV
- 2 MERV-8 filters
- Non-Fused disconnect
- Transformer/relay package allowing simple on/off control
- Access doors for easy access to blowers, core and filters
- Integral mounting flange and hanging bracket system
- 2 Direct Drive, TEFC, Premium Efficient blower motors
- Fully insulated case
- Large cores for high efficiency
- No condensate pan or drain required
Classified as "The Ultimate ERV", this series is designed and certified for use in all climates, from areas prone to hot, humid summers to areas with the most extreme winters. The Models TRC exhaust stale air, bring in fresh air and save energy year-round. S&P's TRCs moderate extremes in both temperature and humidity, creating a comfortable indoor environment. The unique moisture transfer capability of the S&P core also eliminates condensation and frost build up in most applications. No mechanical or electrical defrost systems are needed, which means higher heat recovery efficiencies, easier installation and more reliable operation.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
TRC800-230
Overview
Product Category
Energy Recovery Ventilators (ERVs)
UPC
812482010596
General Information
Type
ERV
Product Line
TR
Product Category
Energy Recovery Ventilators (ERVs)
Port Location
Side
Performance
Maximum Air Flow
970 CFM
Minimum Air Flow
480 CFM
Electrical Data
Voltage
230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
12 Inches
Product Height
40 Inches
Product Width
48 Inches
Product Depth
62 Inches
Product Weight
211 Pounds
Shipping Weight
222 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
