Features
- Maintenance Free
- Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
- Replaceable Cartridge Design

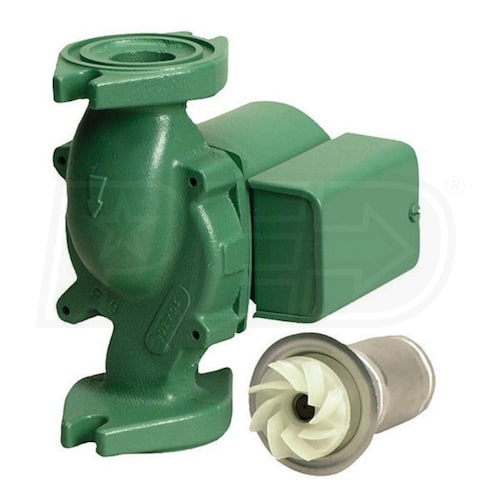

- All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
- High Capacity, High Efficiency
- In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
- Typical Product Applications
- Hydronic Heating
- Radiant Heating
- Primary/Secondary Loops
- Indirect Water Heaters
- Chilled Water Cooling
Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. The 0010-F is a high velocity circulator built to move water quickly through hydronic systems. It is best suited for larger homes and smaller businesses with high volume, medium head applications. The universal flange-to-flange dimension of the 0010-F makes it quick to install, even if you are replacing a different pump. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.
Product Note
Cast iron cannot be used in domestic hot water or potable water applications.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
0010-F3
Overview
Product Category
Boiler Accessories
UPC
687752246988
General Information
Type
Circulator
Product Line
0010 Series
Product Category
Boiler Accessories
Flange Material
Cast Iron
Motor Type
Single Speed
Connection Type
Flanged
Material
Cast Iron
Flange Orientation
Standard
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
Performance
Maximum Head
10 Feet
Maximum Flow Rate
32 GPM
Maximum Fluid Temperature
230 F
Horsepower
1/8 HP
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.1 Amps
Dimensions
Product Height
6 3/8 Inches
Product Width
5 3/8 Inches
Product Depth
7 1/4 Inches
Product Weight
10 Pounds
Shipping Weight
10 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
(4)
Taco 0010-F3 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Ken, the eComfort Product Expert
Piping in/out is 1-1/4". Existing flanges are screwed on 1-1/4" copper fittings. The distance between flange bolts is 3-3/16" (measured). Would the subject pump fit?
Hynek
from Colorado
November 16, 2015
