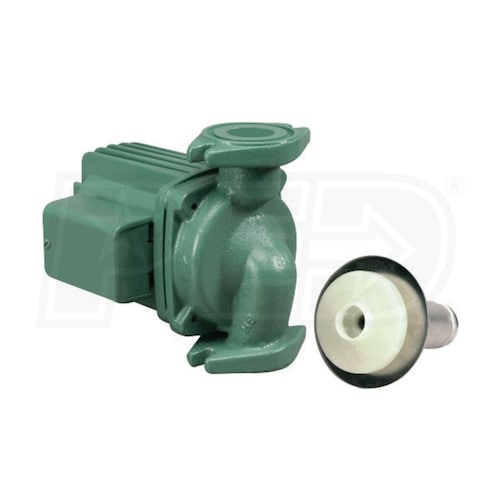

Taco 0011 - 1/8 HP - Circulator Pump - Cast Iron - Rotated Flange

Model:

0011-F4

Write A Review
$416.17
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Monday, Nov 25th
Shipping to60601
synchrony card logo
$70 / Month
Suggested monthly payments with 6 month financing.
Taco 0011 - 1/8 HP - Circulator Pump - Cast Iron - Rotated Flange
Taco 0011 - 1/8 HP - Circulator Pump - Cast Iron - Rotated Flange
Model: 0011-F4
$416.17
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. The 0011-F circulator is built to provide fast, efficient circulation for systems with a high head and moderate flow requirements. Getting proper circulation in furthest corners of large houses is no concern for the 0011-F. It also shines in lighter commercial systems. Whether you're dealing with heated or chilled water, the 0011-F provides reliable circulation. The universal flange-to-flange dimension of the 0011-F makes it quick to install, even if you are replacing a different pump. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal. In low temperature applications, protection from corrosion is provided by an anti-condensate baffle.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Closed Loop Hydronic Heating
  • Chilled Water Cooling
  • High Pressure Drop Boilers
  • Fan Coil Units
  • Heat Exchangers
  • Large Radiant Heating
  • Heat Recovery & Geothermal
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

0011-F4
specs product image PID-32910
Overview
Product Category
Boiler Accessories
UPC
687752190991
General Information
Type
Circulator
Product Line
0011 Series
Product Category
Boiler Accessories
Motor Type
Single Speed
Connection Type
Flanged
Material
Cast Iron
Flange Orientation
Rotated
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
Performance
Maximum Head
31 Feet
Maximum Flow Rate
31 GPM
Maximum Fluid Temperature
230 F
Horsepower
1/8 HP
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.76 Amps
Dimensions
Product Height
6 1/2 Inches
Product Width
5 5/8 Inches
Product Depth
7 1/2 Inches
Product Weight
12 Pounds
Shipping Weight
12 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
