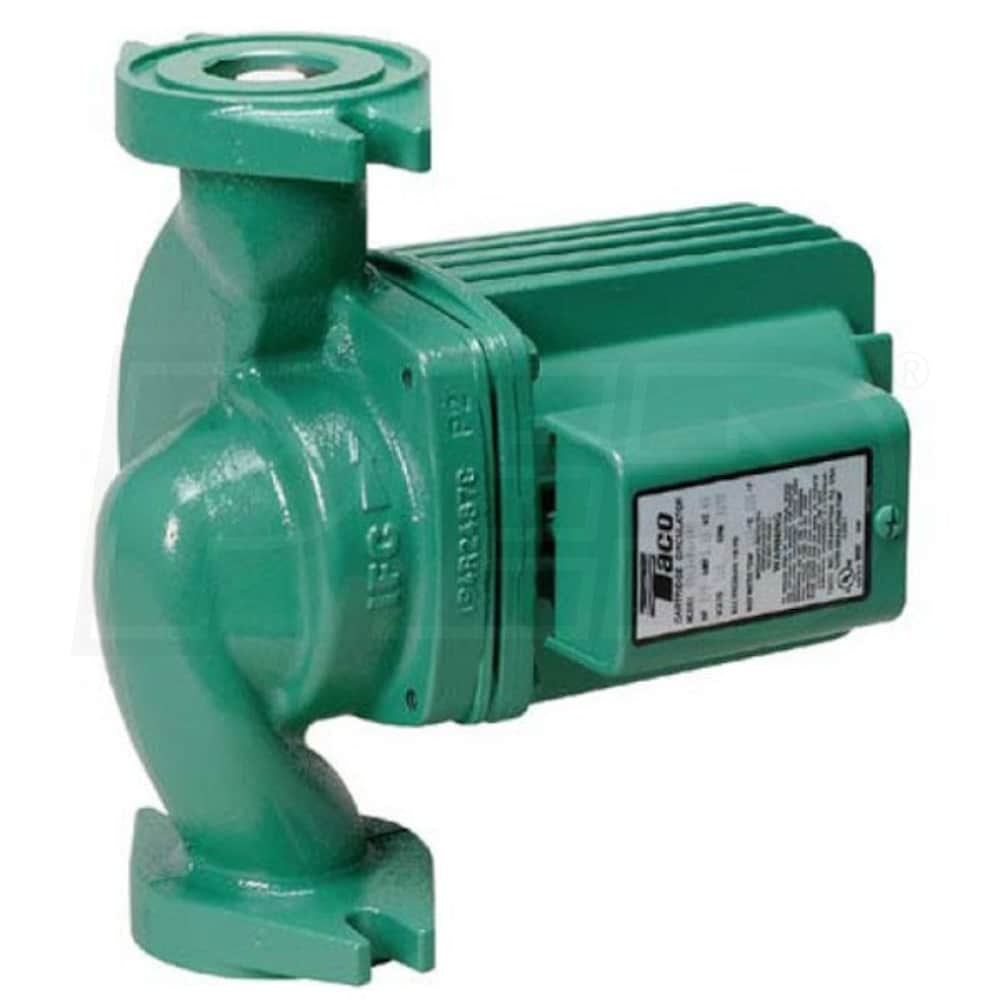

Taco 0011 - 1/8 HP - Zoning Circulator Pump - Cast Iron - Rotated Flange - Integral Flow Check

Model:

0011-ZF4-1IFC

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Taco 0011 - 1/8 HP - Zoning Circulator Pump - Cast Iron - Rotated Flange - Integral Flow Check
Taco 0011 - 1/8 HP - Zoning Circulator Pump - Cast Iron - Rotated Flange - Integral Flow Check
Model: 0011-ZF4-1IFC
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The priority zoning line of Taco circulators brings a PC board mounted switching relay package to the classic "00" series design. The result is a low-maintenance, easy-to-install, and intelligent addition to your hydronic system. The 0011-ZF circulator is built to provide fast, efficient circulation for systems with a high head and moderate flow requirements. Getting proper circulation in furthest corners of large houses is no concern for the 0011-ZF. It also shines in lighter commercial systems. Whether you're dealing with heated or chilled water, the 0011-ZF provides reliable circulation. The universal flange-to-flange dimension of the 0011-ZF makes it quick to install, even if you are replacing a different pump. This circulator includes both low voltage and high voltage terminal strips for easy electrical connections. With Taco, your hydronic circulation is in good hands.
  • Priority Zoning
  • Not all zones are created equal. This circulator includes a priority switch which allows you to designate a primary zone. Circulators will defer to the primary zone's heating demands before responding to other zones.
  • Versatility Through Compatibility
  • Taco designed the priority zoning circulator to fit into any hydronic system regardless of the other equipment present. Zone valves, thermostats, and other circulators are all compatible with this pump, making it a perfect complement to any zoned system.
  • Integral Flow Check
  • By including a removable integral flow check, Taco has improved flow performance and eliminated the need for separate in-line flow checks. All gravity flow prevention is handled by the pump, streamlining your system and reducing installation costs.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • High Flow Radiant
  • Indirect Water Heaters
  • Adding Zones
  • Zoning with Circulators
  • Prioritizing Undersized Zones
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

0011-ZF4-1IFC
specs product image PID-32927
General Information
Type
Circulator
Product Line
0011 Series
Connection Type
Flanged
Material
Cast Iron
Flange Orientation
Rotated
UPC
687752555516
Performance
Maximum Head
31 Feet
Maximum Flow Rate
30 GPM
Maximum Fluid Temperature
230 F
Horsepower
1/8 HP
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.76 Amps
Dimensions
Product Height
6 1/2 Inches
Product Width
5 1/2 Inches
Product Depth
7 1/2 Inches
Product Weight
12 Pounds
Shipping Weight
13 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
