Features
- Maintenance Free
- Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal. In low temperature applications, protection from corrosion is provided by an anti-condensate baffle.
- Replaceable Cartridge Design
- All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
- High Capacity, High Efficiency
- In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
- Typical Product Applications
- Open Loop Systems
- Hydronic Heating
- Radiant Heating
- Chilled Water Cooling
- Large BTU Boilers
- 2" Recirculation Loops
- Primary/Secondary Loops
- Commercial Water Heaters
- Product Includes

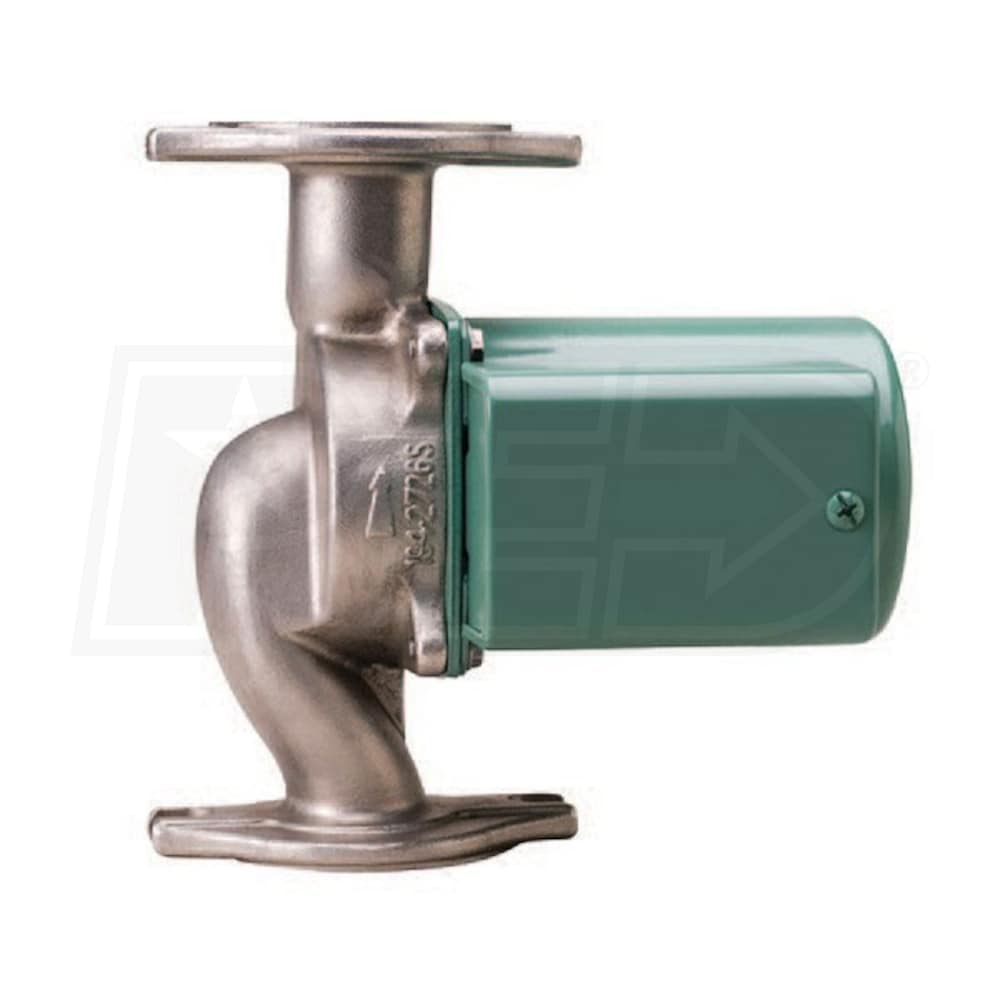

- (1) Taco 0012-SF4 Circulator Pump
- (2) 1-1/2" Flanges
Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. If you want a versatile circulator that can handle medium head applications while maintaining a high flow, you want the Taco 0012-SF. With the highest flow rate in the 00-SF line, this pump is perfect for a variety of light commercial applications. It's also more than capable of handling large scale residential circulation. The universal flange-to-flange dimension of the 0012-SF makes it quick to install, even if you are replacing a different pump. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. The stainless steel construction of this circulator makes it ideal for applications where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
0012-SF4
Overview
Product Category
Boiler Accessories
UPC
687752603798
General Information
Type
Circulator
Product Line
0012 Series
Product Category
Boiler Accessories
Flange Material
Stainless Steel
Motor Type
Single Speed
Connection Type
Flanged
Material
Stainless Steel
Flange Orientation
Standard
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
14.5 Feet
Maximum Flow Rate
52 GPM
Maximum Fluid Temperature
230 F
Horsepower
1/8 HP
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.33 Amps
Dimensions
Product Height
8 1/2 Inches
Product Width
5 1/2 Inches
Product Depth
8 5/8 Inches
Product Weight
13 Pounds
Shipping Weight
13 Pounds
Certifications
UL Listed
Yes
NSF Certified
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
