Features
- Maintenance Free
- Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
- Replaceable Cartridge Design
- All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
- High Capacity, High Efficiency
- In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
- Typical Product Applications
- Hydronic Heating
- Radiant Heating
- Chilled Water Cooling
- Large BTU Boilers
- Primary/Secondary Loops
- Commercial Water Heaters
Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. The 0014-F is a brawny, versatile circulator, designed to handle circulation in the largest homes as well as light commercial environments. An impressive list of potential applications matches well with the well-rounded performance of the 0014-F. Built for medium head applications with modest flow requirements, this circulator is a great fit in nearly any system. The universal flange-to-flange dimension of the 0014-F makes it quick to install, even if you are replacing a different pump. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.
Product Note
Cast iron cannot be used in domestic hot water or potable water applications.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
0014-F1
Overview
Product Category
Boiler Accessories
UPC
687752181593
General Information
Type
Circulator
Product Line
0014 Series
Product Category
Boiler Accessories
Flange Material
Cast Iron
Motor Type
Single Speed
Connection Type
Flanged
Material
Cast Iron
Flange Orientation
Rotated
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
Performance
Maximum Head
22 Feet
Maximum Flow Rate
32 GPM
Maximum Fluid Temperature
230 F
Horsepower
1/8 HP
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.45 Amps
Dimensions
Product Height
6 1/2 Inches
Product Width
5 3/8 Inches
Product Depth
7 1/4 Inches
Product Weight
12 Pounds
Shipping Weight
14 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
(1)
Taco 0014-F1 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Ken, the eComfort Product Expert
How-To Articles
Hydronic System Accessory Guide
How warm does a coat keep you without gloves and a hat? Accessories are sometim...
How to Increase Efficiency and Comfort in Your Boiler
Low energy costs and a comfortable home are the hallmarks of an efficient, effe...
How to Pick the Perfect Hot Water Towel Warmer
Hydronic towel warmers are a great way to take advantage of your existing hot w...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

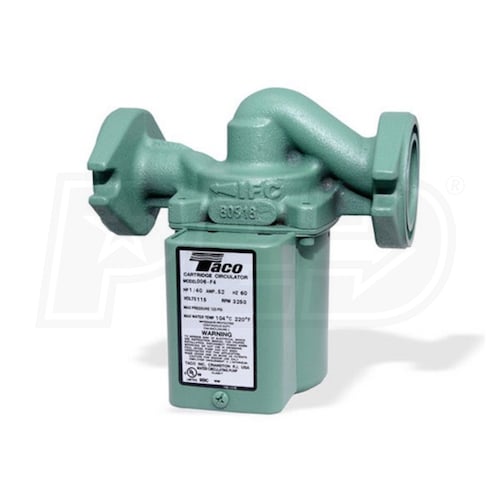

Taco 0014 - 1/8 HP - Circulator Pump - Cast Iron - Rotated Flange
