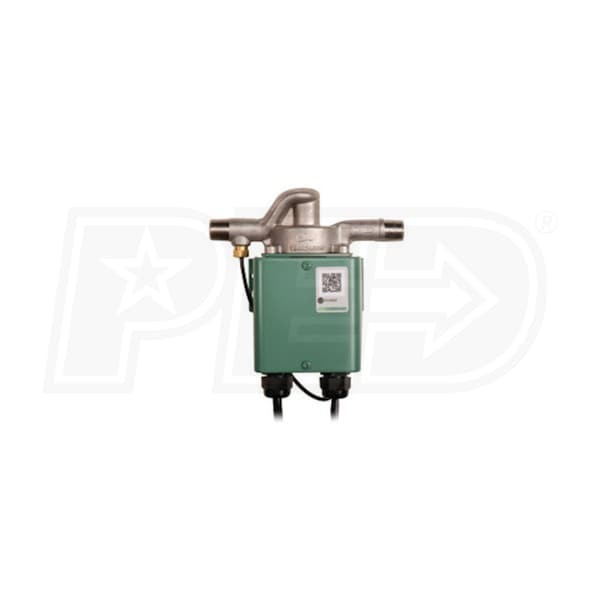

Taco 006 - On Command - 1/40 HP - Circulator Pump - Stainless Steel - 1/2" NPT - Integral Flow Check
Model:
006-CT
+
Share This Product
Features
- No New Piping
- Implementing an On Command recirculation system is quick and easy. On Command uses your current hot and cold water lines for supply and return, simply connect it to these lines and you are ready to go.
- Activates On Command
- With the On Command circulator you will never have to worry about cold water or inefficient recirculation. On Command circulators only run when prompted and the internal temperature sensor prevents unnecessary activation of your heating equipment.
- Maintenance Free
- Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
- Replaceable Cartridge Design
- All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
- Integral Flow Check
- By including a removable integral flow check, Taco has improved flow performance and eliminated the need for separate in-line flow checks. All gravity flow prevention is handled by the pump, streamlining your system and reducing installation costs.
- High Capacity, High Efficiency
- In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
- Typical Product Applications
- Small Homes with Recirculation Piping
- Tank Type Water Heaters
- Product Includes
- (1) Taco 006-CT On Command Circulator Pump
- (1) Hardwired Starter Button
Taco's On Command circulators provide an elegant solution to the problems presented by waiting for hot water. When you run your fixtures to bring water to temperature, you are wasting both water and time. There are timer based solutions to this process, but those can be imprecise and rarely cover every time you need hot water. Constant circulation systems can mean wear and tear on even the most durable circulators. With an On Command, efficient hot water is as simple as pressing a button. Any cold water that does flow down the drain is rerouted back to into your system, providing further savings. Taco estimates that an On Command circulator can save the average household up to 1,000 gallons of water per month. The stainless steel construction of this circulator makes it ideal for DHW applications, where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
006-CT
General Information
Product Line
On Command Series
Control Type
Push Button
Connection Type
NPT
Material
Stainless Steel
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
UPC
687752350456
Performance
Maximum Head
6.25 Feet
Maximum Flow Rate
2.2 GPM
Horsepower
1/40 HP
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Connection Size
1/2 Inch
Product Height
7 Inches
Product Width
5 2/3 Inches
Product Depth
6 15/16 Inches
Shipping Weight
7 Pounds
Certifications
UL Listed
Yes
UPC Listed
Yes
NSF Certified
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
