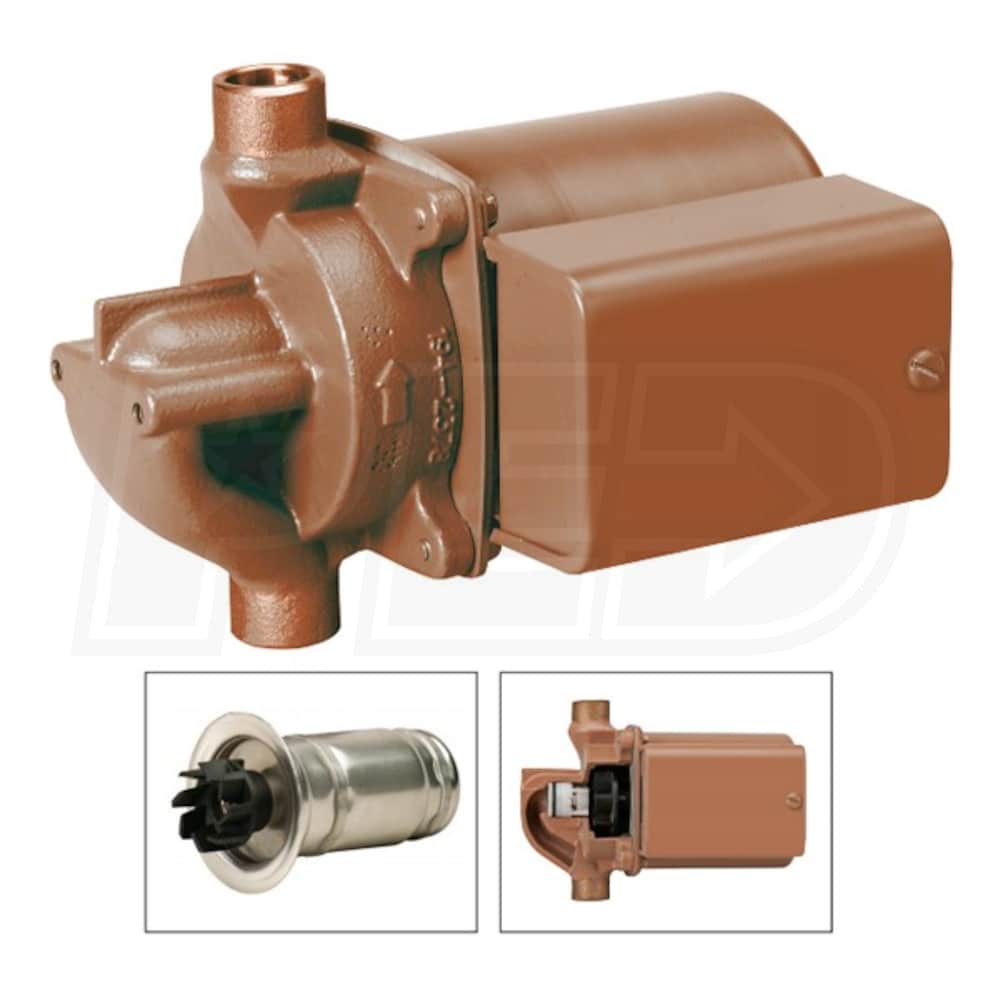

Taco 006 - SmartPlus - 1/40 HP - Hot Water Recirculation Pump - Bronze - With Smart-Pulse Control - 3/4" Sweat

Model:

006-IQB4

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Taco 006 - SmartPlus - 1/40 HP - Hot Water Recirculation Pump - Bronze - With Smart-Pulse Control - 3/4
Taco 006 - SmartPlus - 1/40 HP - Hot Water Recirculation Pump - Bronze - With Smart-Pulse Control - 3/4" Sweat
Model: 006-IQB4
Was $350.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The SmartPlus line of recirculation pumps revolutionizes the way domestic hot water is handled. By providing hot water the moment you need it, the 006-IQ not only makes your home more convenient, it makes it more efficient as well. With a SmartPlus you don't have to watch water you've paid for flow down the drain while waiting for it to reach temperature. Taco estimates that the average household can conserve up to 12,000 gallons of water a year with a SmartPlus circulator. The SmartPlus achieves instant hot water with one of its two operating modes. Pulse mode runs your pump regularly to maintain a comfortable water temperature. Smart mode predicts when you will need domestic hot water, and begins circulation. If you're looking for a new approach to hot water in your home, the 006-IQ will not only make the process more efficient, but more convenient as well. The bronze construction of this circulator makes it ideal for DHW applications, where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
  • Intelligent Usage Monitoring
  • In Smart mode, the SmartPlus will analyze your building's hot water usage patterns. The data gleaned from this process allows the SmartPlus to predict when you will need hot water and preemptively begin circulation.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

006-IQB4
specs product image PID-33186
General Information
Product Line
SmartPlus Series
Control Type
Learning
Connection Type
Sweat
Material
Bronze
UPC
687752724615
Performance
Maximum Head
9.5 Feet
Maximum Flow Rate
11.5 GPM
Horsepower
1/40 HP
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.52 Amps
Dimensions
Connection Size
3/4 Inch
Product Height
6 1/2 Inches
Product Width
3 3/4 Inches
Product Depth
6 Inches
Product Weight
7 Pounds
Shipping Weight
6 Pounds
Certifications
UL Listed
Yes
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
