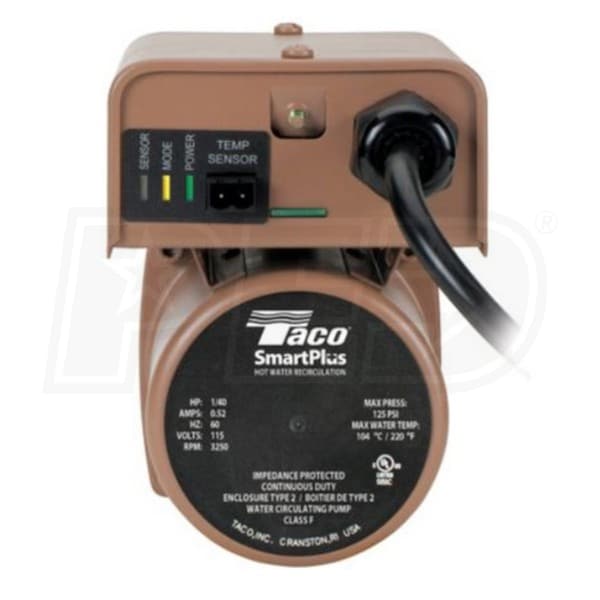

Taco 006 - SmartPlus - 1/40 HP - Hot Water Recirculation Pump - Bronze - With Smart-Pulse Control - 1/2" Sweat - Integral Flow Check
Model:
006-IQBC7-1IFC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
1
Model: SP115-1
$138.82
Only 1 In-Stock
Features
- Intelligent Usage Monitoring
- In Smart mode, the SmartPlus will analyze your building's hot water usage patterns. The data gleaned from this process allows the SmartPlus to predict when you will need hot water and preemptively begin circulation.
- Maintenance Free
- Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.

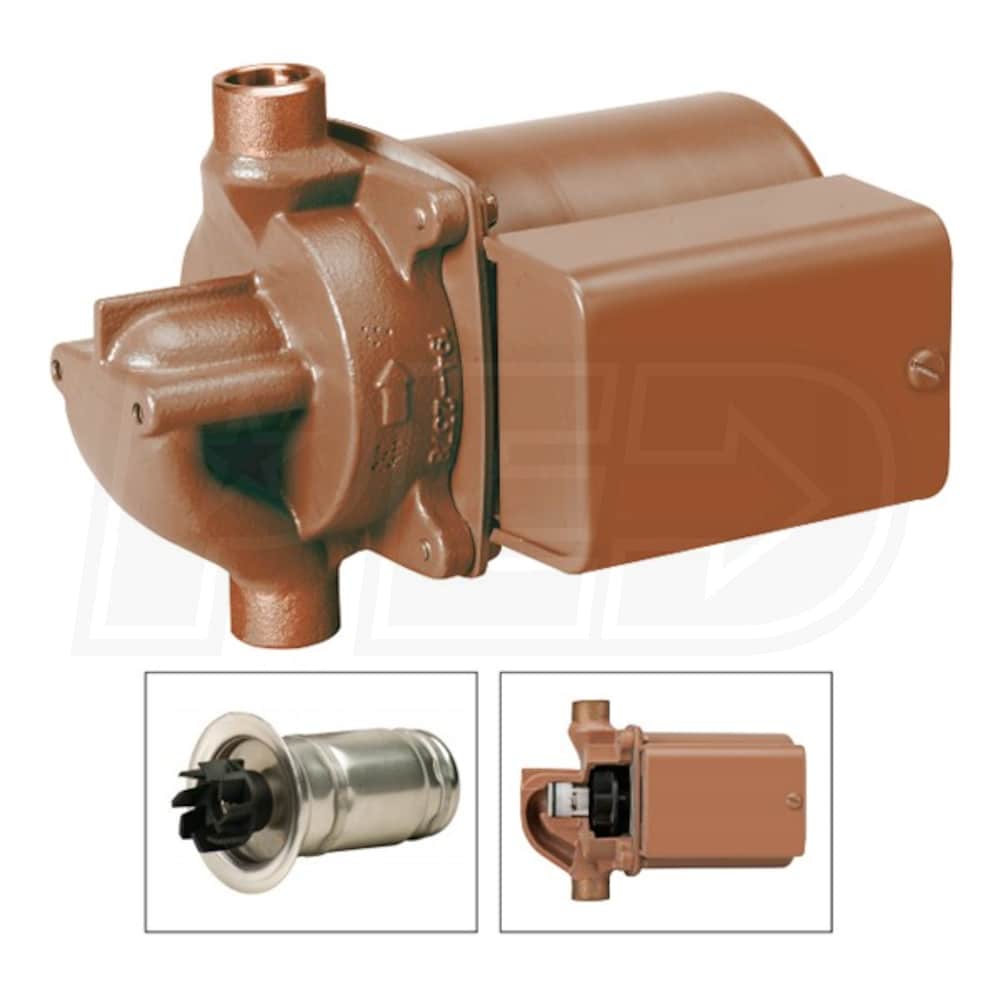

- Replaceable Cartridge Design
- All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
- Integral Flow Check
- By including a removable integral flow check, Taco has improved flow performance and eliminated the need for separate in-line flow checks. All gravity flow prevention is handled by the pump, streamlining your system and reducing installation costs.
- High Capacity, High Efficiency
- In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
The SmartPlus line of recirculation pumps revolutionizes the way domestic hot water is handled. By providing hot water the moment you need it, the 006-IQ not only makes your home more convenient, it makes it more efficient as well. With a SmartPlus you don't have to watch water you've paid for flow down the drain while waiting for it to reach temperature. Taco estimates that the average household can conserve up to 12,000 gallons of water a year with a SmartPlus circulator. The SmartPlus achieves instant hot water with one of its two operating modes. Pulse mode runs your pump regularly to maintain a comfortable water temperature. Smart mode predicts when you will need domestic hot water, and begins circulation. If you're looking for a new approach to hot water in your home, the 006-IQ will not only make the process more efficient, but more convenient as well. The bronze construction of this circulator makes it ideal for DHW applications, where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
006-IQBC7-1IFC
General Information
Product Line
SmartPlus Series
Control Type
Learning
Connection Type
Sweat
Material
Bronze
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
UPC
687752046533
Performance
Maximum Head
8.5 Feet
Maximum Flow Rate
9 GPM
Horsepower
1/40 HP
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.52 Amps
Dimensions
Connection Size
1/2 Inch
Product Height
6 1/2 Inches
Product Width
3 3/4 Inches
Product Depth
6 Inches
Product Weight
7 Pounds
Shipping Weight
6 Pounds
Certifications
UL Listed
Yes
NSF Certified
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
(3)
Taco 006-IQBC7-1IFC Reviews & Ratings
Wonderful idea to keep house hot water hot
By Dean N
Marco Island, Florida
Purchased 01/21/2019 |
Review Posted 02/14/2019
This product fills a need to keep water hot in the home piping system. It determines usage times and runs the pump to purge the cold water lying in the house pipes so it's hot when you want it hot.
Energy savings is not known yet certainly running the hot water through the house plumbing when not in use will increase power consumption. This system will be much better than continuously running the pump.
Energy savings is not known yet certainly running the hot water through the house plumbing when not in use will increase power consumption. This system will be much better than continuously running the pump.
Dean N Recommends This
Was this review helpful?
Rating Breakdown
3/5
5/5
3/5
4/5
Smart Plus HW Recirculator
By Gary K.
Hummelstown, Pennsylvania
Purchased 09/24/2017 |
Review Posted 10/24/2017
Clear, easy to understand installation instructions. Installed with no problems.
Gary K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Pros:
Easy To Use, Quiet, Price, I'd Buy It Again
Taco 006 SmartPlus
By Steve L.
Elkhorn, Nebraska
Purchased 06/11/2016 |
Review Posted 09/14/2016
It took 100 seconds to get warm water to bathroom sink. Sink was full, water just warm from the faucet. After installing SmartPlus, hot water in under 10 seconds.
Steve L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
