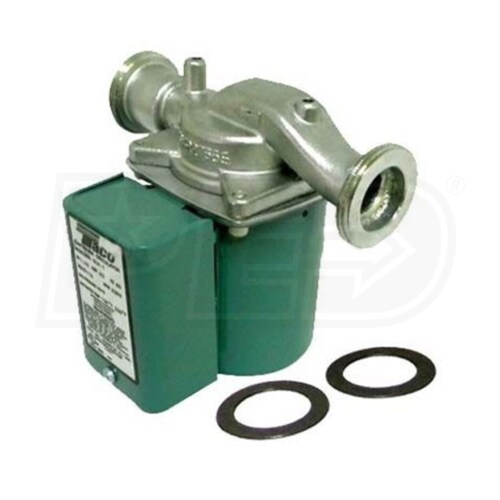

Taco 006 - 1/40 HP - Circulator Pump - Stainless Steel - Union - Integral Flow Check
Model:
006-SC7-IFC
+
Share This Product
Features
- Maintenance Free
- Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
- Replaceable Cartridge Design
- All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
- High Capacity, High Efficiency
- In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
- Integral Flow Check
- By including an integral flow check, Taco has improved flow performance and eliminated the need for separate in-line flow checks. All gravity flow prevention is handled by the pump, streamlining your system and reducing installation costs.
- Typical Product Applications
- Domestic Hot Water Recirculation
- Hydro-Air Fan Coils
- Heat Recovery Units
- Water Source Heat Pumps
- Potable Water Systems
Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. The 006-S is an incredibly well-rounded circulator. It excels in both open loop and closed loop systems and is capable of handling a number of chilling or heating applications. The stainless steel construction of this circulator makes it ideal for applications where corrosion resistance is important. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
006-SC7-IFC
General Information
Type
Circulator
Product Line
006 Series
Flange Material
Stainless Steel
Motor Type
Single Speed
Connection Type
Union
Material
Stainless Steel
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
UPC
687752931716
Performance
Maximum Head
8.5 Feet
Maximum Flow Rate
9 GPM
Maximum Fluid Temperature
220 F
Horsepower
1/40 HP
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.52 Amps
Dimensions
Product Height
5 5/16 Inches
Product Width
3 15/16 Inches
Product Depth
6 Inches
Product Weight
6 Pounds
Shipping Weight
6 Pounds
Certifications
UL Listed
Yes
NSF Certified
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
