Features
- Maintenance Free
- Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
- Replaceable Cartridge Design
- All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
- High Capacity, High Efficiency
- In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
- Typical Product Applications
- Hydronic Heating
- Domestic Hot Water Recirculation
- Hydro-Air Heating and Cooling
- Heat Recovery Units
- Water Source Heat Pumps
- Drain Down Open Loop Solar Systems
- Potable Water Systems
Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. The 006-S is an incredibly well-rounded circulator. It excels in both open loop and closed loop systems and is capable of handling a number of chilling or heating applications. The stainless steel construction of this circulator makes it ideal for applications where corrosion resistance is important. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
006-ST4
Overview
Product Category
Boiler Accessories
UPC
687752589085
General Information
Type
Circulator
Product Line
006 Series
Product Category
Boiler Accessories
Motor Type
Single Speed
Connection Type
NPT
Material
Stainless Steel
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
9 Feet
Maximum Flow Rate
10 GPM
Maximum Fluid Temperature
230 F
Horsepower
1/40 HP
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.52 Amps
Dimensions
Connection Size
3/4 Inch
Product Height
6 3/8 Inches
Product Width
4 7/8 Inches
Product Depth
6 1/4 Inches
Product Weight
7 Pounds
Shipping Weight
6 Pounds
Certifications
UL Listed
Yes
NSF Certified
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
(3)
Taco 006-ST4 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Ken, the eComfort Product Expert
I need to replace/repair a Model 006-BC4. Can I order a cartridge or do I need to order the whole pump?
Clay
from Idaho
October 27, 2015
How-To Articles
Hydronic System Accessory Guide
How warm does a coat keep you without gloves and a hat? Accessories are sometim...
How to Increase Efficiency and Comfort in Your Boiler
Low energy costs and a comfortable home are the hallmarks of an efficient, effe...
How to Pick the Perfect Hot Water Towel Warmer
Hydronic towel warmers are a great way to take advantage of your existing hot w...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

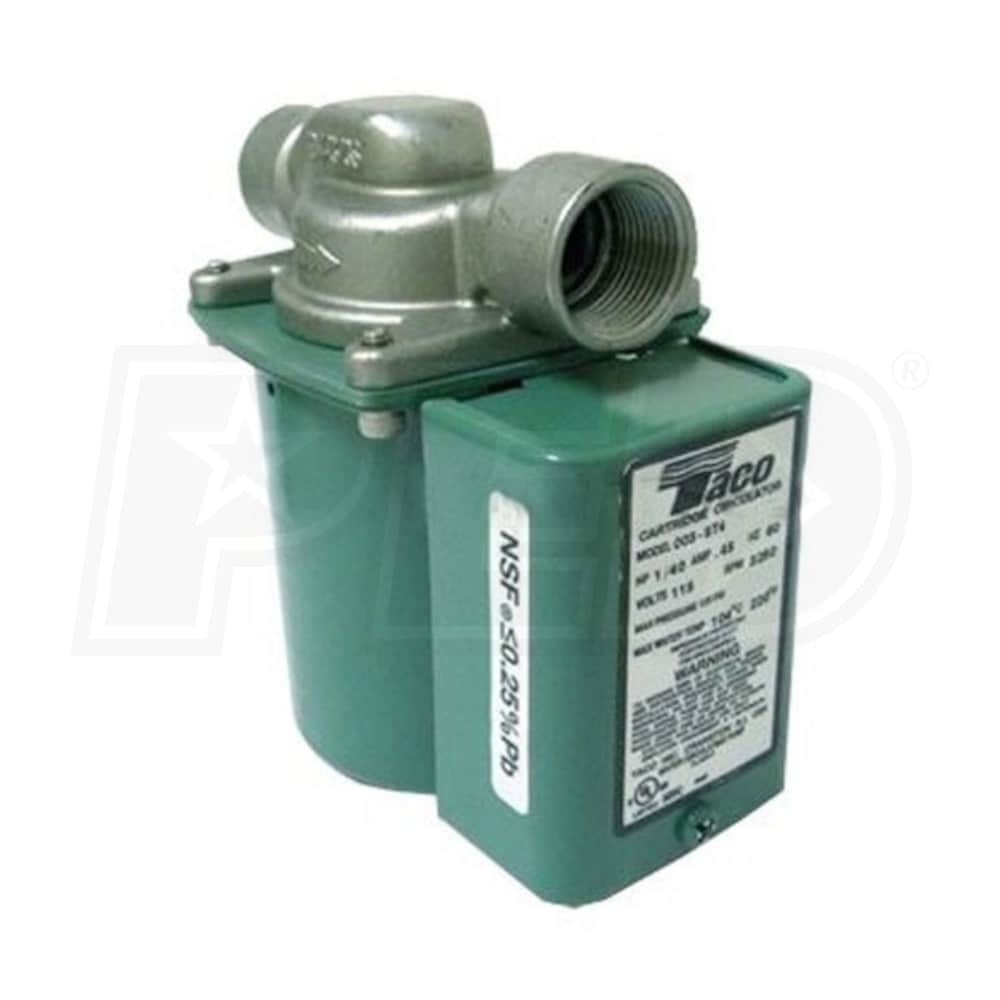

Taco 006 - 1/40 HP - Circulator Pump - Stainless Steel - 3/4" NPT
