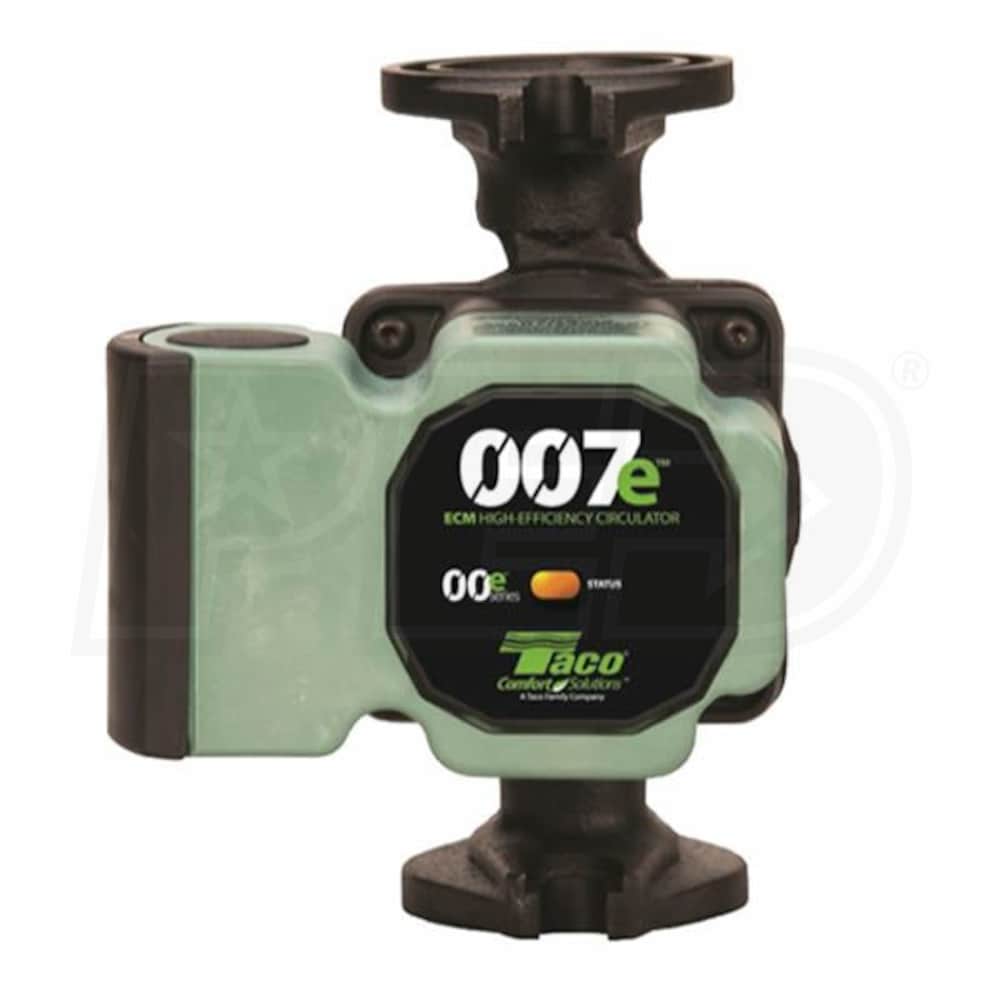

Taco 007e™ - Variable Speed ECM Circulator Pump - Cast Iron - Standard Flange

Model:

007e-2F2

Write A Review
$205.20
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Dec 19th
Shipping to60601
synchrony card logo
$35 / Month
Suggested monthly payments with 6 month financing.
Taco 007e™ - Variable Speed ECM Circulator Pump - Cast Iron - Standard Flange
Taco 007e™ - Variable Speed ECM Circulator Pump - Cast Iron - Standard Flange
Model: 007e-2F2
$205.20
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. The Taco 007e™ takes the renown 007 circulator and adds a high-efficiency, variable speed ECM permanent magnet motor. Ideal for hydronic systems zoned with circulators or zone valves, the 007e™ provides the same performance as the original 007 while using up to 85% less electricity. The 007e™ features BIO Barrier® technology to protect the pump from system contaminants and an integrated SureStart™ system for automatic unblocking and air purging. Take efficiency and reliability to a whole new level with the Taco 007e™ ECM circulation pump.
  • High Efficiency
  • The Taco 007e™ includes an efficient ECM permanent magnet motor that uses up to 85% less electricity than most standard pumps, allowing you to potentially save hundreds in energy costs.
  • Reliable Operation
  • The 007e™ features Taco's BIO Barrier® that protects the pump from system contaminants, a SureStart™ setting that automatically unblocks and purges air in your system, and an integral flow check to prevent backflow.
  • Easy Wiring
  • With dual knockouts and 6" stranded wire leads, the 007e™ is designed for simple installation.The pump is also double insulated, negating the need for a ground wire.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

007e-2F2
specs product image PID-102947
General Information
Type
Circulator
Product Line
007 Series
Flange Material
Cast Iron
Motor Type
Variable Speed
Connection Type
Flanged
Material
Cast Iron
Flange Orientation
Standard
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
UPC
190145175647
Additional Model Numbers

007E-2F2, 007e-2F2

Performance
Maximum Head
10 Feet
Maximum Flow Rate
16 GPM
Minimum Fluid Temperature
36 F
Maximum Fluid Temperature
230 F
Maximum Operating Pressure
125 PSI
RPM
4830 RPM
Electrical Data
Voltage
120 Volts
Power Consumption
44 Watts
Phase
1
Frequency
60 Hz
Current Draw
0.54 Amps
Dimensions
Product Height
6 3/8 Inches
Product Width
5 Inches
Product Depth
6 Inches
Shipping Weight
5.8 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
