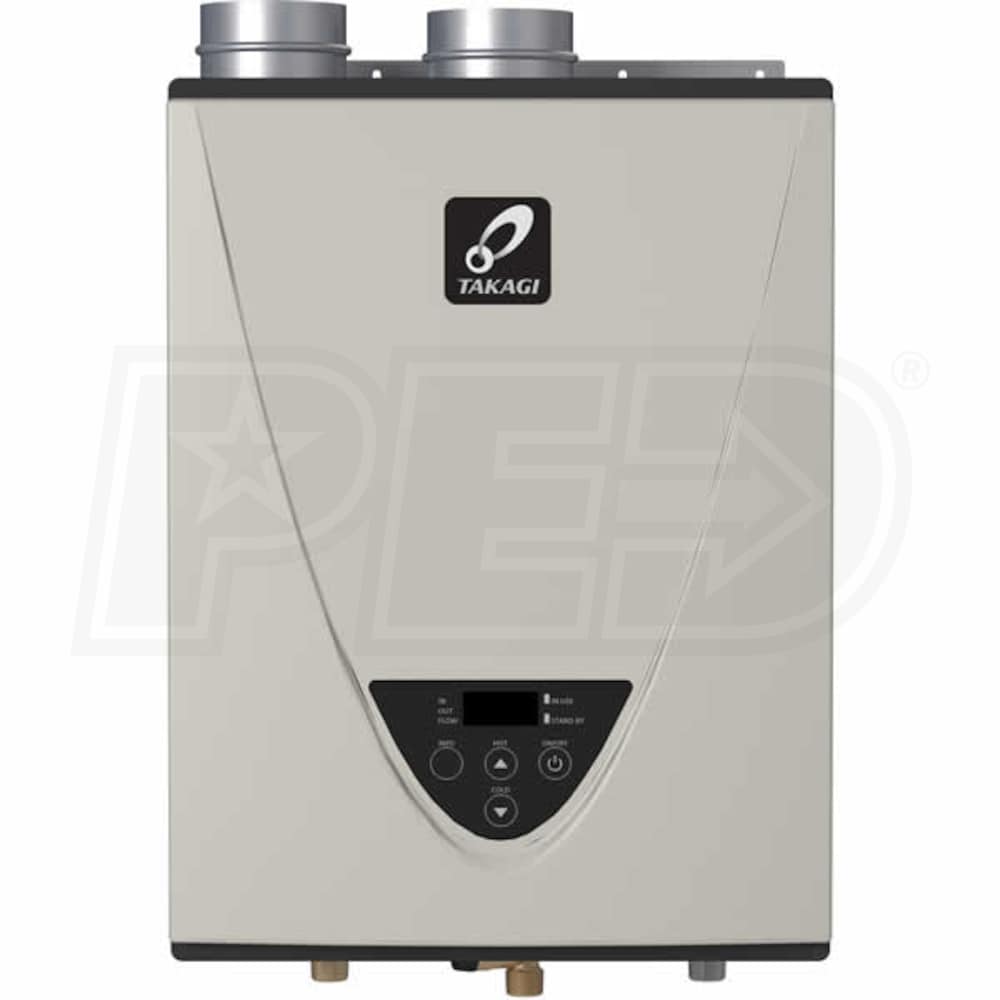

Takagi T-H3J - Residential 160,000 BTU - Liquid Propane Tankless Water Heater - Indoor

Model:

T-H3J-DV-P

Write A Review
$985.95
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Oct 31st
Shipping to60601
synchrony card logo
$165 / Month
Suggested monthly payments with 6 month financing.
Takagi T-H3J - Residential 160,000 BTU - Liquid Propane Tankless Water Heater - Indoor
Takagi T-H3J - Residential 160,000 BTU - Liquid Propane Tankless Water Heater - Indoor
Model: T-H3J-DV-P
$985.95
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Fuel

Liquid Propane

Location

Indoor

# of Showers

2.4

UEF

0.94

Energy Star Certification

Yes

    Takagi has been delivering innovative residential and commercial hot water solutions for over 60 years. Their line of tankless water heaters are unmatched in quality and diversity, providing the perfect hot water solution for any situation. The T-H3J-DV-P is part of Takagi's high efficiency condensing line of water heaters. Condensing technology paired with an Ultra-Low NOx standard gives the T-H3J-DV-P a top of the line .94 Uniform Energy Factor, making this one of the most efficient heaters on the market. With an included control the T-H3J-DV-P is the perfect answer to all your hot water problems.
  • High Efficiency Condensing Technology
  • The T-H3J-DV-P features the latest in water heating condensing technology. This means that the unit can deliver some of the highest efficiency standards on the market, keeping dollars in your pocket.
  • Ultra-Low NOx Emissions
  • The T-H3J-DV-P is designed to qualify for the most stringent Low NOx standards. This includes SCAQMD standards and other air quality management districts meant to limit pollution in the southwest United States.
  • Dual Heat Exchangers
  • The primary exchanger is made of commercial-grade HRS35 copper, designed to be more resilient against corrosion. The backup is made of stainless steel, also designed to protect against corrosion.
  • Multiple Safety Features
  • T-H3J models come with a long list of safety features standard. These include: an air-fuel ratio sensor, exhaust and water temperature safety controls, an overheat cut-off fuse, and an internal freeze protection system.
  • Installation and Control Options
  • All T-H3J-DV units also come with a built-in temperature control and advanced diagnostics to simplify troubleshooting.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

T-H3J-DV-P
specs product image PID-77962
Overview
Product Category
Water Heater - Tankless
UPC
671657141974
General Information
Type
Tankless Water Heater
Product Category
Water Heater - Tankless
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Copper/Stainless
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Venting Category Learn More
Venting Category
Venting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel
IV
Storage Type
Tankless
Application
Residential
Mount Type
Wall
Installation Location
Indoor
Maximum Altitude
10100 Feet
Includes Pump
No
Gas Conversion Kit
Not Available
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
160000 BTU
Minimum Input Capacity
13000 BTU
Flow Rate at 40F Temperature Rise Learn More
Flow Rate at 40F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.7 GPM
Flow Rate at 50F Temperature Rise Learn More
Flow Rate at 50F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.1 GPM
Flow Rate at 60F Temperature Rise Learn More
Flow Rate at 60F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.0 GPM
Flow Rate at 70F Temperature Rise Learn More
Flow Rate at 70F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
4.3 GPM
Uniform Energy Factor Learn More
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.94
Minimum Flow Rate
0.5 GPM
Flow Rate at 77F Temperature Rise
4.1 GPM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Primary Vent Pipe Diameter
4 Inches
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
22 1/2 Inches
Product Width
17 3/4 Inches
Product Depth
10 3/4 Inches
Product Weight
71 Pounds
Certifications
CSA Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
15 Years

Reviews

(36)
Takagi T-H3J-DV-P Reviews & Ratings

Product Q&A

Expert avatar photo
Be the First to Ask A Question Answered by Ken, the eComfort Product Expert

How-To Articles

What Size Tankless Water Heater Do I Need
What Size Tankless Water Heater Do I Need
Size matters when it comes to your tankless water heater. In fact, it is t...
Signs You Need a New Water Heater
Signs You Need a New Water Heater
You’ve heard the stories. A 60-gallon hot water heater tank ruptures, flo...
How to Pick the Perfect Tankless Water Heater
How to Pick the Perfect Tankless Water Heater
Imagine an unlimited supply of hot water. That's the tankless promise.  Mo...
eComfort How-To Library
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery
Takagi T-H3J - Residential 160,000 BTU - Liquid Propane Tankless Water Heater - Indoor
Takagi T-H3J-DV-P

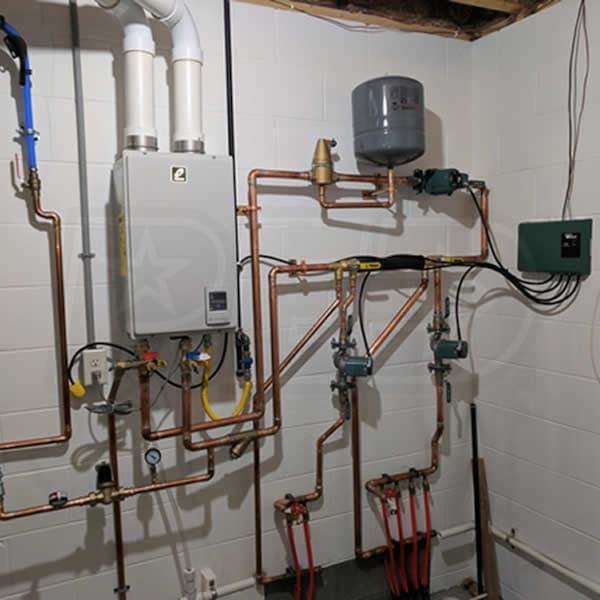

Customer Review Images
