Features
- Intelligent Control
- The tekmar 256 monitors the outdoor temperature and the water temperature at a point in your system. Using this information, it is able to determine the most appropriate supply temperature and boiler firing rate.
- By constantly monitoring conditions and making continuous adjustments, the tekmar 256 delivers unparalleled comfort and efficiency.
- Setback Period
- This control allows you to designate a setback period when your home or business is unoccupied, reducing the water temperature to limit energy waste.
- Warm Weather Shutdown
- A warm weather shut down temperature may be programmed to prevent your system from running when it in unnecessary or untenable.
- Automates Boiler Differential
- The tekmar 256 can automatically adjust your boiler differential to discourage short cycling.
- Product Includes
- (1) tekmar 256 Boiler Control
- (1) tekmar 071 Universal Sensor
- (1) tekmar 070 Outdoor Sensor
For nearly three decades, tekmar has been providing zoning and control solutions for a variety of heating and cooling applications. Products made by tekmar can improve the efficiency and comfort delivered by almost any system. The tekmar 256 Boiler Control allows you to manage the heating water temperature of an on/off boiler in a hydronic system. This control possesses several energy saving features, including outdoor temperature reset, to make your system more economical.
Specifications
256
Overview
Product Category
Thermostats and Controls
General Information
Product Category
Thermostats and Controls
Stages
Single-Stage
Voltage Type
Low-Voltage
Interface
Buttons
Dimensions
Product Height
4 3/4 Inches
Product Width
2 7/8 Inches
Product Depth
7/8 Inch
Product Weight
1.3 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
(5)
Tekmar 256 Reviews & Ratings
Works like a charm. Great for DIYers.
By Glenn B
Blue Point, New York
Purchased 12/30/2018 |
Review Posted 01/21/2019
I am not an HVAC person, just a homeowner. I bought this to improve the efficiency of my older cast iron gas fired boiler. I installed it myself, and it was easy thanks to the clear instructions. I like that the display on the controller lets you see the outside temperature, the target boil temperature, and actual boil (water) temperature. This allows you to see just what it’s doing regarding changes based on outside temperature and heat load. So I can literally see that it’s doing what it is supposed to do.
Glenn B Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, Easy To Use, Price, I'd Buy It Again
By
IL
Review Posted 10/03/2011
Shipping was excellent! Got it in 2 days. Installed with Aquastat L8148E and 4 V8043 zone controllers. Easy install. Also bought Tekmar 003 relay for the circulator. Installed in less than an hour. Had to use a couple days now and works great. Temp went to 150F and shut the boiler off (call for heat was still on so the circulator kept pumping) and then kicked on again at 130F. Works like it should. Will play around with settings more at some point. But so far it's great! Would recommend in a second.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
By David M.
IL
Review Posted 12/21/2009
easy to install but not so easy to understand the workings of the unit. instructions were not very detailed. I have the unit installed and it appears it is working but it does not override my boiler thermostat so my boiler is still in charge.
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
By Neil S.
IL
Review Posted 12/29/2008
Unit was straightforward to install. The installation and operating instructions were very comprehensive. My only surprise was that I needed to provide my own source of 24V power. which was not available on my boiler. I bought a Taco 24V transformer from my local HVAC parts house. After installation of the Takmar 256 I immediately noticed the elimination of the short cycling that I had previously experienced. The unit has only been in operation for a few days now so I don't have any experience with the changes in comfort level over a range of outside temperatures or the fuel savings that might result from this unit. Very satisified so far.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
By Maciej Kawalkowski
IL
Review Posted 10/23/2008
This device is much smaller than I thought. I had and existing setup with 3 zone and DHW. I was worried about 256 not having the DHW input to change the boiler temperature but the supplied doocumentation explained how to connect everythinng in many situations including mine. I had everything hooked up and working within an hour and I am happpy with the 256 operation. Works great as a temerature rest and thats what I wanted. Know you can see the outside temperature and the boiler temperature on the display. Overall this product is very good for the price .If you allready have zone control relays and a 24 V transformer than all you will need is some time tools and a little bit of control wire to connect everything together. Very good product and seems to be made of quality material. I hope I see some savings in fuel usage.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
How-To Articles
An Intro to Tekmar Controls
Getting the most out your hydronic heating system can be difficult. Luckily, Te...
Mini Split HVAC Thermostats and Controls
If you're buying a ductless mini split system, then you appreciate the quiet, e...
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Bestselling Thermostats & Controls
Currently Viewing

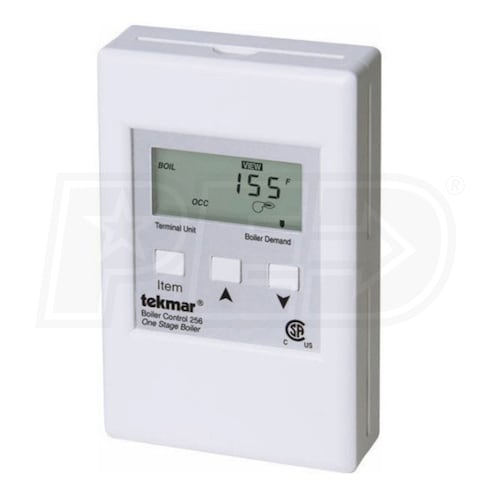

Tekmar 256 Boiler Control Outdoor Temp Reset One Stage
