Tekmar 324
Tekmar 324
Hover to zoom
1 Of 5

Tekmar 324 - Zone Expansion Module - tN2/tN4 Compatible - Four Zones - Cooling and Fan

Model:

324

Write A Review
$427.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$72 / Month
Suggested monthly payments with 6 month financing.
Tekmar 324 - Zone Expansion Module - tN2/tN4 Compatible - Four Zones - Cooling and Fan
Tekmar 324 - Zone Expansion Module - tN2/tN4 Compatible - Four Zones - Cooling and Fan
Model: 324
$427.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

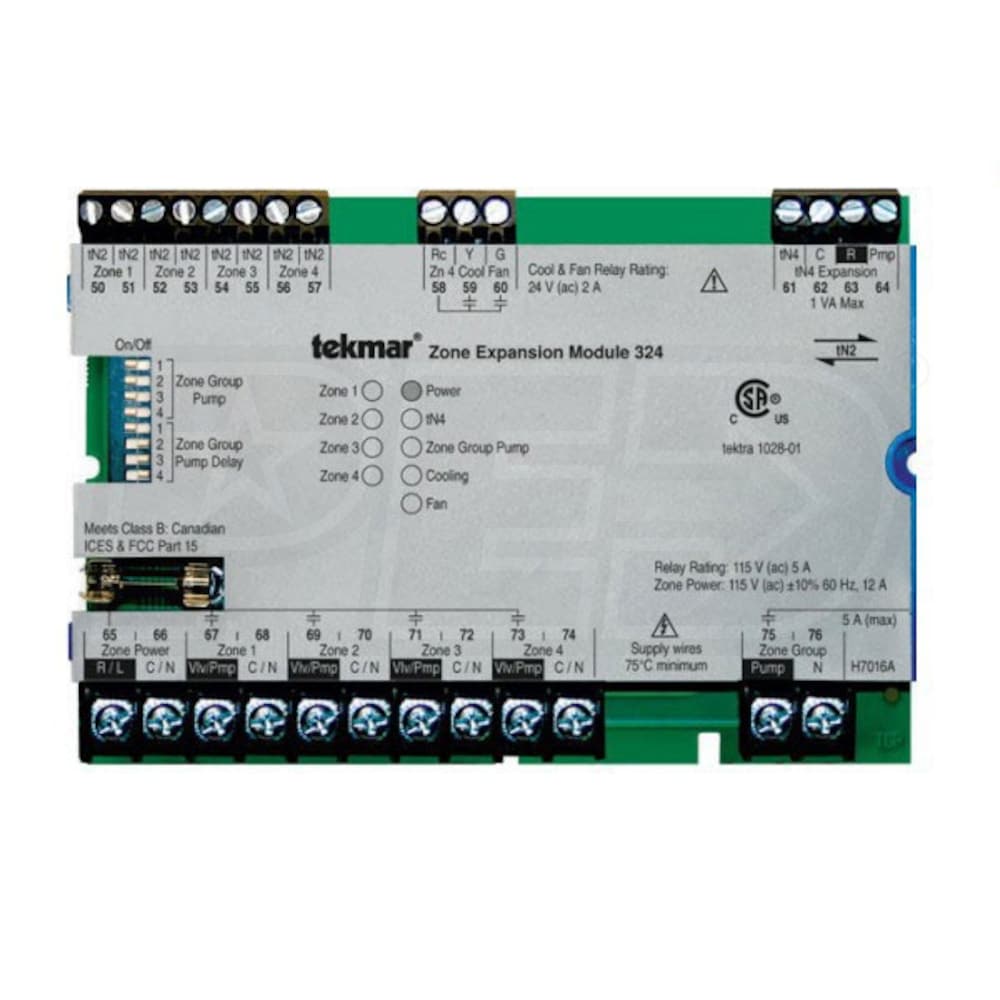

    For nearly three decades, tekmar has been providing zoning and control solutions for a variety of heating and cooling applications. Products made by tekmar can improve the efficiency and comfort delivered by almost any system. The 324 Zone Expansion Module is a tekmarNet 2 control used with a tekmar Zone Manager to increase the number of zones in your HVAC system by four, including a zone with cooling capabilities. It provides power and connectivity to four tekmarNet 2 thermostats and enables you to use tN2 thermostats on a tN4 network. This module powers and controls as many as four zone valves or zone pumps in addition to a zone group pump. The tekmar 324 is ideal for situations where you want to expand your system without sacrificing connectivity.
  • tekmarNet 4 Expansion
  • The tekmar 324 Zone Expansion Module contains an expansion terminal, which allows you to add a tekmarNet 4 control into your communication system. Find the perfect configuration to maximize your efficiency and comfort.
  • Product Note
    This control must be mounted within a tekmarNet Zone or Power Manager for power. It does not include an enclosure. The 324 Zone Expansion Module is meant to be used with tekmarNet 2 thermostats. A tekmarNet 4 thermostat may only be added to the expansion terminal.

Specifications

324
specs product image PID-32492
Overview
Product Category
Thermostats and Controls
General Information
Product Category
Thermostats and Controls
Voltage Type
Line-Voltage
Electrical Data
Maximum Load
5 Amps
Dimensions
Product Height
3 5/8 Inches
Product Width
5 3/8 Inches
Product Depth
9/16 Inch
Product Weight
4.9 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
