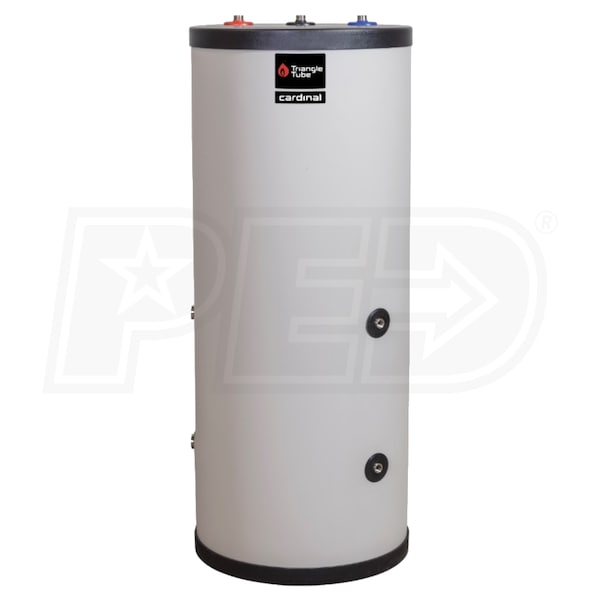

Triangle Tube CARDINAL120 - 118 Gallon - Residential Indirect Water Heater

Model:

CARDINAL120

Write A Review
$3,379.04
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 22nd
Shipping to60601
synchrony card logo
$60 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Triangle Tube CARDINAL120 - 118 Gallon - Residential Indirect Water Heater
Triangle Tube CARDINAL120 - 118 Gallon - Residential Indirect Water Heater
Model: CARDINAL120
$3,379.04
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Triangle Tube is best known for feats of hydronic innovation and incredibly efficient products. Introducing the latest product innovation from Triangle Tube, the Cardinal Indirect Water Heater. Available in several sizes, the stainless steel indirect water heater provides ample hot water. With features like a stainless steel coil, domestic hot water and cold water connections on top, factory included temperature and pressure valve, 1/2" drain valve and an aquastat, the Triangle Tube Cardinal is a breeze to install. The Triangle Tube Cardinal Indirect Water Heater has an industry-leading warranty, giving you piece-of-mind on your purchase.
  • Stainless Steel Construction
  • With 316L stainless steel construction, the Triangle Tube Cardinal Indirect Water Heater is ideal for high temperature applications.
  • Efficiency-Boosting Insulation
  • Two inches of CFC (chlorofluorocarbon) free foam insulation in the Triangle Tube Cardinal helps to discourage heat loss, resulting in improved efficiency.
  • Fully Welded Construction
  • The fully welded and acid pickled (passivated) construction of the Cardinal protects against corrosive water conditions.
  • Extended Warranty
  • Triangle Tube offers two levels of extended warranties for Cardinal Water Indirect Heaters - up to 6 years for parts and 3 years for labor. Please see the Warranty Brochure under the Manuals tab for more information.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CARDINAL120
specs product image PID-153305
General Information
Type
Indirect Water Heater
Product Line
Cardinal
Product Category
Water Heater - Indirect-Fired
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Application
Residential
Capacity
118.9 Gallons
Performance
Minimum Input Capacity
257000 BTU
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
505 Gallons
Continuous Recovery Rate
403 Gallons
Dimensions
Cold Water Inlet
1 Inch
Hot Water Outlet
1 Inch
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
63 1/2 Inches
Product Width
32 Inches
Product Depth
32 Inches
Product Weight
174 Pounds
Shipping Weight
208 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
213927976
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Vessel Warranty
Lifetime Years
